Small green circuit board M.2 2242 SSD with black chips and gold edge connector

Dogfish Technology

Dogfish Technology 2242-1TB M.2 2242 1TB internal SSD

SKU CH-SM7Z-KAA2Q

M.2 2242 form factor fits tight laptop slots, delivers 1TB capacity via SATA with 570 MBps read and 500 MBps write speeds

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2242
  • Capacity1TB
  • Memory Components3D NAND QLC
  • InterfaceSATA III

Options 1TB M.2 2242

  • 1 TB capacity in the compact M.2 2242 form factor
  • Sequential read up to 570 MB/s for fast boot and app load
  • Sequential write up to 500 MB/s for responsive file saves
  • 3D NAND QLC with SMI controller rated at 1,000,000 hours MTBF
  • Operates from 0 °C to 75 °C with no moving parts for silent running

Compact M.2 2242 SATA drive for space-limited

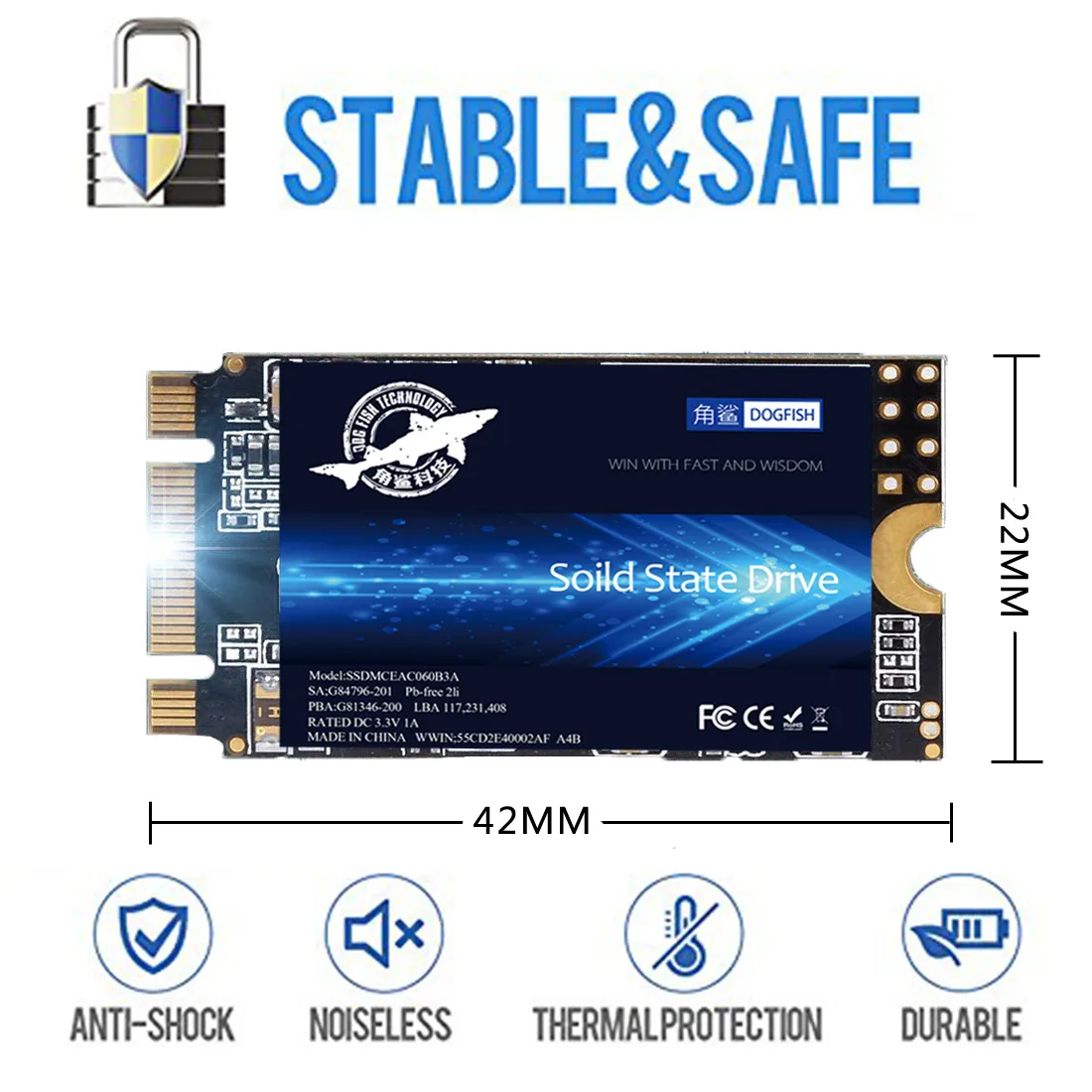

This 1 TB internal SSD uses the M.2 2242 form factor and a SATA III interface to deliver solid-state storage in a 22 mm by 42 mm footprint. It is built with 3D NAND QLC memory and an SMI controller for everyday computing workloads. The drive suits ultra-thin laptops, small-form-factor desktops and embedded boards that cannot accept longer modules.

Verify slot length and interface before purchase

Confirm the host device has an M.2 socket that accepts 42 mm modules and is wired for SATA signalling rather than PCIe. Check the motherboard or laptop manual for keying type and maximum supported capacity. Ensure the BIOS or UEFI firmware recognises SATA SSDs in the M.2 slot and that no physical obstruction blocks the 3.2 mm module height.

Steady throughput under continuous workloads

Sustained sequential reads reach 570 MB/s and writes reach 500 MB/s when transferring large files over extended periods. The 3D NAND QLC architecture and SMI controller maintain consistent performance without thermal throttling within the 0 °C to 75 °C operating range. MTBF is rated at 1,000,000 hours for long-term reliability.

Highlights

  • 1 TB capacity in the compact M.2 2242 form factor
  • Sequential read up to 570 MB/s for fast boot and app load
  • Sequential write up to 500 MB/s for responsive file saves
  • 3D NAND QLC with SMI controller rated at 1,000,000 hours MTBF
  • Operates from 0 °C to 75 °C with no moving parts for silent running

Specifications

BrandTHREE COLOUR DOGFISH
Series2242-1TB
Model2242-1TB
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2242
Capacity1TB
Memory Components3D NAND QLC
InterfaceSATA III
ControllerSMI
Max Sequential ReadUp to 570 MBps
Max Sequential WriteUp to 500 MBps
MTBF1,000,000 hours
Operating Temperature0°C ~ +75°C
Storage Temperature-45°C ~ +85°C
Operating Humidity0% ~ 95%
Height42MM
Width22mm
Depth3.2mm
Weight0.05g

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the Dogfish 2242-1TB come with a mounting screw or heatsink, or do I need to buy them separately?

The drive is supplied as a bare M.2 2242 module. Most laptops and desktops include the single M2 screw; if yours is missing you will need to source one separately. No heatsink is required or included for this SATA III model.

The spec sheet lists 3D NAND QLC and a SMI controller — how do those affect which capacity I should pick?

QLC flash stores four bits per cell, so the 1TB capacity delivers the highest density in the 22mm x 42mm footprint. The SMI controller manages wear-levelling and SLC caching to keep the 570 MB/s read and 500 MB/s write figures consistent across the full capacity.

The box says "up to 570 MB/s" — what will I actually see when the drive is installed in my laptop?

In a typical SATA III 6 Gb/s slot you will see sequential reads near 570 MB/s and writes near 500 MB/s on large files. Random 4K performance and sustained write speed after the SLC cache fills will be lower, but everyday boot and application loads remain well within SATA III limits.
