Small green circuit board, gold edge connector, black chips, 30 by 50.9 millimetres

Dogfish Technology

Dogfish Technology mSATA-500GB 500GB mSATA internal SSD

SKU CH-12E2-QXTAB

A 500 GB mSATA internal SSD with SATA interface, 3D NAND flash, sequential read up to 570 MBps and write up to 500 MBps

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactormSATA
  • Capacity500GB
  • Memory Components3D NAND
  • InterfaceSATA III

Options 500GB mSATA

  • Faster boot and load times with up to 570 MB/s read speed
  • Quicker file saves and transfers at up to 500 MB/s write speed
  • Fits slim laptops and desktops using the 30 mm x 50.9 mm mSATA form factor

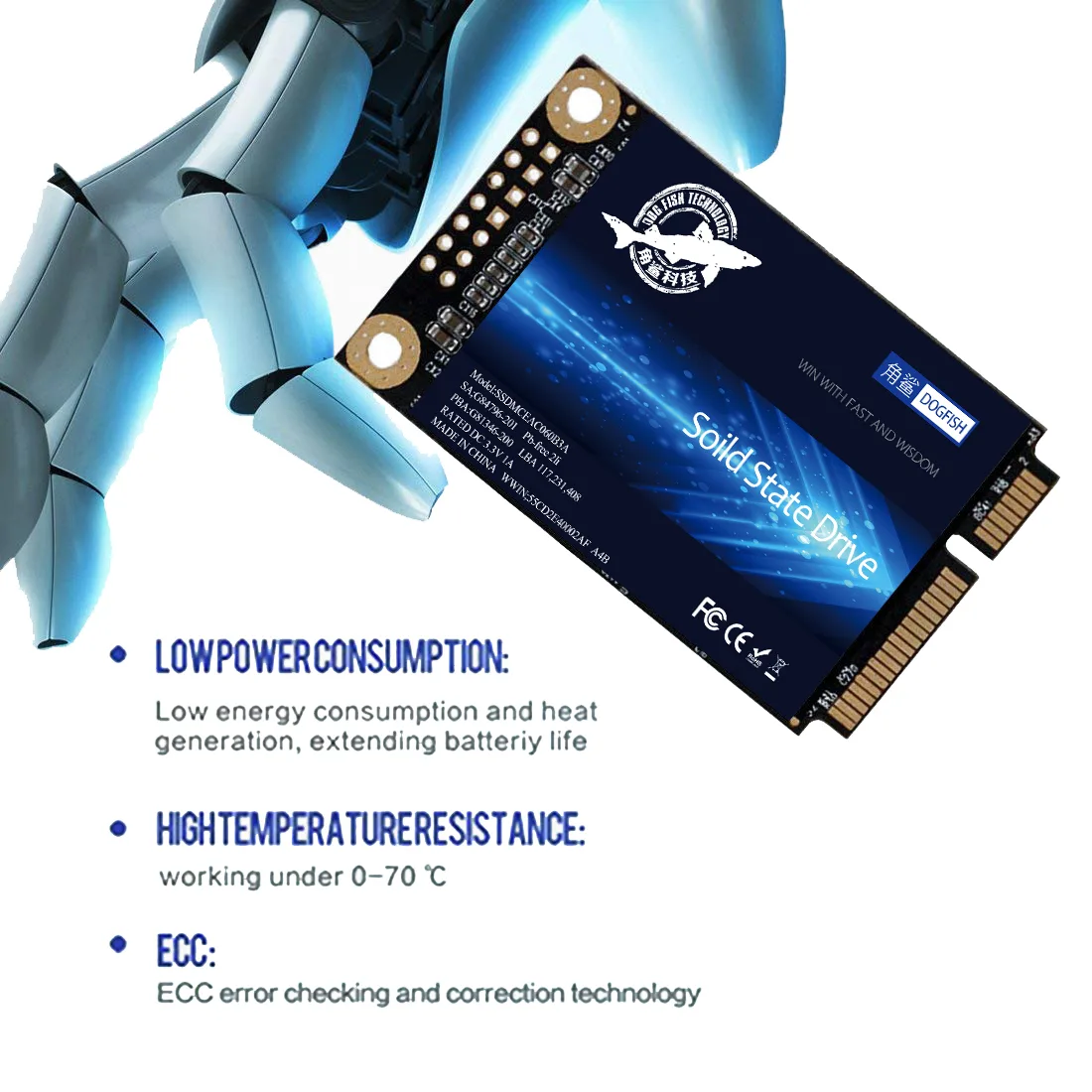

  • 3D NAND flash with built-in ECC and bad-block management protects data integrity
  • Low-power DevSleep support extends battery life during idle periods

mSATA form factor for legacy upgrades

This 500 GB internal SSD uses the mSATA form factor and a SATA III 6 Gb/s interface. It fits desktops and laptops that still rely on the mSATA slot rather than M.2. The 3D NAND TLC memory and SMI controller provide a direct replacement for older mechanical drives in compatible systems.

Sustained throughput with DevSleep support

Sequential reads reach up to 570 MB/s and writes up to 500 MB/s under continuous load. The drive supports DevSleep ultra-low power state, SMART monitoring, TRIM and NCQ commands to maintain consistent performance during extended workloads. Built-in ECC and bad-block management further protect data integrity over long sessions.

Lightweight board with industrial temperature range

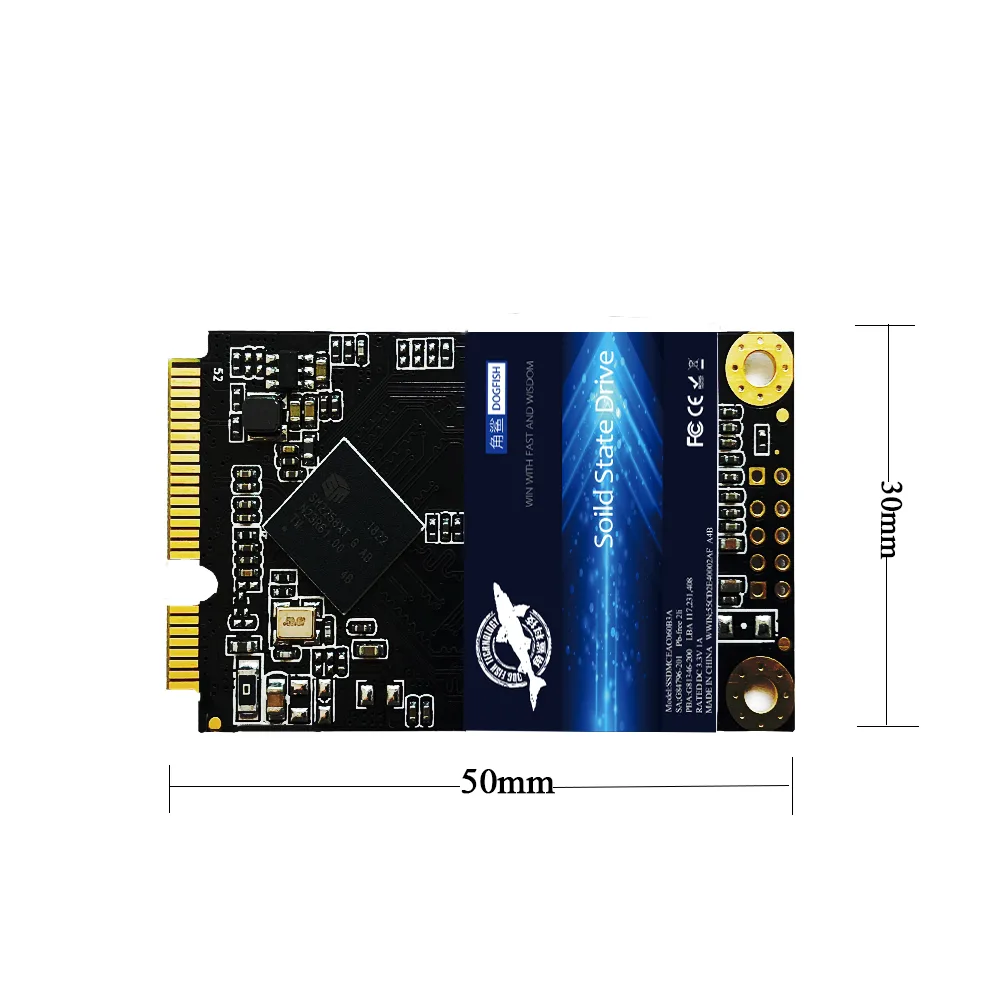

The bare PCB measures 30 mm by 50 mm and weighs 7 g, so it adds no mechanical strain to the motherboard slot. Operating temperature spans 0 °C to 75 °C and storage temperature reaches -45 °C to 85 °C at up to 95 % humidity. MTBF is rated at 1,000,000 hours for long-term reliability in daily use.

Highlights

  • Faster boot and load times with up to 570 MB/s read speed
  • Quicker file saves and transfers at up to 500 MB/s write speed
  • Fits slim laptops and desktops using the 30 mm x 50.9 mm mSATA form factor
  • 3D NAND flash with built-in ECC and bad-block management protects data integrity
  • Low-power DevSleep support extends battery life during idle periods

Specifications

BrandTHREE COLOUR DOGFISH
SeriesmSATA-500GB
ModelmSATA-500GB
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactormSATA
Capacity500GB
Memory Components3D NAND
InterfaceSATA III
ControllerSMI
Max Sequential ReadUp to 570 MBps
Max Sequential WriteUp to 500 MBps
MTBF1,000,000 hours
Operating Temperature0°C ~ +75°C
Storage Temperature-45°C ~ +85°C
Operating Humidity0% ~ 95%
Height30mm
Width50mm
Depth1mm
Weight7g

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much heat and noise does the Dogfish mSATA-500GB produce during all-day operation?

The drive has no moving parts and runs within a 0 °C to 75 °C operating range, so it adds minimal heat and is completely silent compared with mechanical drives.

What must my laptop or desktop already have for this mSATA-500GB to work?

A free mSATA slot that accepts a 30 mm by 50.9 mm card and supports the SATA III 6 Gb/s interface.

Will the Dogfish mSATA-500GB run correctly in an older system that only supports SATA II 3 Gb/s?

Yes, the SATA III interface is backward compatible, so the drive will function at the host's maximum SATA II speed without any configuration changes.
