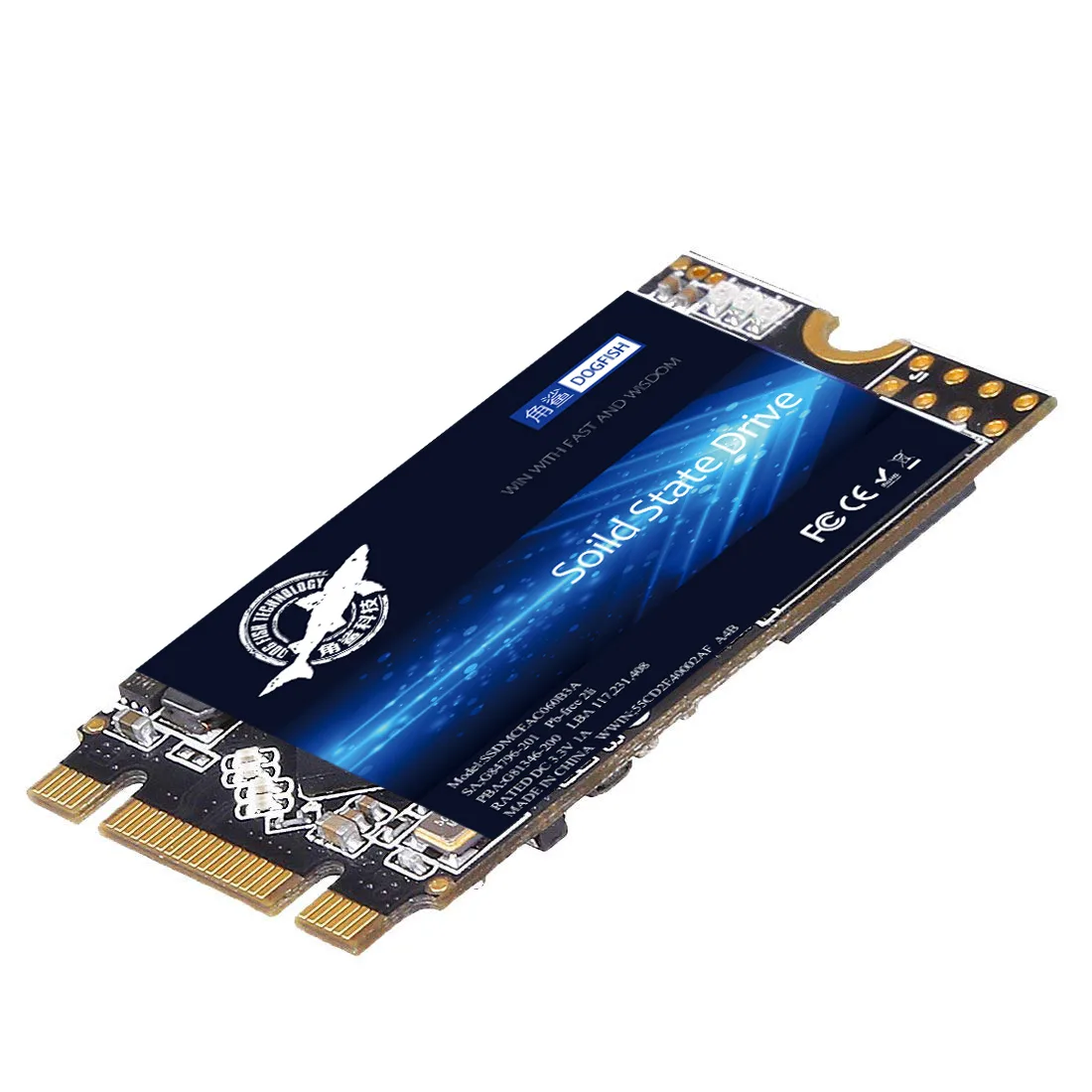

Small green circuit board M.2 2242 SSD with black chips and gold edge connector

Dogfish Technology

Dogfish Technology 2242-240GB 3D NAND TLC SATA internal SSD

SKU CH-AMTJ-HYSRW

A 240 GB M.2 2242 SATA internal SSD with 3D NAND TLC, up to 550 MB/s read and 450 MB/s write

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2242
  • Capacity240GB
  • Memory Components3D NAND
  • ControllerSMI

Options 240GB M.2 2242

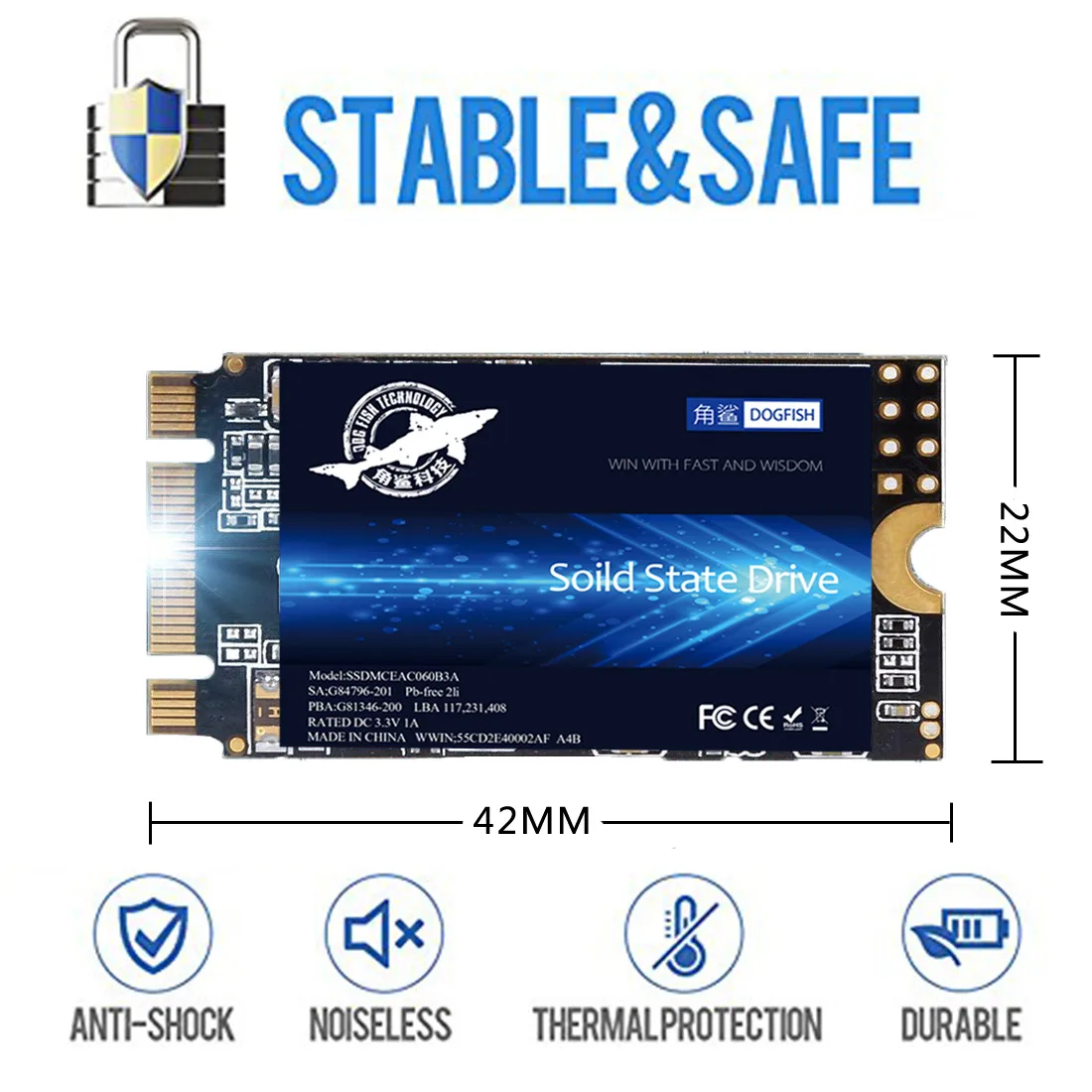

  • Fits tight M.2 2242 slots with 22 mm width and 42 mm length
  • Sequential read up to 550 MB/s and write up to 450 MB/s over SATA
  • 3D NAND TLC memory reduces cell interference for enhanced reliability
  • MTBF rated at 1,000,000 hours for long-term dependability
  • Operates from 0 °C to 75 °C and stores from -45 °C to 85 °C

Compact M.2 2242 SATA SSD for Laptops and Desktops

This Dogfish drive uses the 2242 form factor and a SATA III 6 Gb/s interface to deliver 240 GB of storage in a module that measures 22 mm by 42 mm. It is built with 3D NAND TLC flash and an SMI controller, making it suited for consumer laptops and small-form-factor desktops that need a lightweight, low-power upgrade from a mechanical hard disk.

Simple Plug-in Install with Common Pitfalls

The drive slides into any M.2 slot wired for SATA and is secured with a single screw; no cables or brackets are required. Most issues arise when the slot is keyed only for PCIe or when the system BIOS disables the SATA controller, so verify the slot type and enable SATA in firmware before assuming the hardware is faulty.

Steady SATA Speeds Under Continuous Workloads

Sequential throughput settles at up to 550 MB/s read and 450 MB/s write once the SLC cache is filled, and the built-in ECC, wear-levelling and bad-block management keep error rates low during long write sessions. The controller supports DevSleep, TRIM and NCQ, so the drive maintains consistent latency and low power draw even when the operating temperature approaches 75 °C.

Highlights

  • Fits tight M.2 2242 slots with 22 mm width and 42 mm length
  • Sequential read up to 550 MB/s and write up to 450 MB/s over SATA
  • 3D NAND TLC memory reduces cell interference for enhanced reliability
  • MTBF rated at 1,000,000 hours for long-term dependability
  • Operates from 0 °C to 75 °C and stores from -45 °C to 85 °C

Specifications

BrandTHREE COLOUR DOGFISH
Series2242-240GB
Model2242-240GB
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2242
Capacity240GB
Memory Components3D NAND
ControllerSMI
Max Sequential ReadUp to 550 MBps
Max Sequential WriteUp to 450 MBps
MTBF1,000,000 hours
Operating Temperature0°C ~ +75°C
Storage Temperature-45°C ~ +85°C
Operating Humidity0% ~ 95%
Height42MM
Width22mm
Depth3.2MM
Weight0.05g

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I confirm the 550 MBps read and 450 MBps write speeds are being reached after installation?

Run a sequential benchmark such as CrystalDiskMark; the drive should report up to 550 MBps read and up to 450 MBps write on a SATA III 6 Gb/s port.

What comes in the package and what must I source separately?

The box contains the M.2 2242 240GB SSD only; you will need to supply the motherboard mounting screw and ensure a free M.2 SATA slot.

Which capacity should I choose from the available options?

This listing is the single 240GB variant; other capacities up to 2TB exist in the wider Dogfish range but are separate SKUs.
