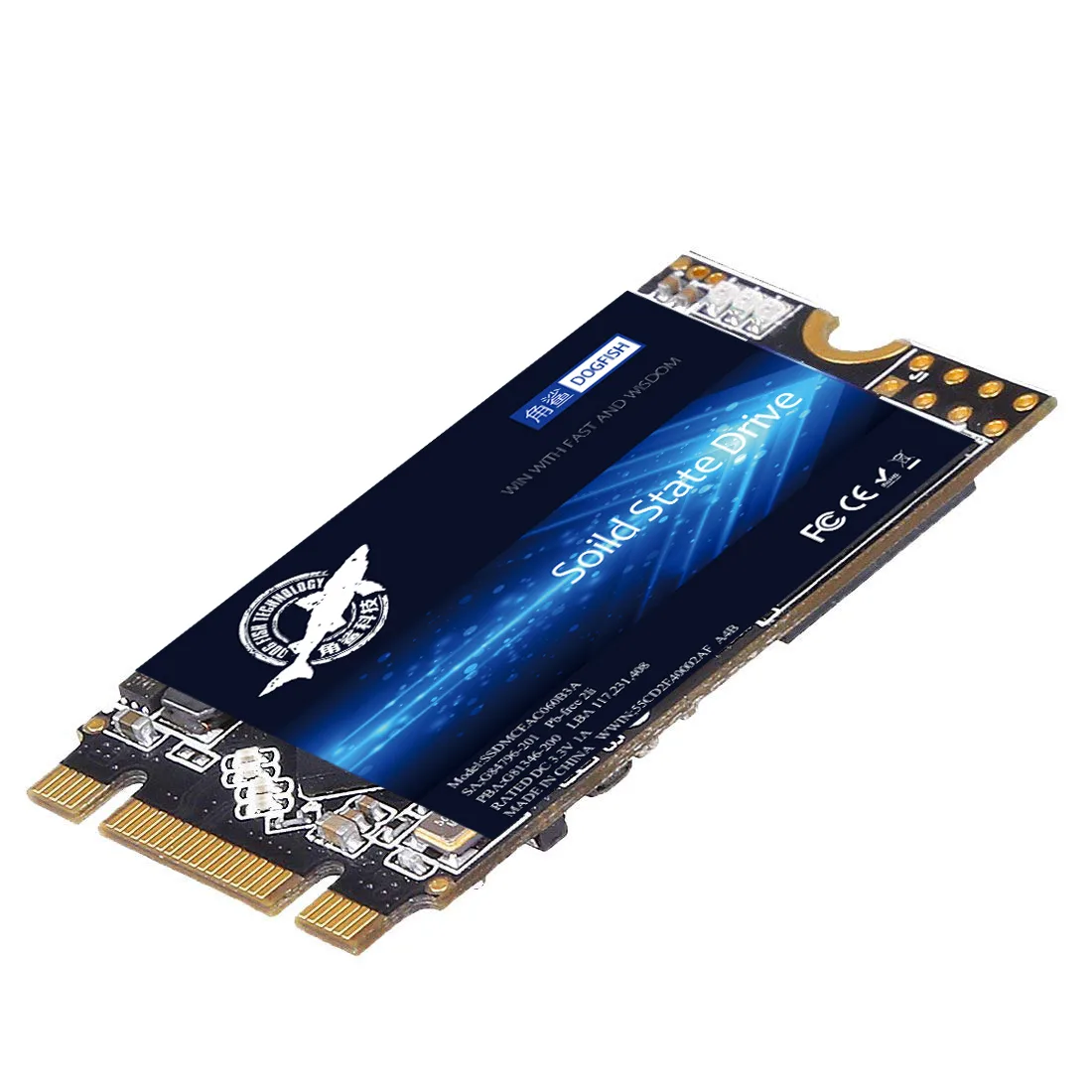

Small green circuit board M.2 2242 SSD with black label and gold edge connector

Dogfish Technology

Dogfish Technology 2242-500GB internal SSD

SKU CH-ZF5Q-99ZS5

Compact M.2 2242 SATA SSD delivering 500 GB capacity with up to 570 MB/s read and 500 MB/s write speeds

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2242
  • Capacity500GB
  • Memory Components3D NAND
  • InterfaceSATA III

Options 500GB M.2 2242

  • M.2 2242 form factor fits ultra-compact laptops and desktops
  • SATA III interface delivers up to 570 MB/s sequential read speed
  • 3D NAND TLC memory provides 500 GB capacity with enhanced reliability
  • No moving parts means silent operation and reduced system heat
  • MTBF of 1000000 hours supports long-term dependability

Compact M.2 2242 SATA drive

The Dogfish Technology 2242-500GB is an internal solid-state drive built for laptops and desktops that accept a 42 mm M.2 module. It uses 3D NAND flash and a SATA III interface to deliver 500 GB of storage in a 22 mm by 42 mm footprint.

Upgrade from mechanical storage

Replacing a 2.5-inch hard drive with this drive removes moving parts, cuts noise and reduces heat output. The jump is worth it when a system needs faster boot times and quicker application loading without changing the motherboard interface.

Steady throughput under load

Sequential reads reach 570 MB/s and writes reach 500 MB/s in sustained transfers. The controller maintains these rates across long write sessions while operating between 0 °C and 75 °C, backed by a 1,000,000-hour MTBF rating.

Highlights

  • M.2 2242 form factor fits ultra-compact laptops and desktops
  • SATA III interface delivers up to 570 MB/s sequential read speed
  • 3D NAND TLC memory provides 500 GB capacity with enhanced reliability
  • No moving parts means silent operation and reduced system heat
  • MTBF of 1000000 hours supports long-term dependability

Specifications

BrandTHREE COLOUR DOGFISH
Series2242-500GB
Model2242-500GB
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2242
Capacity500GB
Memory Components3D NAND
InterfaceSATA III
ControllerSMI
Max Sequential ReadUp to 570 MBps
Max Sequential WriteUp to 500 MBps
MTBF1,000,000 hours
Operating Temperature0°C ~ +75°C
Storage Temperature-45°C ~ +85°C
Operating Humidity0% ~ 95%
Height42MM
Width22mm
Depth3.2MM
Weight0.05g

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will this M.2 2242 drive fit my laptop's slot?

The drive uses the M.2 2242 form factor, measuring 22 mm wide by 42 mm long. Verify your device has an M.2 slot that accepts 42 mm length cards before purchasing.

What sequential speeds can I expect from this SATA SSD?

The manufacturer rates sequential read up to 570 MBps and sequential write up to 500 MBps using ATTO benchmark. Real-world speeds depend on your system's SATA controller and workload.

Does the 3D NAND TLC design affect endurance or reliability?

3D NAND TLC with the SMI controller helps reduce cell-to-cell interference. The drive carries a 1,000,000-hour MTBF rating and operates from 0 °C to 75 °C for typical consumer workloads.
