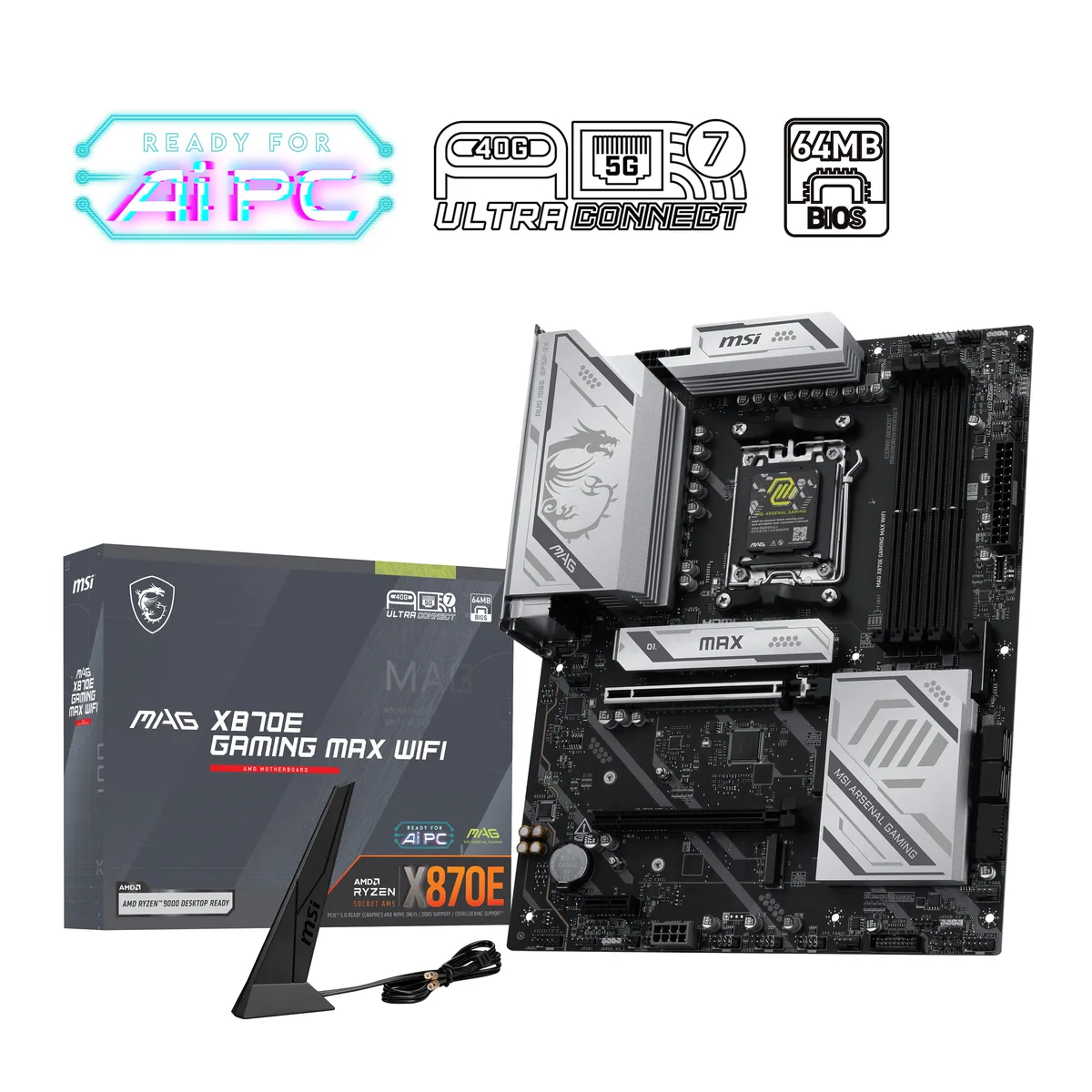

ATX motherboard with black heatsinks and silver accents

MSI

MSI MAG X870E GAMING MAX WIFI AMD motherboard

SKU CH-5QTF-FYDPS MPN MAG X870E GAMING MAX WIFI

ATX AM5 board for Ryzen 7000/8000/9000 CPUs with DDR5 up to 8200 MT/s, PCIe 5.0 x16, Gen5 M.2, Wi-Fi 7, 5 Gbps LAN and 64 MB BIOS

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardUp to DDR5-8200+ MT/s (OC)
  • Channel SupportedDual Channel

Option MAG X870E GAMING MAX WIFI

Struck-through versions exist but are not stocked here.

  • Supports Ryzen 7000, 8000 and 9000 series CPUs via AM5 socket
  • DDR5 memory overclocking up to 8200 MT/s on four 288-pin slots
  • PCIe 5.0 x16 slot plus M.2 Gen5 at 128 Gbps for fastest GPU and storage
  • Wi-Fi 7 and 5 Gbps LAN with Bluetooth 5.4 for high-speed wireless and wired networking
  • 64 MB BIOS and EZ release buttons simplify CPU upgrades and component swaps

AM5 platform for Ryzen 7000, 8000 and 9000 series

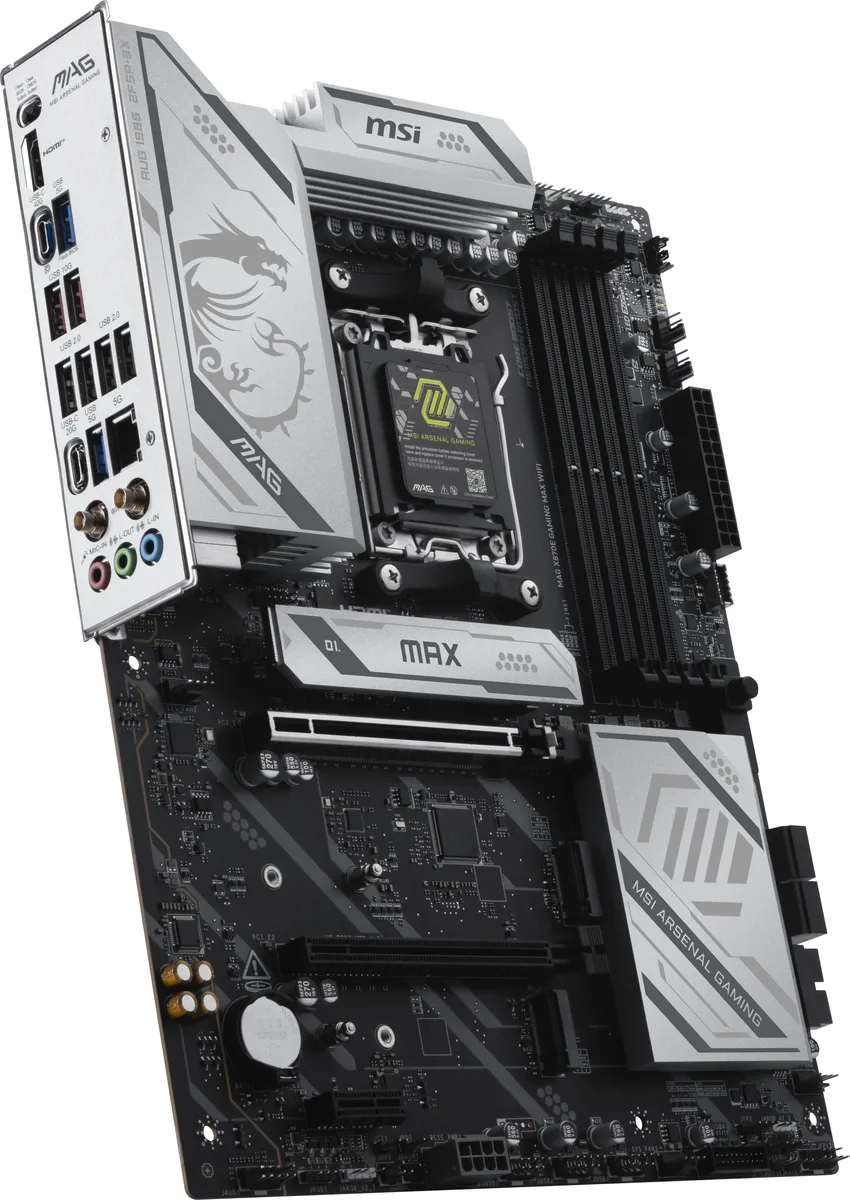

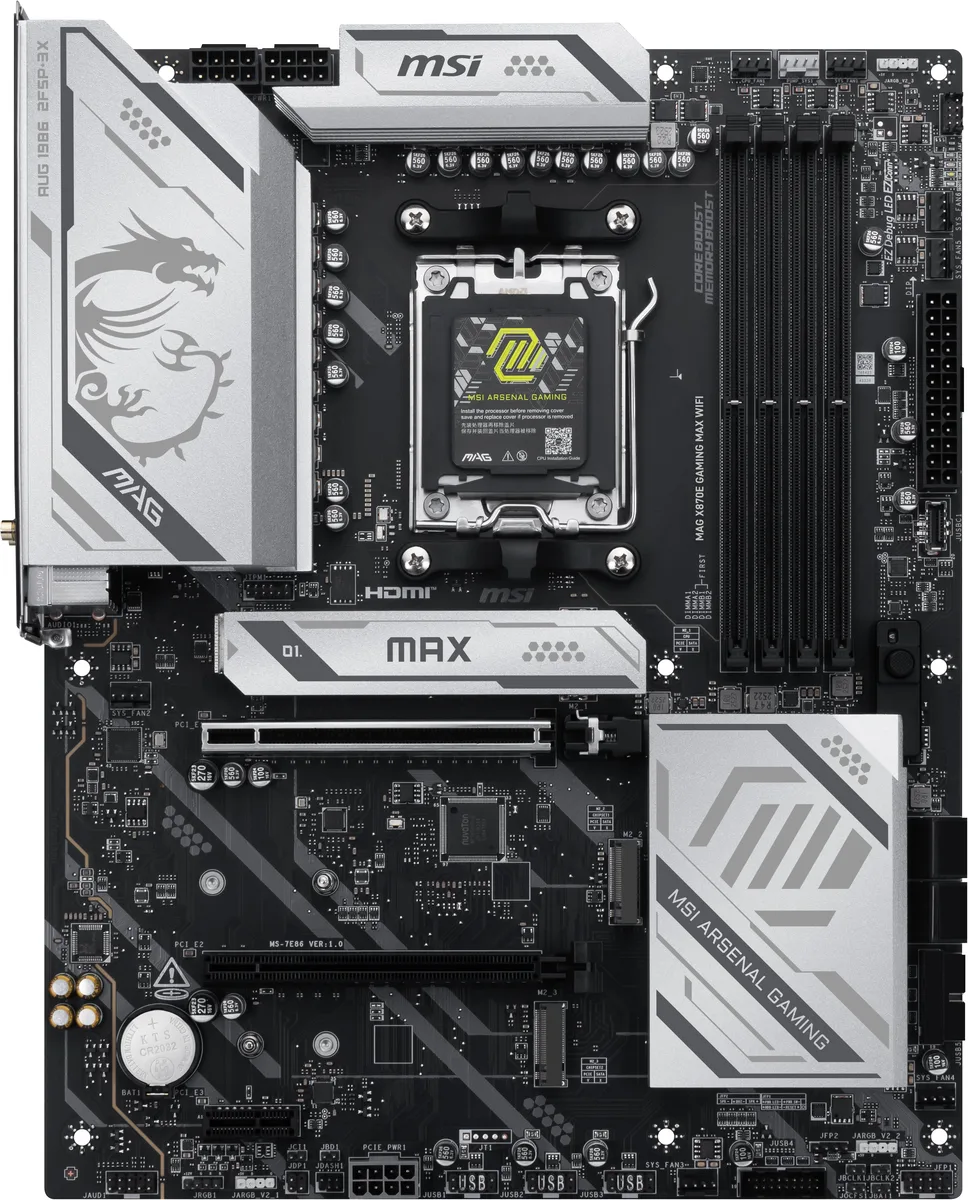

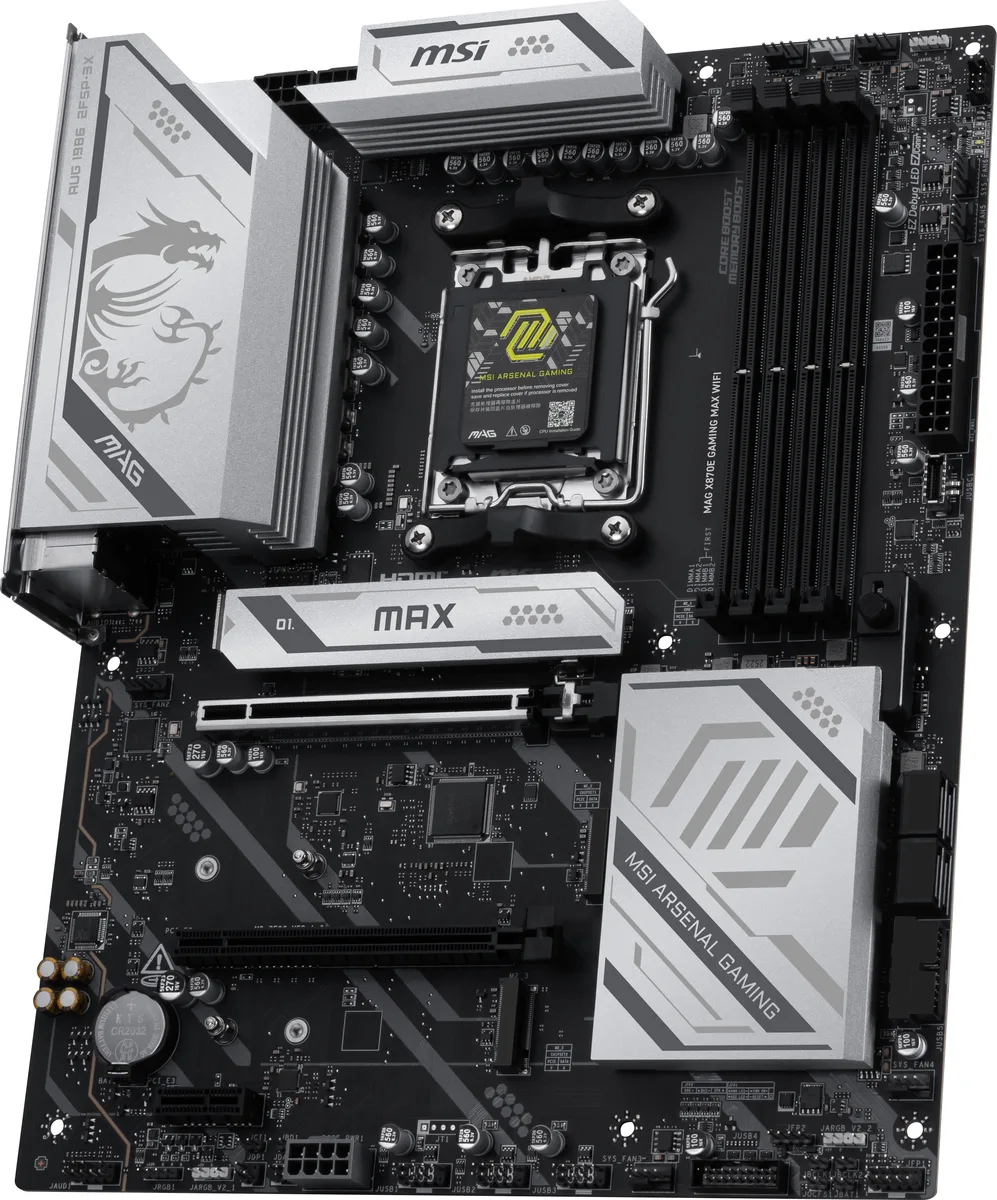

The MSI MAG X870E GAMING MAX WIFI is an ATX motherboard built around the AMD X870E chipset and AM5 socket. It accepts Ryzen 7000, 8000 and 9000 series processors and provides four DDR5 slots rated up to 8200 MT/s when overclocked. A 64MB BIOS ROM improves long-term CPU compatibility.

One PCIe 5.0 x16 slot, three M.2 slots and USB4

A single PCI Express 5.0 x16 slot handles the graphics card, while a PCIe 4.0 x4 and a PCIe 3.0 x1 slot cover add-in cards. Storage uses one M.2 Gen5 x4 slot at 128 Gbps and two M.2 Gen4 x4 slots at 64 Gbps. Rear I/O includes USB4, USB 3.2 Gen 2x2 Type-C, HDMI, 5 Gbps LAN, Wi-Fi 7 and Bluetooth 5.4.

VRM heatsinks and M.2 shields manage heat

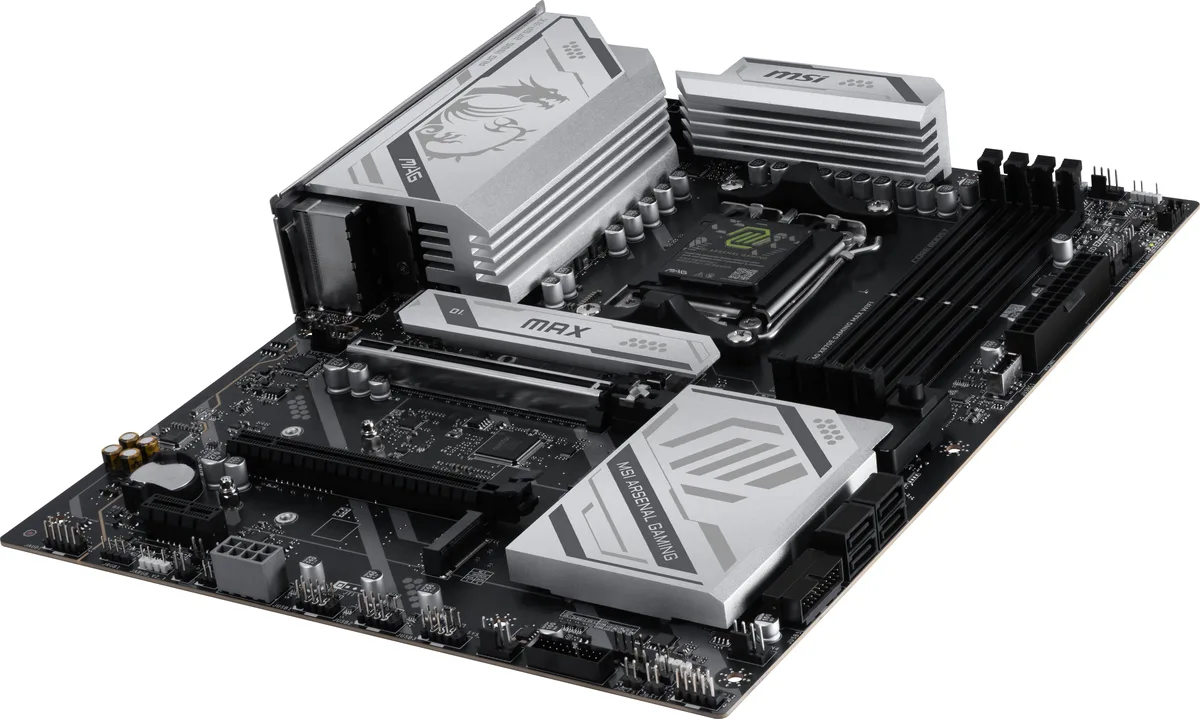

Extended heatsinks on the voltage-regulator modules and dedicated M.2 Shield Frozr II covers keep component temperatures in check during sustained loads. The board draws power through standard ATX and 8-pin EPS connectors, allowing the OC Engine clock generator to push the CPU without excessive noise from the chassis fans.

Highlights

  • Supports Ryzen 7000, 8000 and 9000 series CPUs via AM5 socket
  • DDR5 memory overclocking up to 8200 MT/s on four 288-pin slots
  • PCIe 5.0 x16 slot plus M.2 Gen5 at 128 Gbps for fastest GPU and storage
  • Wi-Fi 7 and 5 Gbps LAN with Bluetooth 5.4 for high-speed wireless and wired networking
  • 64 MB BIOS and EZ release buttons simplify CPU upgrades and component swaps

Specifications

BrandMSI
ModelMAG X870E GAMING MAX WIFI
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardUp to DDR5-8200+ MT/s (OC)
Channel SupportedDual Channel
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express x41 x PCI Express 4.0 x4
PCI Express x11 x PCI Express 3.0 x1
M.21 x M.2 Gen5 x4 128Gbps slot
2 x M.2 Gen4 x4 64Gbps slots
Audio Channels8-Channel (7.1) HD Audio with Audio Boost
Max LAN Speed5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4

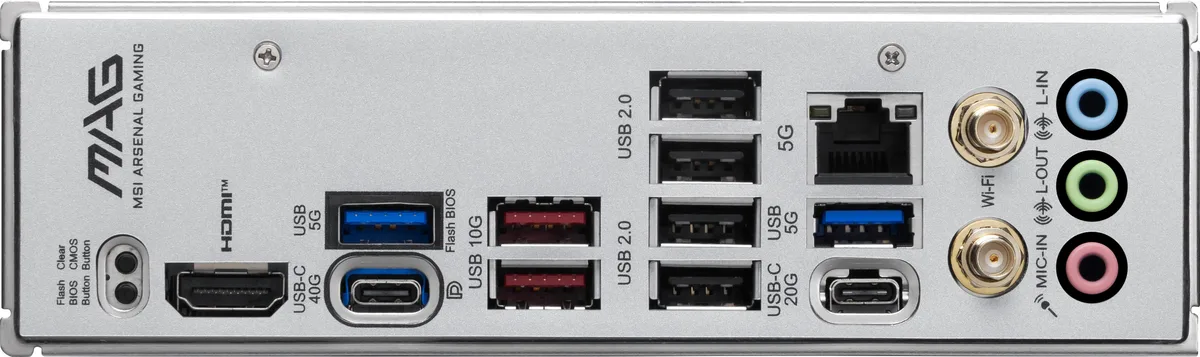

Back I/O Ports1 x Clear CMOS Button / 1 x Flash BIOS Button / 1 x HDMI / 1 x LAN (RJ45) / 1 x USB 3.2 Gen 2x2 Type-C / 1 x USB4 / 2 x Antenna Bracket / 2 x USB 3.2 Gen 1 Type-A / 2 x USB 3.2 Gen 2 Type-A / 3 x Audio Jacks / 4 x USB 2.0/1.1
BIOS Feature64MB BIOS
Shipping weight2.00 kg
Package size343 × 267 × 71 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What is the maximum DDR5 memory speed the board can sustain under continuous load?

The board supports DDR5 up to 8200+ MT/s when overclocked, with four 288-pin slots running in dual-channel mode.

How much heat and noise do the VRM and chipset produce during all-day operation?

The EZ M.2 Shield Frozr II and extended heatsinks cover the VRM and chipset, while the OC Engine clock generator manages power delivery to keep temperatures controlled under sustained loads.

Which components must already be in the build for this motherboard to function?

An AM5-socket Ryzen 7000, 8000 or 9000 series processor, DDR5 memory modules, and a power supply with 24-pin ATX and 8-pin CPU connectors are required.
