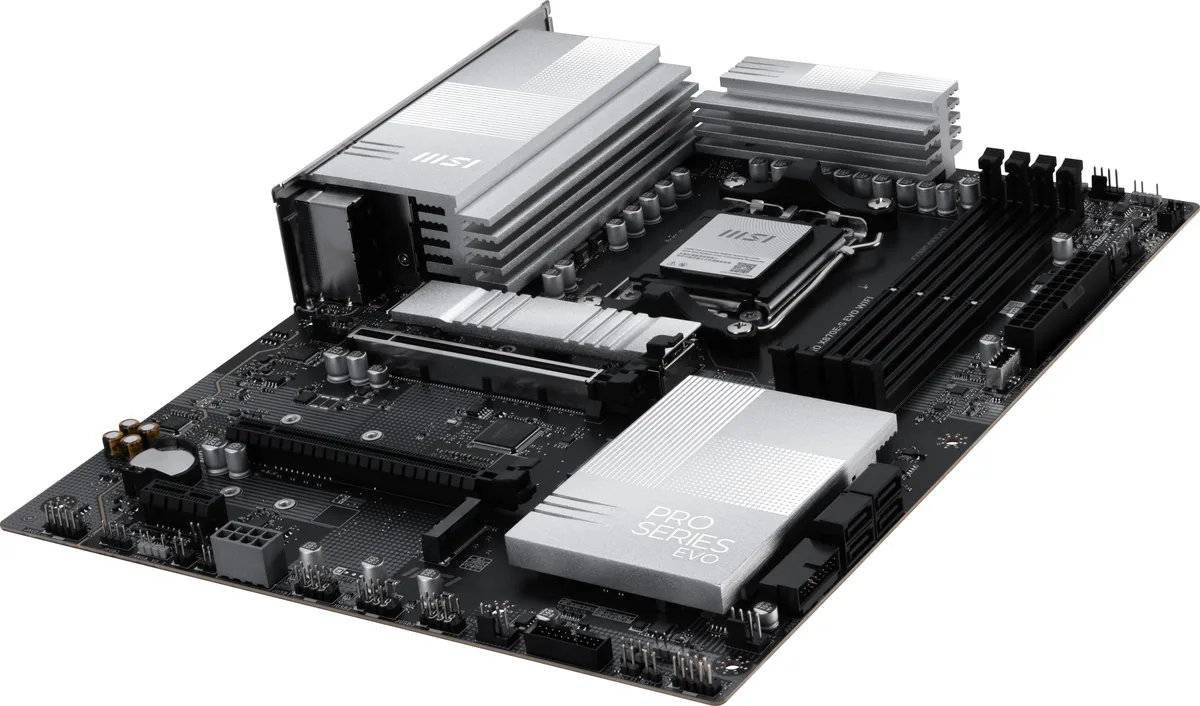

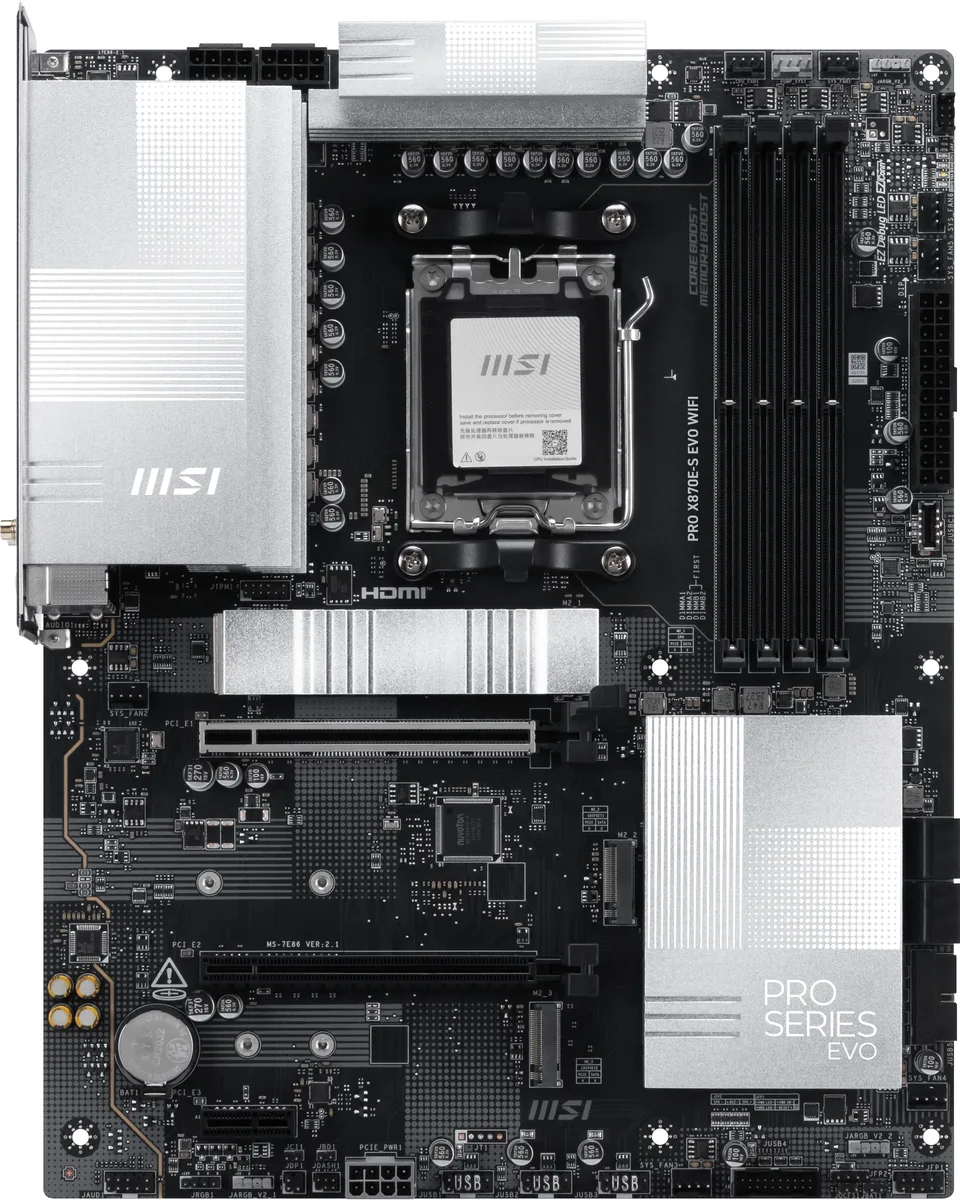

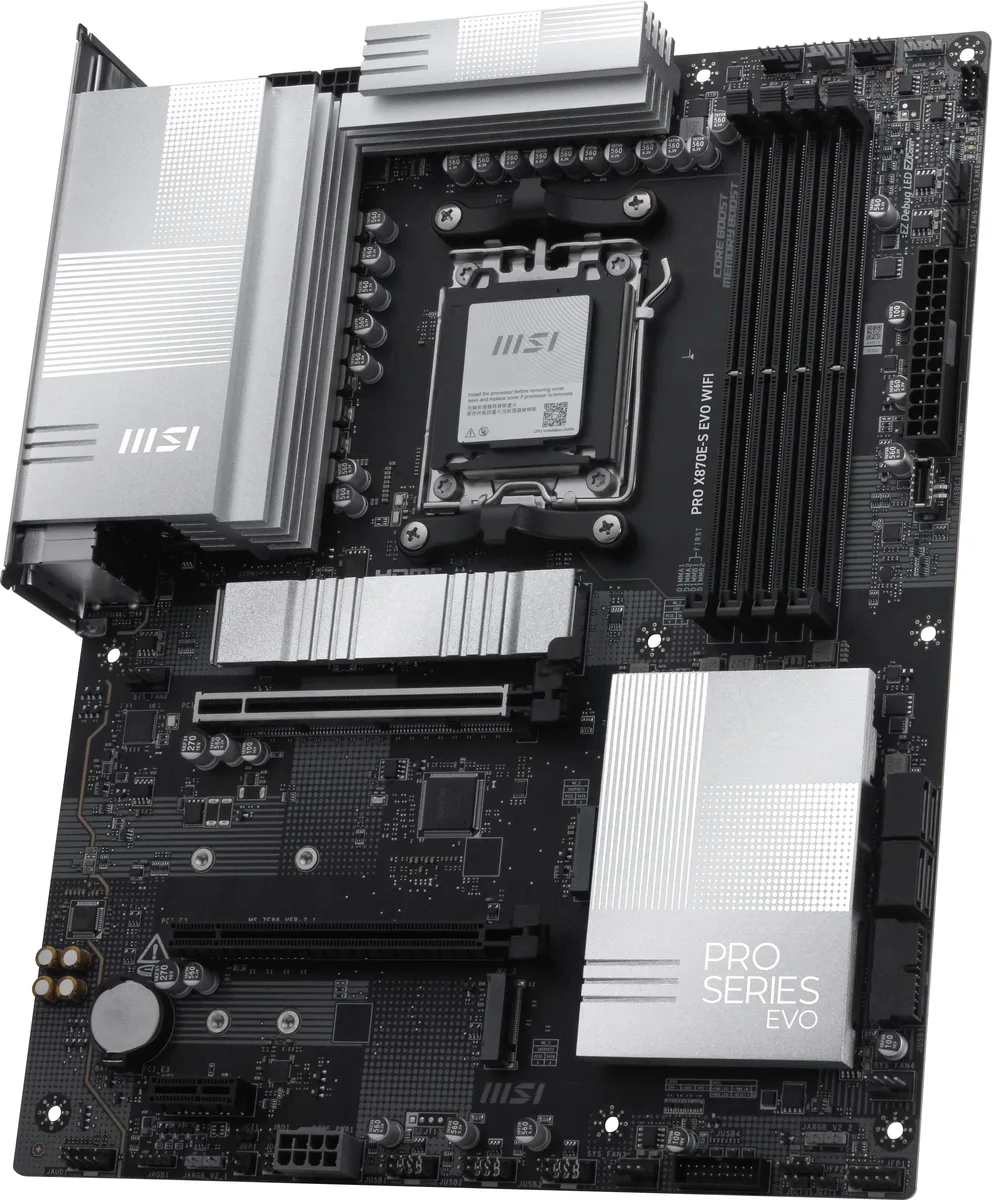

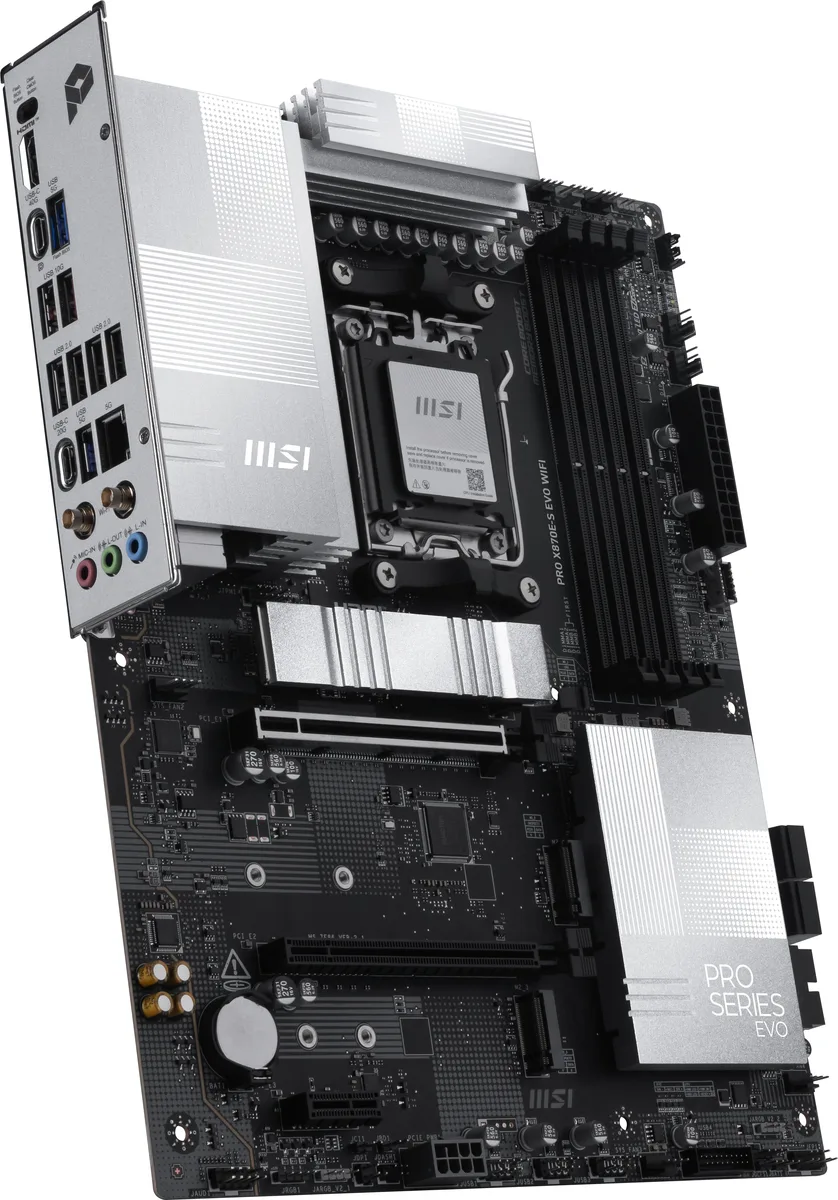

ATX motherboard in dark finish with silver heatsinks and AM5 socket

MSI

MSI PRO X870E-S EVO WIFI AMD motherboard

SKU CH-4SQ8-FV4K9 MPN PRO X870E-S EVO WIFI

ATX AM5 board with 12-duet-rail power, DDR5 5600 up to 256 GB, PCIe 5.0, USB 40 Gbps, 5G LAN and Wi-Fi 7

  • CPU Socket TypeAM5
  • CPU TypeRyzen 9000 Series, Ryzen 8000 Series, Ryzen 7000 Series
  • ChipsetAMD X870E
  • South BridgeAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 5600

Option PRO X870E-S EVO WIFI

Struck-through versions exist but are not stocked here.

  • Supports Ryzen 9000, 8000 and 7000 series CPUs on AM5 socket
  • 12 Duet Rail power system with 60A Smart Power Stages for stable delivery
  • Wi-Fi 7 with 160MHz channel reaching 2.9Gbps maximum speed
  • USB 4.0 port provides 40Gbps data transfer rate
  • Four SATA 6Gb/s ports and DDR5 memory up to 256GB capacity

Socket AM5 Ryzen Platform

The MSI PRO X870E-S EVO WIFI is an ATX motherboard built on the AMD X870E chipset for AMD Ryzen 9000, 8000 and 7000 series desktop processors. It provides a 12 Duet Rail Power System with 60A smart power stages to sustain heavy CPU loads. Four DDR5 slots support up to 256GB of memory at 5600 with AMD EXPO profiles.

Pre-Build Compatibility Checklist

Verify that your chassis fits an ATX board and that your power supply includes the required CPU and main ATX connectors. Confirm your chosen Ryzen 7000, 8000 or 9000 series processor is seated in the AM5 socket. Ensure DDR5 modules are non-ECC un-buffered DIMMs. Plan storage around four SATA 6Gb/s ports and the available PCIe 5.0 and 4.0 x16 slots for graphics and expansion cards.

Thermals, Noise and Power Delivery

The 12 Duet Rail Power System uses 60A smart power stages and digital PWM control to deliver efficient voltage regulation under load. Frozr Guard combines an extended heatsink, 7W/mK MOSFET thermal pads and choke pads with the tool-less EZ M.2 Shield Frozr II for improved dissipation. Frozr Sync headers allow coordinated fan control so cooling adapts to actual component temperatures during normal operation.

Highlights

  • Supports Ryzen 9000, 8000 and 7000 series CPUs on AM5 socket
  • 12 Duet Rail power system with 60A Smart Power Stages for stable delivery
  • Wi-Fi 7 with 160MHz channel reaching 2.9Gbps maximum speed
  • USB 4.0 port provides 40Gbps data transfer rate
  • Four SATA 6Gb/s ports and DDR5 memory up to 256GB capacity

Specifications

BrandMSI
SeriesPRO
CPU Socket TypeAM5
CPU TypeRyzen 9000 Series, Ryzen 8000 Series, Ryzen 7000 Series
ChipsetAMD X870E
South BridgeAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 5600
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express 4.0 x161 x PCI Express 4.0 x16
PCI Express 3.0 x160 x PCI Express 3.0 x16
PCI Express x162 x PCI Express x16
PCI Express x41 x PCI Express x4
PCI Express x11 x PCI Express x1
Serial ATA (SATA)4 x SATA 6Gb/s
M.23 x M.2 (Support PCIe 5.0 x4 & PCIe 4.0 x4)
SATA RAID0/1/5/10
Onboard Video ChipsetDepends on CPU integrated graphics
Audio ChipsetRealtek ALC897
Audio Channels7.1 Channels
LAN ChipsetRealtek 8126VB
Max LAN Speed5Gbps
Wireless LANWiFi IEEE 802.11 a / b / g / n / ac / ax / be
BluetoothYes

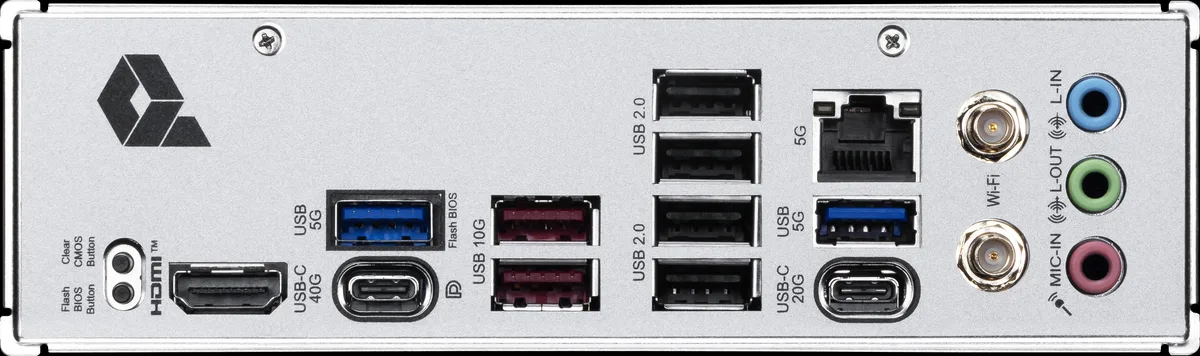

Back I/O Ports1 x Clear CMOS Button, 1 x HDMI, 1 x USB 40Gbps Type-C, 1 x USB 20Gbps Type-C, 2 x USB 10Gbps Type-A, 2 x USB 5Gbps Type-A, 4 x USB 2.0, 1 x 5G LAN, 1 x Wi-Fi / Bluetooth, 1 x Flash BIOS Button, Audio connectors
Video PortsHDMI + Display Port
HDMI1 x HDMI
RJ451 x RJ45
DisplayPort1 x DisplayPort
USB 3.13 x USB 3.1
USB 3.06 x USB 3.0
USB 1.1/2.010 x USB 2.0
USB Type-C1 x USB 10Gbps Type-C port, 1 x USB 20Gbps Type-C port, 1 x USB 40Gbps Type-C port
Audio Ports5 Ports
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 2x2 + 4 x USB 3.2 + 6 x USB 2.0
Form FactorATX
LED LightingRGB
Dimensions (W x L)304.8mm x 243.84mm
Power Pin24 Pin
Windows 11Supported
Shipping weight1.91 kg
Package size343 × 273 × 76 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the MSI PRO X870E-S EVO WIFI include the Wi-Fi 7 antenna or must it be purchased separately?

The board ships with an EZ Antenna kit for Wi-Fi 7, so no separate antenna purchase is required.

Should I choose the 256 GB DDR5 limit or a lower capacity for this motherboard?

The board supports up to 256 GB across four DDR5 slots; pick the capacity that matches your workload and budget.

What does the 40 Gbps USB 4 figure mean when I plug in a device?

The built-in USB 4 port delivers up to 40 Gbps bandwidth, enabling very fast external storage or dock connections.
