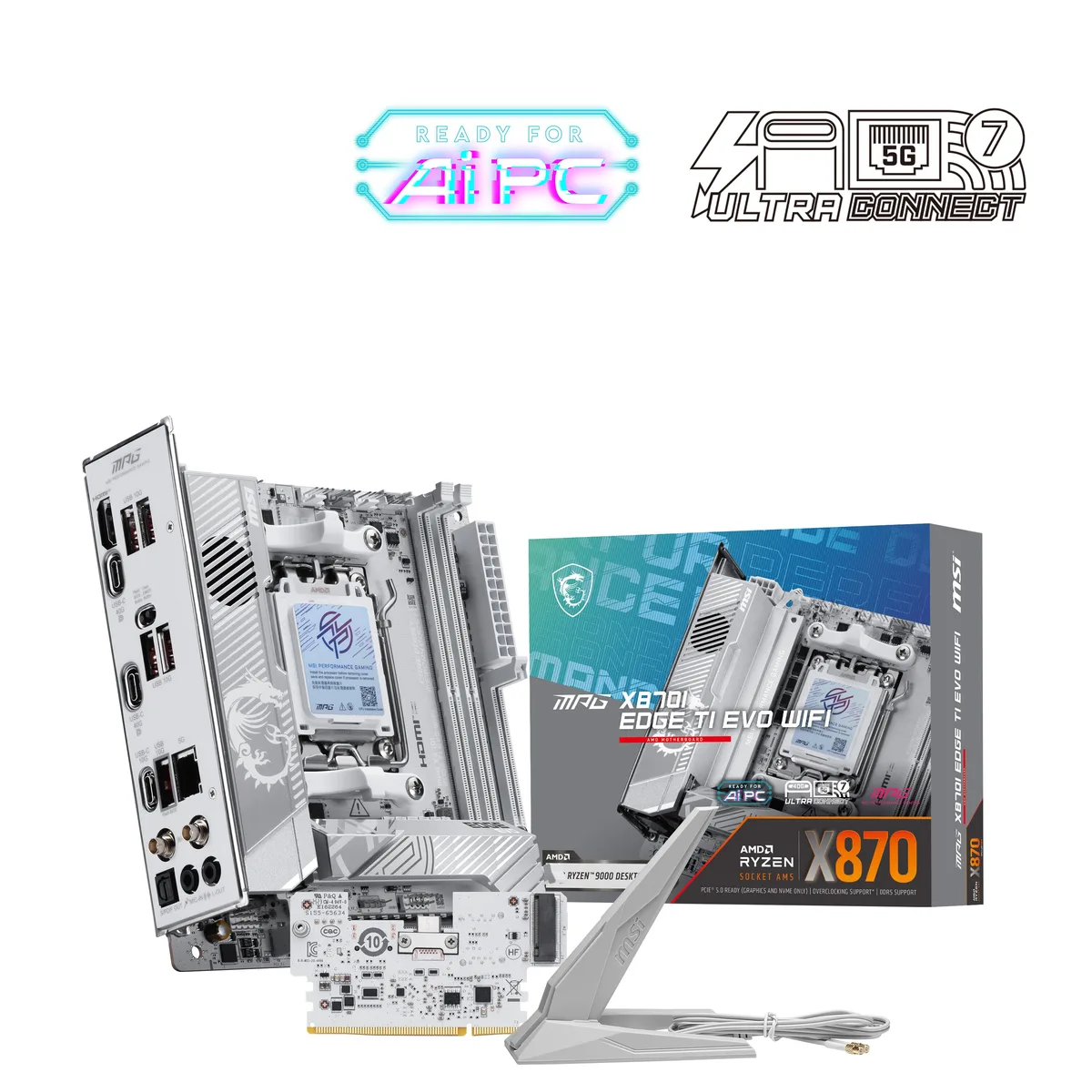

White Mini-ITX motherboard with silver heatsinks and rear I/O shield

MSI

MSI MPG X870I EDGE TI EVO WIFI AMD motherboard

SKU CH-5YK6-VXH5K MPN MPG X870I EDGE TI EVO WIFI

Mini-ITX AMD X870 board for Ryzen 7000, 8000 and 9000 CPUs with 110A VRM, DDR5, PCIe 5.0 x16, Gen5 M.2, 5G LAN and Wi-Fi 7

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD X870
  • Number of Memory Slots2x288pin (DDR5)
  • Channel SupportedDual Channel
  • PCI Express 5.0 x161 x PCI Express 5.0 x16

Option MPG X870I EDGE TI EVO WIFI

Struck-through versions exist but are not stocked here.

  • Tool-less M.2 Shield Frozr II simplifies SSD installation
  • 110A SPS VRM delivers stable power to Ryzen 9000 8000 7000 CPUs
  • PCIe 5.0 x16 slot provides 128GB/s bandwidth for graphics cards
  • Gen5 M.2 slot reaches 128Gbps for fastest storage speeds
  • Wi-Fi 7 and Bluetooth 5.4 plus 5Gbps LAN enable high-speed connectivity

Mini-ITX AM5 board for Ryzen 7000, 8000 and 9000

The MPG X870I EDGE TI EVO WIFI is a Mini-ITX motherboard built around the AMD X870 chipset. It accepts Ryzen 7000, 8000 and 9000 series processors in the AM5 socket. A 110A SPS VRM design and a 64MB BIOS ROM support stable power delivery and broad CPU compatibility. Dual-channel DDR5 memory slots and a tool-less M.2 Shield Frozr II complete the compact platform.

PCIe 5.0 x16 and triple M.2 with Gen5 limit

One full-length PCIe 5.0 x16 slot provides up to 128Gbps bandwidth for graphics or accelerator cards. Storage uses three M.2 connectors: one onboard Gen5 x4 slot at 128Gbps and two Gen4 x4 slots at 64Gbps, with one Gen4 slot routed through the included 5-in-1 Xpander Card. The board also retains two SATA 6Gb/s ports for additional drives.

Check CPU cooler clearance

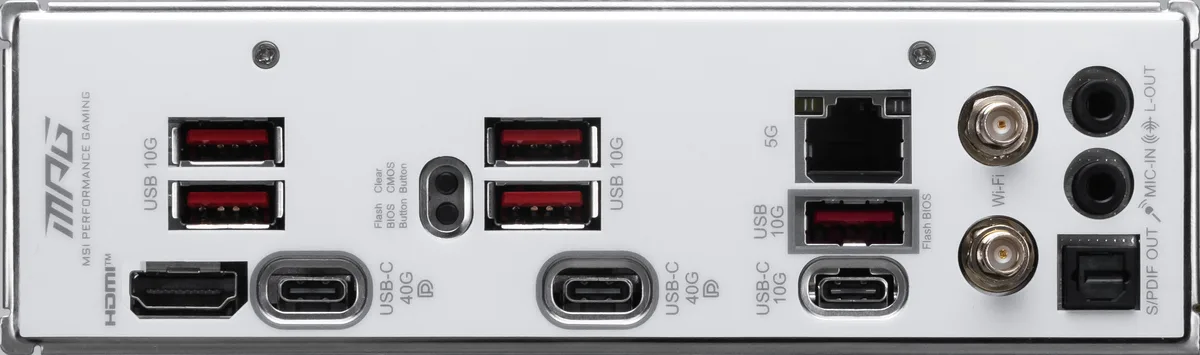

The ITX layout places the CPU socket close to the PCIe slot and the 24-pin ATX connector, so verify that your cooler and power cables fit without interference. Rear I/O supplies 2x USB 3.2 Gen 2x2 Type-C, 1x USB 3.2 Gen 2 Type-C, 4x USB 3.2 Gen 2 Type-A, 5G LAN, Wi-Fi 7, Bluetooth 5.4, optical S/PDIF and 7.1-channel audio jacks. Ensure your case front-panel headers match the board’s USB and audio pinouts.

Highlights

  • Tool-less M.2 Shield Frozr II simplifies SSD installation
  • 110A SPS VRM delivers stable power to Ryzen 9000 8000 7000 CPUs
  • PCIe 5.0 x16 slot provides 128GB/s bandwidth for graphics cards
  • Gen5 M.2 slot reaches 128Gbps for fastest storage speeds
  • Wi-Fi 7 and Bluetooth 5.4 plus 5Gbps LAN enable high-speed connectivity

Specifications

BrandMSI
ModelMPG X870I EDGE TI EVO WIFI
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD X870
Number of Memory Slots2x288pin (DDR5)
Channel SupportedDual Channel
PCI Express 5.0 x161 x PCI Express 5.0 x16
Serial ATA (SATA)2 x SATA 6Gb/s
M.21 x M.2 Gen5 x4 128Gbps slot
2 x M.2 Gen4 x4 64Gbps slots (1 via 5-in-1 Xpander Card)
Audio Channels7.1 Channels
Max LAN Speed5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports1 x Clear CMOS Button / 1 x Flash BIOS Button / 1 x LAN (RJ45) / 1 x Optical S/PDIF Out / 1 x USB 3.2 Gen 2 Type-C / 2 x Audio Jacks / 2 x USB 3.2 Gen 2x2 Type-C / 4 x USB 3.2 Gen 2 Type-A
Shipping weight8.39 kg
Package size267 × 229 × 64 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I choose the single M.2 Gen5 slot or the two Gen4 slots for my SSD?

Use the M.2 Gen5 x4 128Gbps slot for the fastest drive; the two Gen4 x4 64Gbps slots (one via the 5-in-1 Xpander Card) add extra capacity without halving the primary slot bandwidth.

What does the 110A SPS VRM rating mean once the board is in a real machine?

The 110A SPS VRM delivers stable power to Ryzen 7000, 8000 and 9000 series CPUs, allowing sustained high clocks under heavy multi-core loads in the compact ITX layout.

How does the Wi-Fi 7 802.11 be interface cap practical throughput?

The Wi-Fi 7 radio and 5Gbps LAN share the rear I/O; wireless peaks depend on router capabilities and spectrum, while the wired 5Gbps port provides a consistent ceiling for NAS or multi-gig internet.
