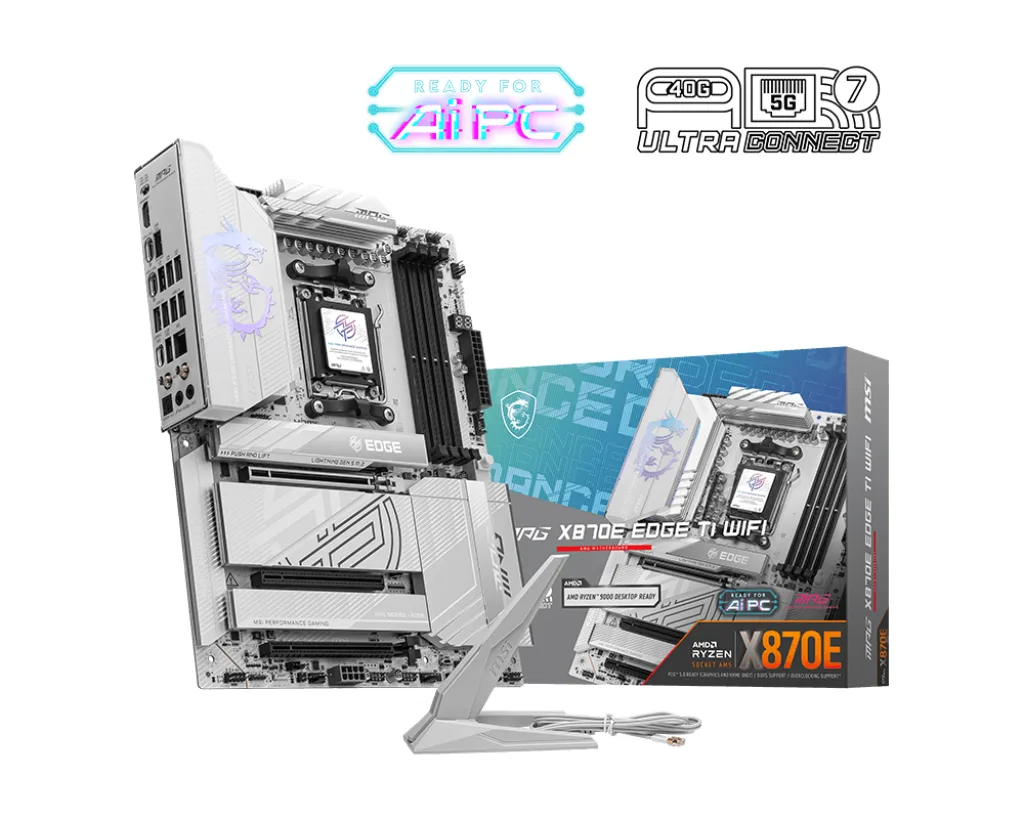

White ATX motherboard with silver heatsinks and black PCB

MSI

MSI MPG X870E EDGE TI WIFI AMD motherboard

SKU CH-RT2R-8J5PQ MPN MPG X870E EDGE TI WIFI

ATX motherboard for AM5 Ryzen 9000, 8000 and 7000 CPUs with DDR5 to 8400 MT/s, PCIe 5.0, four M.2 slots, 5G LAN and Wi-Fi 7

  • CPU Socket TypeAM5
  • CPU TypeSupports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processo
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory Standard4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support
  • Maximum Memory Supported256GB

Option MPG X870E EDGE TI WIFI

Struck-through versions exist but are not stocked here.

  • Supports Ryzen 9000, 8000 and 7000 CPUs on AM5 socket
  • 14 Duet Rail power stages rated at 80A each for stable delivery
  • DDR5 memory overclocked to 8400 MT/s across four slots up to 256GB
  • PCIe 5.0 x16 graphics slot plus two CPU-linked M.2 Gen5 ports
  • Wi-Fi 7 and 5G LAN with Realtek 8126 controller for fast networking

AM5 platform for Ryzen 9000 8000 7000

The MPG X870E EDGE TI WIFI is an ATX motherboard built on the AMD X870E chipset with an AM5 socket. It supports AMD Ryzen 9000 8000 and 7000 series desktop processors. A 14 Duet Rail Power System with 80A Smart Power Stages delivers stable current for demanding workloads. Four DDR5 slots accept up to 256GB of memory.

Step up from X870E

Moving from an X870E board is worthwhile when you need PCIe 5.0 x16 for graphics and two CPU sourced M.2 slots that both reach PCIe 5.0 x4 speeds. The 5G LAN and Wi-Fi 7 connectivity also exceed the typical X870E feature set. The 14 phase power design adds headroom for sustained heavy loads.

256GB DDR5 and Gen5 storage headroom

Dual channel DDR5 runs at JEDEC 5600 4800 MT/s and can be pushed to 8400+ MT/s with Ryzen 9000 processors using one DIMM per channel. Two CPU linked M.2 sockets handle 22110 and 2280 drives at PCIe 5.0 x4 while two chipset linked sockets add PCIe 4.0 capacity. Four SATA 6Gb/s ports remain for bulk storage.

Highlights

  • Supports Ryzen 9000, 8000 and 7000 CPUs on AM5 socket
  • 14 Duet Rail power stages rated at 80A each for stable delivery
  • DDR5 memory overclocked to 8400 MT/s across four slots up to 256GB
  • PCIe 5.0 x16 graphics slot plus two CPU-linked M.2 Gen5 ports
  • Wi-Fi 7 and 5G LAN with Realtek 8126 controller for fast networking

Specifications

BrandMSI
SeriesMPG
ModelMPG X870E EDGE TI WIFI
Part NumberMPG X870E EDGE TI WIFI
CPU Socket TypeAM5
CPU TypeSupports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory Standard4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8400+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
* CUDIMM support and POR boot frequency may vary by CPU series, with manua
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedNon-ECC
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express 4.0 x161 x PCI Express 4.0 x16
PCI Express 3.0 x161 x PCI Express 3.0 x16
PCI SlotsPCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Serial ATA (SATA)4 x SATA 6Gb/s
M.24x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
M.2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
M.2_2 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• The M2_2 slo
Audio ChannelsRealtek® ALC4080 Codec
7.1-Channel USB High-Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel
Supports S/PDIF output
Max LAN Speed1x Realtek® 8126 5G LAN
Wireless LANWi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM
* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
BluetoothYes

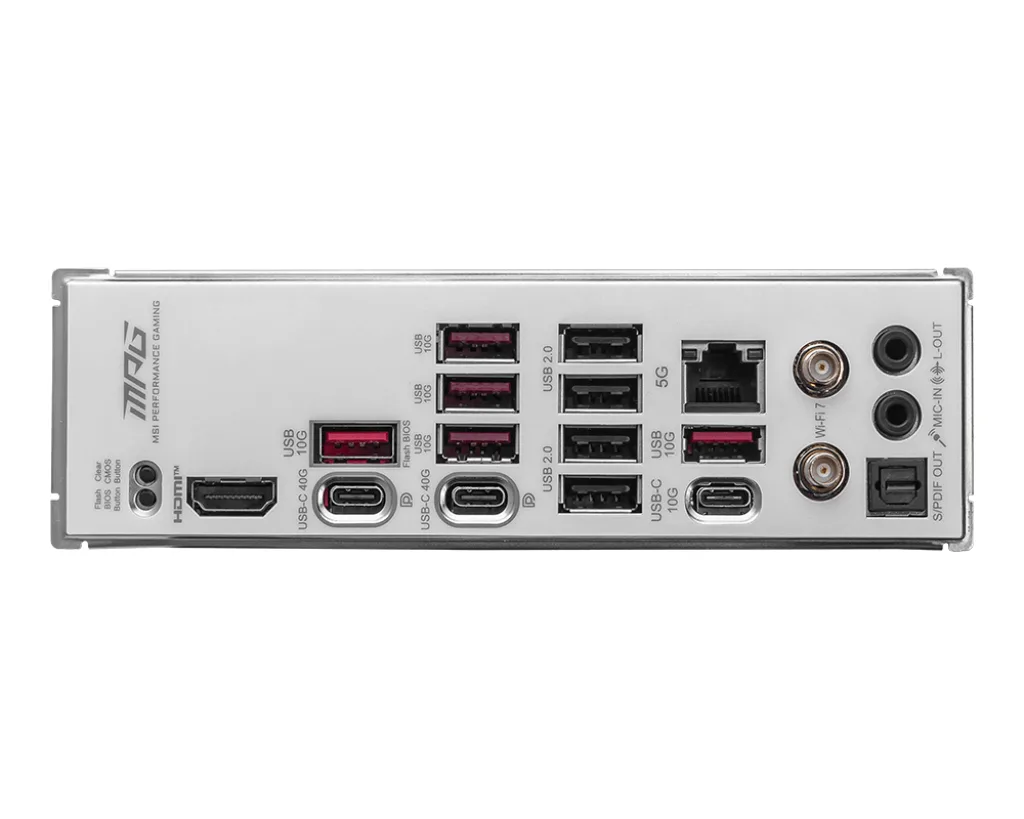

Back I/O PortsClear CMOS Button
USB 10Gbps Type-A
USB 2.0
5G LAN
Wi-Fi / Bluetooth
Audio Connectors
Flash BIOS Button
HDMI™
USB 40Gbps Type-C
USB 10Gbps Type-A
USB 10Gbps Type-C
Optical S/PDIF Out
Other Connectors1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x Front Type-C Quick Charge Connector(PD_PWR1)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
Form FactorATX
Dimensions (W x L)243.84mmx304.8mm
Windows 11Support for Windows® 11 64-bit
FeaturesSupports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
Frozr Guard: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
Ligh
Shipping weight2.31 kg
Package size338 × 274 × 76 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will my Ryzen 9000 series CPU fit this AM5 socket?

Yes, the board supports AMD Ryzen 9000, 8000 and 7000 series desktop processors on the AM5 socket.

Can I install four DDR5 modules and reach the advertised 8400 MT/s speed?

With Ryzen 9000 series CPUs you can run 1DPC 1R up to 8400+ MT/s; other series top out at lower overclocked speeds.

Does the primary M.2 slot run at PCIe 5.0 x4 for a Gen5 SSD?

M.2_1 is wired from the CPU and supports PCIe 5.0 x4 for 22110 or 2280 devices.
