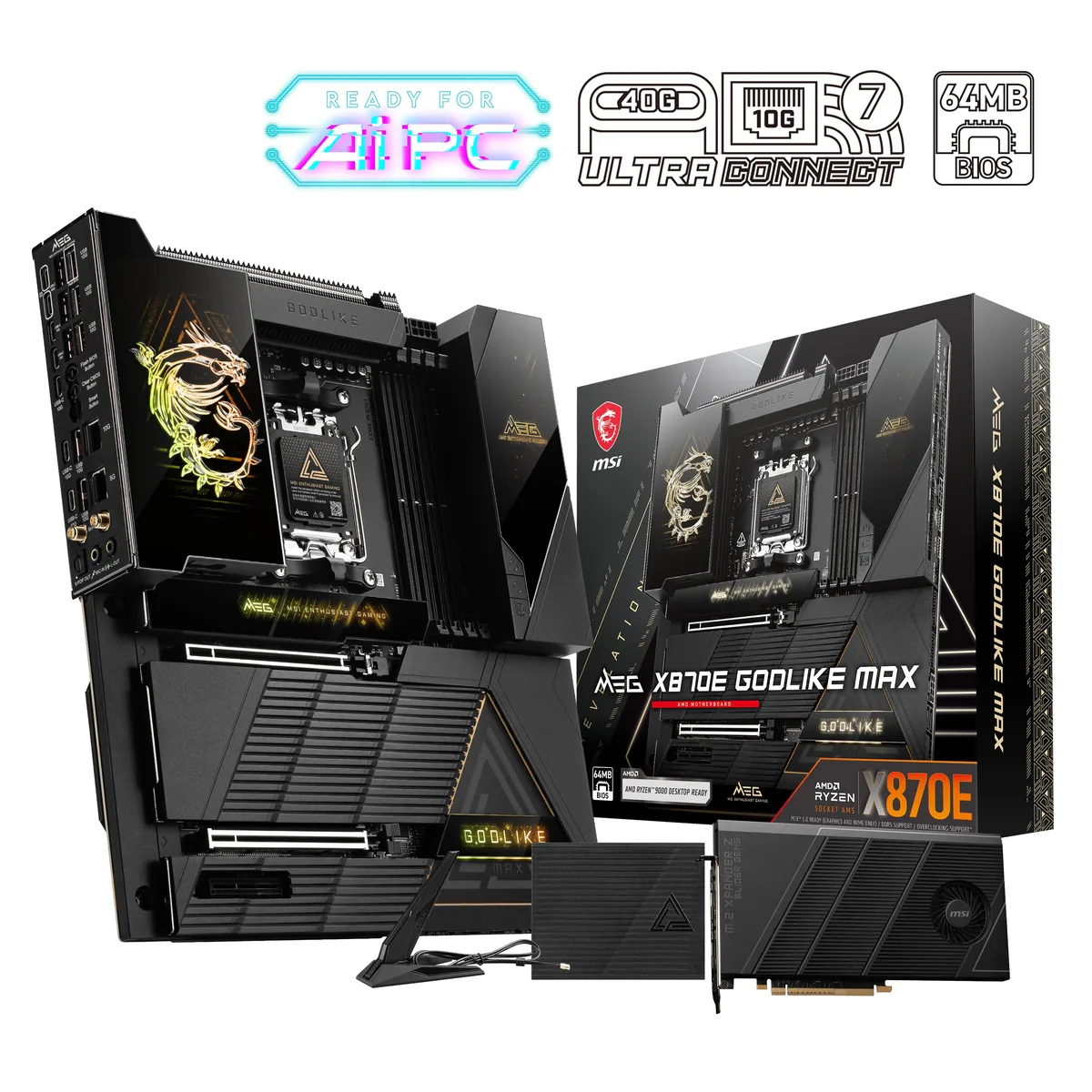

Large rectangular E-ATX motherboard with black metal armour, silver heatsinks

MSI

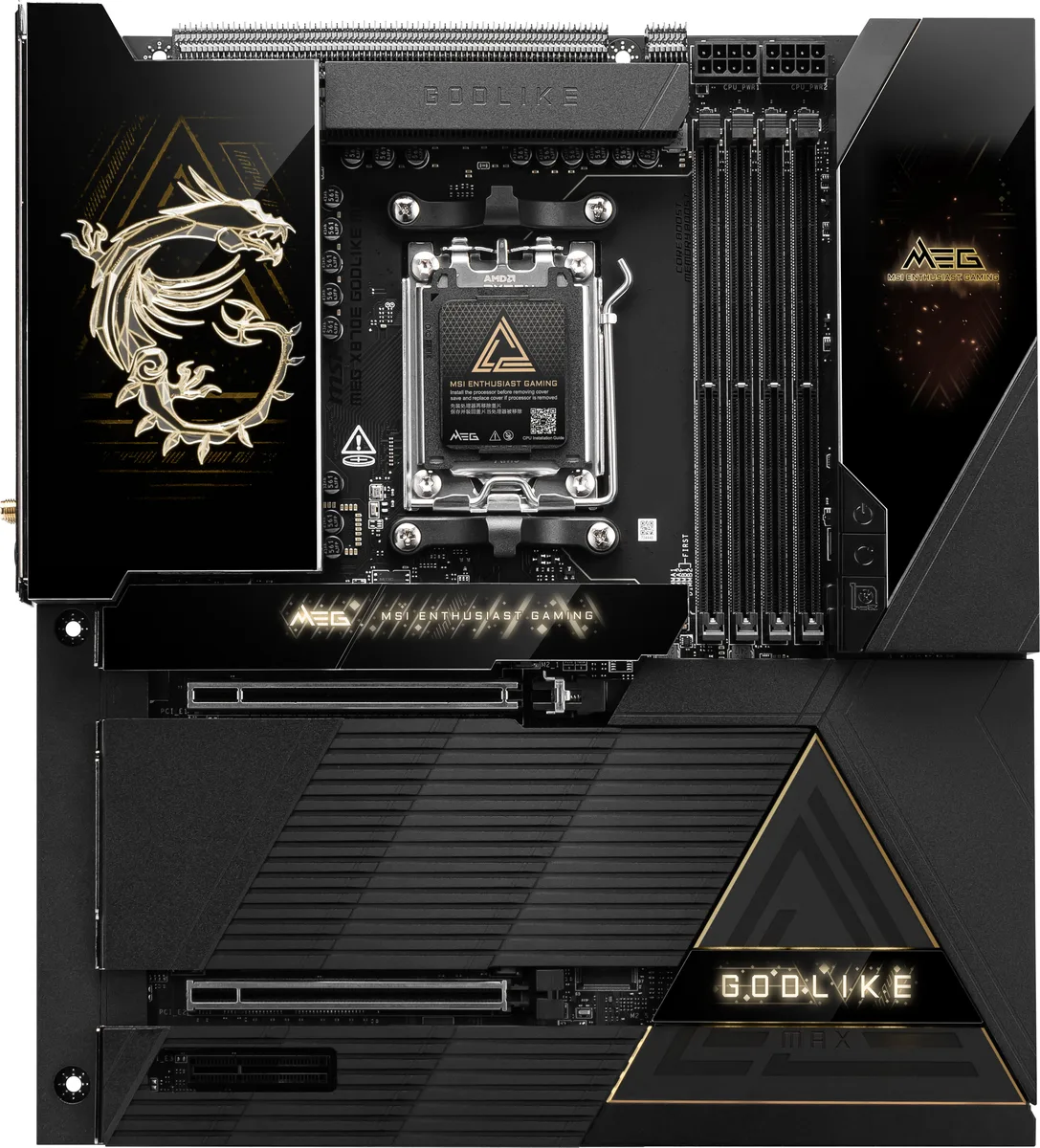

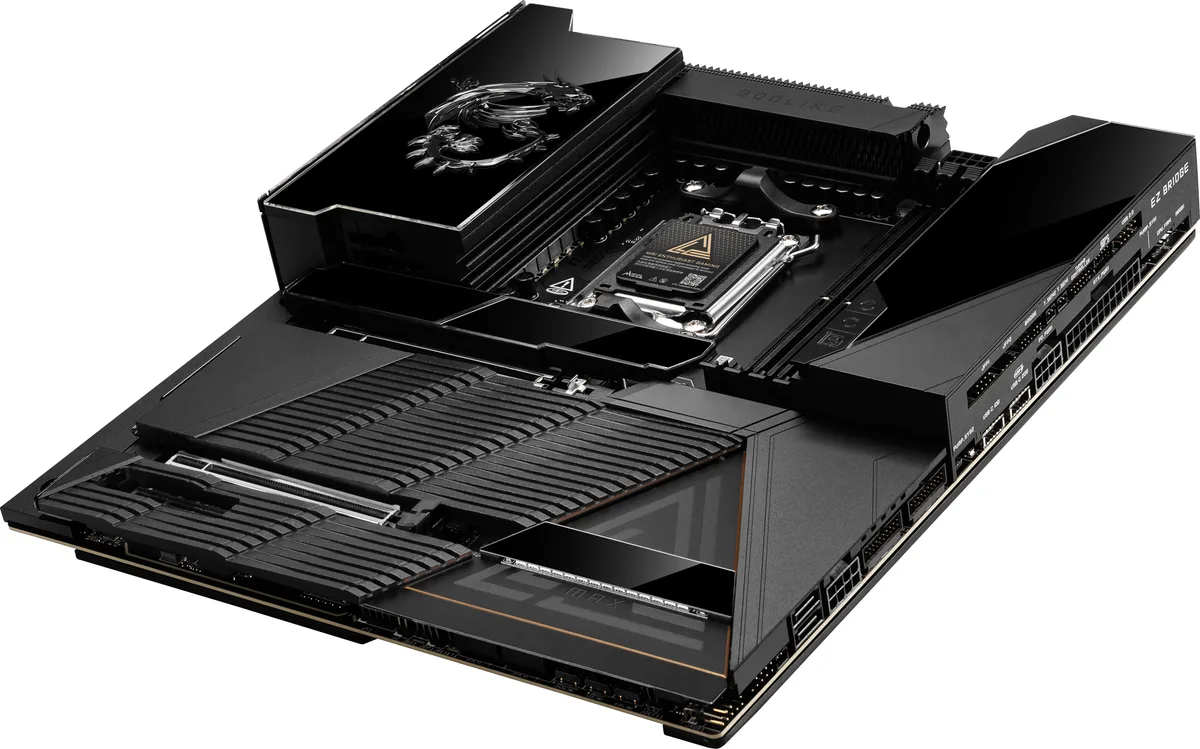

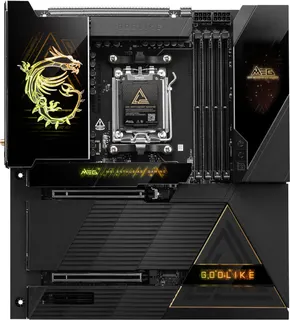

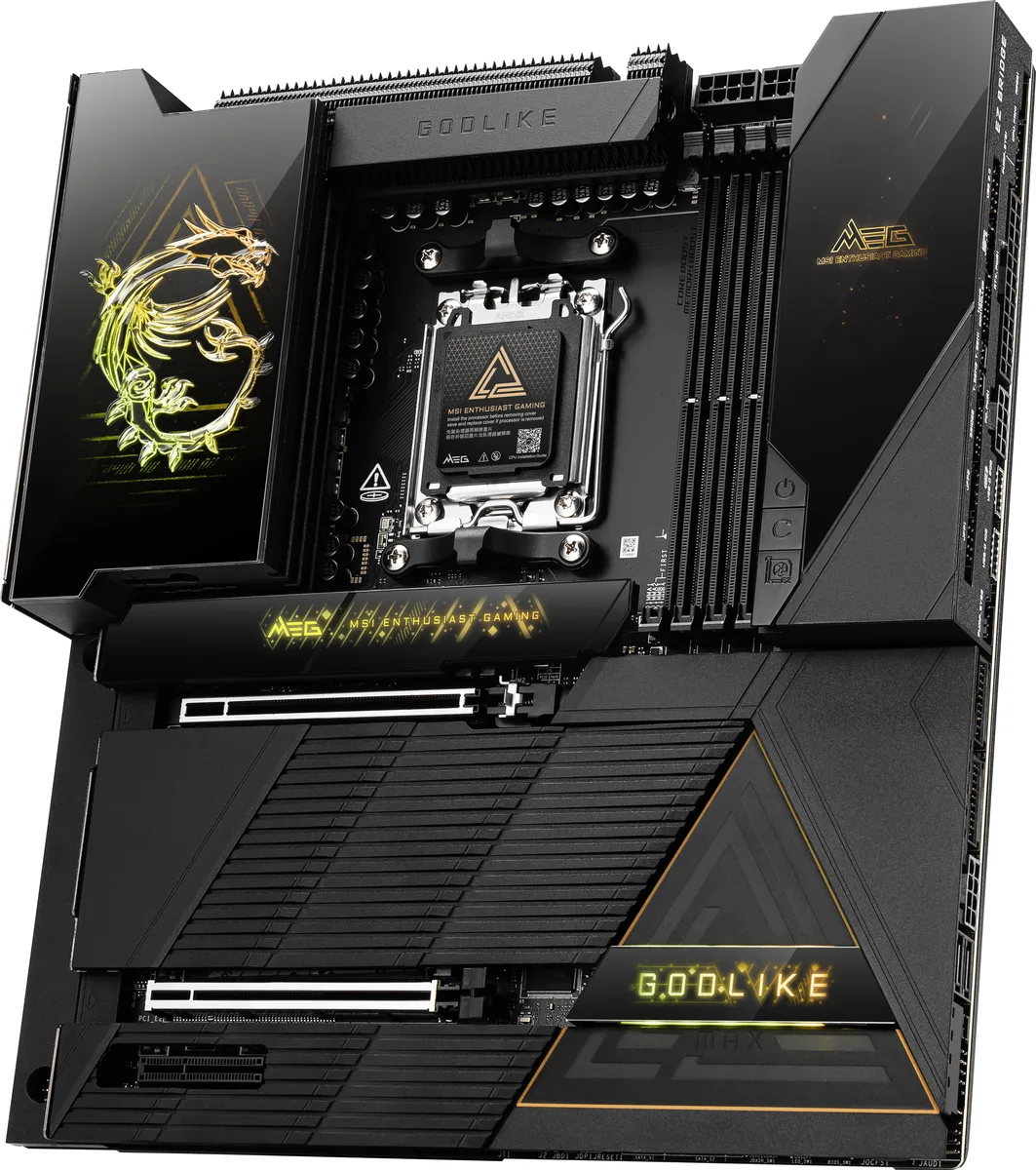

MSI MEG X870E GODLIKE MAX AMD motherboard

SKU CH-8CBA-M6AEE MPN MEG X870E GODLIKE MAX

E-ATX AM5 board with 3.99-inch LCD, 110A power stages, DDR5-9200 support, dual 10G and 5G LAN, Wi-Fi 7, Bluetooth 5.4, two USB4 ports, and seven M.2 slots including four Gen5

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardUp to DDR5-9200+ MT/s (OC)
  • Channel SupportedDual Channel

Option MEG X870E GODLIKE MAX

Struck-through versions exist but are not stocked here.

  • Real-time hardware monitoring on a 3.99-inch full-colour LCD
  • Simplified front-panel wiring with the EZ Link bridge and control hub
  • 24+2+1 Duet Rail power system with 110A Smart Power Stages for extreme CPU loads
  • Seven M.2 slots including four PCIe 5.0 x4 at 128Gbps for high-speed storage
  • Dual 10Gbps and 5Gbps LAN plus Wi-Fi 7 and Bluetooth 5.4 for fast connectivity

AM5 Platform for Ryzen 7000 8000 9000

The MSI MEG X870E GODLIKE MAX is an E-ATX motherboard built for AMD Ryzen 7000 8000 and 9000 series processors on the AM5 socket. It targets enthusiasts who want maximum connectivity and expansion headroom in a single board. The X870E chipset unlocks full PCIe 5.0 bandwidth for graphics and storage alongside USB4 and dual high-speed LAN.

24+2+1 Duet Rail Power with 110A Stages

The 24+2+1 Duet Rail Power System uses 110A Smart Power Stages to deliver clean current to the CPU under heavy multi-threaded loads. This design keeps voltage droop low so the processor can sustain high frequencies without excessive heat. The 64MB BIOS ROM provides ample space for microcode updates across multiple Ryzen generations.

Dynamic Dashboard III EZ Link Expansion Card

A 3.99-inch full-colour LCD shows real-time temperatures fan speeds and POST codes while allowing BIOS updates without a CPU installed. The EZ Link system consolidates front-panel fan and RGB headers into an external bridge and control hub for tidier cable routing. The bundled M.2 Xpander-Z Slider Gen5 card adds two additional Gen5 x4 slots running at 128Gbps each.

Highlights

  • Real-time hardware monitoring on a 3.99-inch full-colour LCD
  • Simplified front-panel wiring with the EZ Link bridge and control hub
  • 24+2+1 Duet Rail power system with 110A Smart Power Stages for extreme CPU loads
  • Seven M.2 slots including four PCIe 5.0 x4 at 128Gbps for high-speed storage
  • Dual 10Gbps and 5Gbps LAN plus Wi-Fi 7 and Bluetooth 5.4 for fast connectivity

Specifications

BrandMSI
ModelMEG X870E GODLIKE MAX
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardUp to DDR5-9200+ MT/s (OC)
Channel SupportedDual Channel
PCI Express 5.0 x161 x PCI Express 5.0 x16
1 x PCI Express 5.0 x8
PCI Express x41 x PCI Express 4.0 x4
M.22 x M.2 Gen5 x4 128Gbps slots
2 x M.2 Gen5 x4 128Gbps slots via M.2 card
2 x M.2 Gen4 x4 64Gbps slot
1 x M.2 Gen4 x2 32Gbps slot
Audio Channels8-Channel (7.1) USB High Performance Audio with Audio Boost 5 HD
Max LAN Speed10Gbps + 5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports1 x Clear CMOS Button / 1 x Flash BIOS Button / 1 x Optical S/PDIF Out / 1 x Smart Button / 2 x Antenna Bracket / 2 x Audio Jacks / 2 x LAN (RJ45) / 2 x USB4 / 5 x USB 3.2 Gen 2 Type-C / 8 x USB 3.2 Gen 2
BIOS Feature64MB BIOS
Shipping weight6.44 kg
Package size386 × 361 × 132 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the Dynamic Dashboard III LCD and what step is often missed?

Mount the 3.99-inch LCD on the board header, then connect its dedicated cable; the step often missed is plugging the separate USB link so the dashboard can show real-time monitoring and BIOS-update status.

What maintenance will the EZ Link front-panel hub need later?

The EZ Link hub consolidates front-panel, fan and RGB headers into the EZ Bridge and EZ Control Hub; periodic maintenance means checking those hub connectors for dust and reseating any loose cables during a chassis clean.

What limit appears first under sustained load with the 24+2+1 Duet Rail power system?

The 110A Smart Power Stages set the practical ceiling; under prolonged heavy CPU loads the VRM thermal limit is reached before the current rating, so adequate case airflow becomes the deciding factor.
