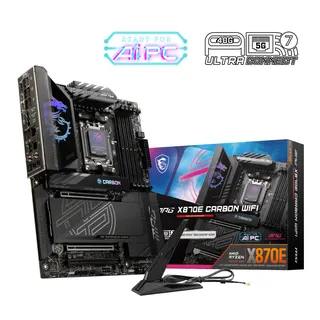

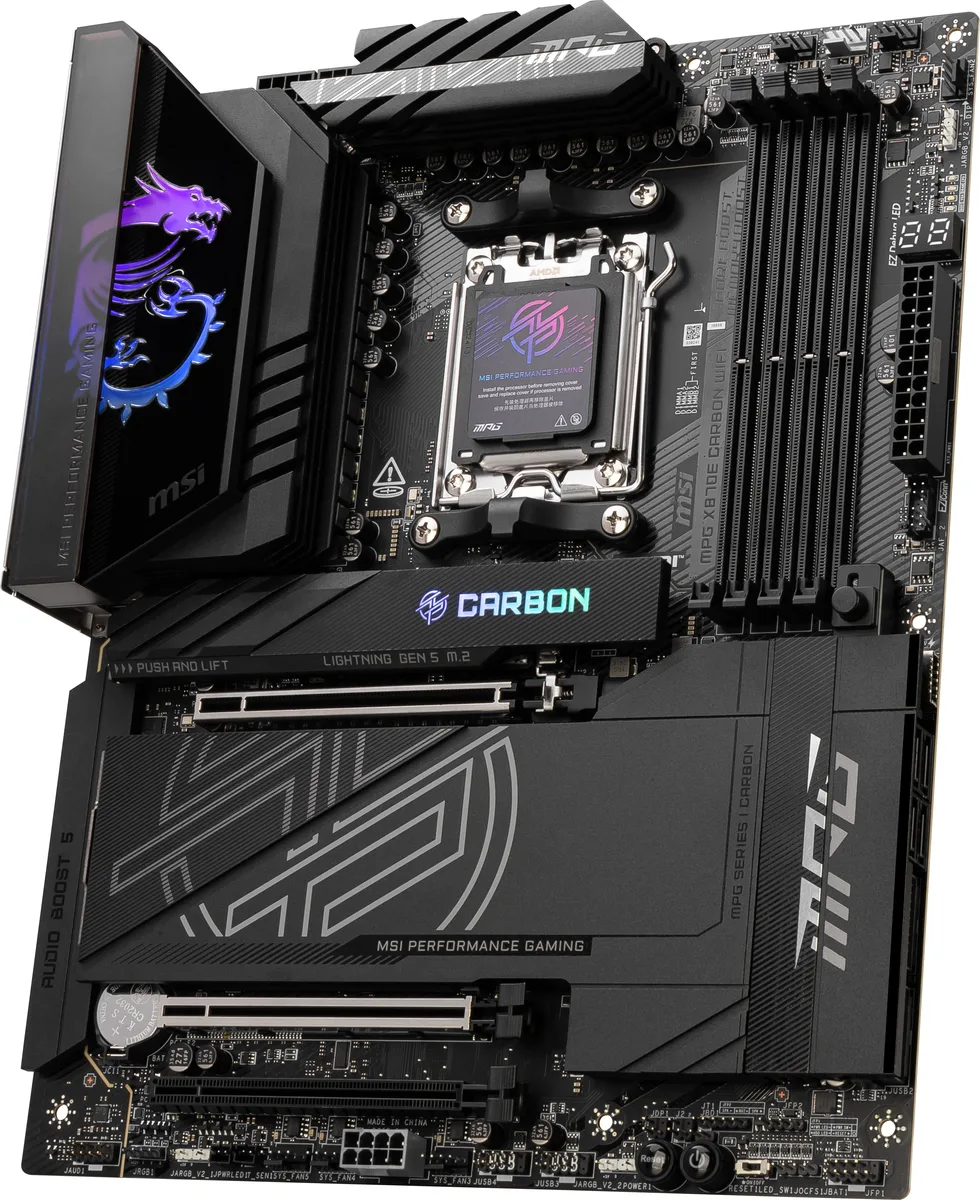

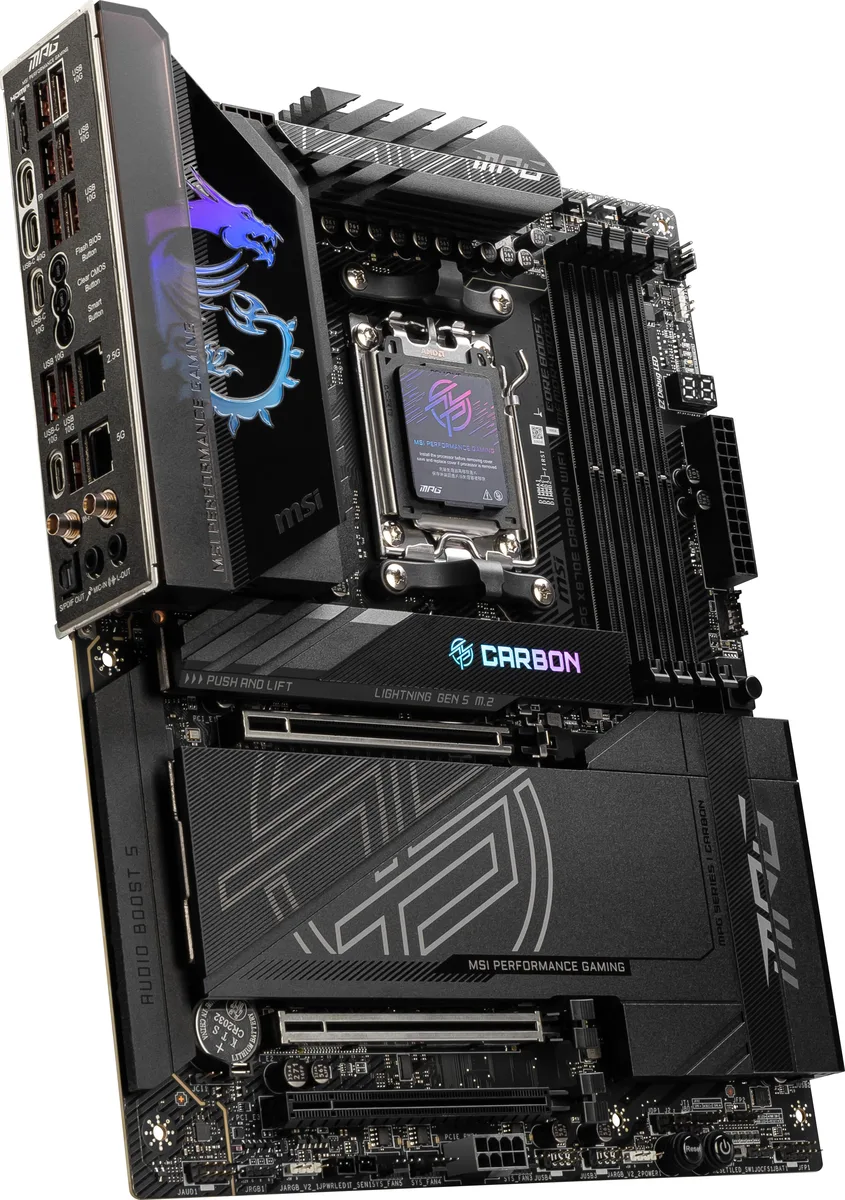

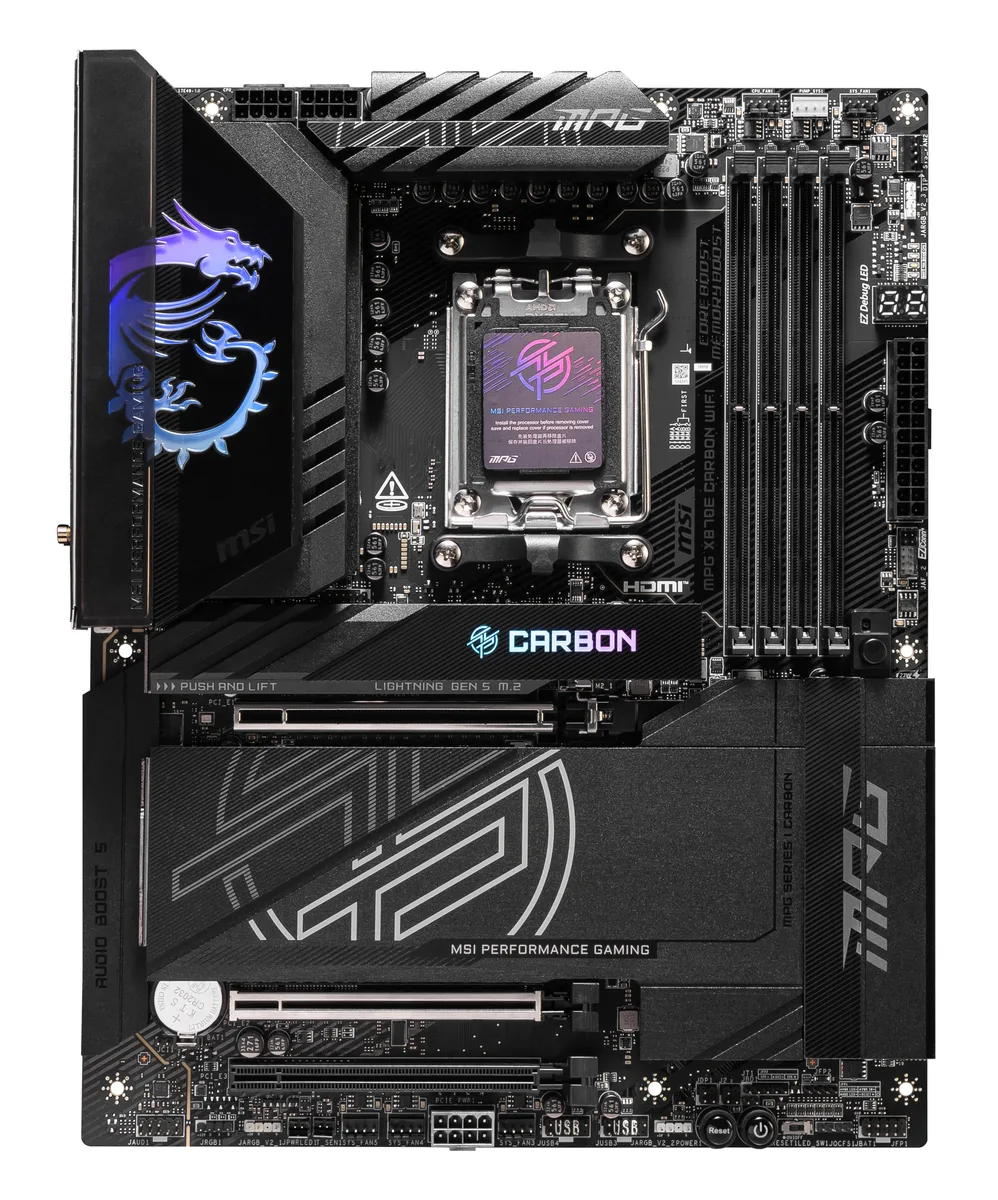

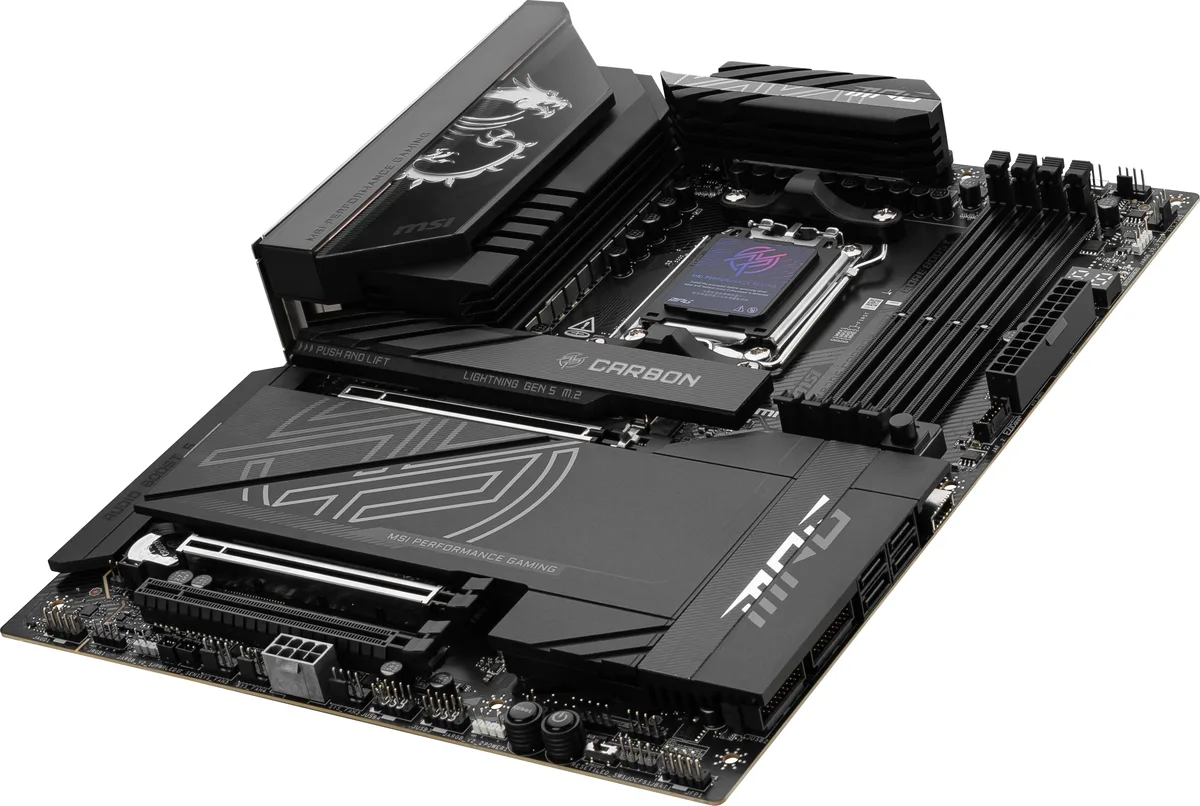

Black ATX motherboard with carbon-finish heatsinks and silver accents

MSI

MSI MPG X870E CARBON WIFI AMD motherboard

SKU CH-D72X-WV43P MPN MPG X870E CARBON WIFI

ATX AMD X870E board with 18-phase 110A VRM, DDR5 up to 8400 MT/s, PCIe 5.0 x16, four M.2 slots, Wi-Fi 7 and 5G LAN

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 /
  • Maximum Memory Supported256GB

Option MPG X870E CARBON WIFI

Struck-through versions exist but are not stocked here.

  • Supports AMD Ryzen 9000, 8000 and 7000 series processors on AM5 socket
  • 18 Duet Rail power system with 110A Smart Power Stages for stable CPU delivery
  • DDR5 memory up to 8400 MT/s overclocked via AMD EXPO profiles
  • PCIe 5.0 x16 graphics slot plus four M.2 slots with two Gen5 from CPU
  • Wi-Fi 7 with 320 MHz channel and 5G LAN for high-speed networking

Platform Ready

The MSI MPG X870E CARBON WIFI is an ATX motherboard built on the AMD X870E chipset for AM5 socket processors. It supports Ryzen 9000, 8000 and 7000 series CPUs with an 18 duet rail power system rated at 110A per smart power stage. Four DDR5 slots accept up to 256GB of memory with EXPO profiles reaching 8400 MT/s overclocked speeds.

Expansion Layout

The board delivers PCIe 5.0 x16 from the CPU for graphics and two CPU-linked M.2 slots at Gen5 x4 for 2260 or 2280 NVMe drives. A chipset-driven PCIe 4.0 x1 slot and two additional M.2 connectors expand storage options while four SATA 6Gb/s ports handle legacy drives. Networking combines a 5G LAN port with Wi-Fi 7 using a 320MHz channel for up to 5.8Gbps wireless throughput.

Build Checklist

Verify your chassis fits ATX dimensions and provides clearance for the extended heatsink and heat-pipe assembly. Confirm the power supply includes enough 8-pin CPU connectors for the 18-phase VRM. Ensure your chosen Ryzen processor generation matches the lane-splitting rules for the second PCIe x16 slot and the second M.2 slot. Check cooler mounting compatibility with the AM5 socket keep-out zone.

Highlights

  • Supports AMD Ryzen 9000, 8000 and 7000 series processors on AM5 socket
  • 18 Duet Rail power system with 110A Smart Power Stages for stable CPU delivery
  • DDR5 memory up to 8400 MT/s overclocked via AMD EXPO profiles
  • PCIe 5.0 x16 graphics slot plus four M.2 slots with two Gen5 from CPU
  • Wi-Fi 7 with 320 MHz channel and 5G LAN for high-speed networking

Specifications

BrandMSI
ModelMPG X870E CARBON WIFI
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
Memory FeatureMemory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen 9000 Series Processors max. overclocking frequency:
- 1DPC 1R Max speed up to 8400+ MT/s
- 1DPC 2R Max speed up to 6400+ MT/s
- 2DPC 1R Max speed up to 6400+ MT/s
- 2DPC 2R Max speed up to 4800+ MT/s
PCI Express 5.0 x16PCI_E1 slot (From CPU): Support up to PCIe 5.0 x16
PCI_E2 slot (From CPU): Support up to PCIe 5.0 x4
* Supports x16/x0 or x8/x4 (For Ryzen 9000/7000 Series processors)
* Supports x8/x0 (For Ryzen 7 8700G and Ryzen 5 8600G processor)
* Supports x4/x0 (For Ryzen 5 8500G processor)
PCI Express x4PCI_E3 slot (From X870E chipset): Supports up to PCIe 4.0 x1
Other Slots* PCI_E1 & PCI_E2 & M2_2 share the bandwidth. PCI_E1 will run at x8 speed when installing device in the PCI_E2 or M2_2 slot.
Serial ATA (SATA)4 x SATA 6Gb/s
M.24 x M.2 slots (Key M)
M2_1 slot (From CPU)
- Supports up to PCIe 5.0 x4
- Supports 2260/2280 storage devices
M2_2 slot (From CPU)
- Supports up to PCIe 5.0 x4
- Supports 2260/2280 storage devices
M2_3 slot (From Chipset)
- Supports up to PCIe 4.0 x4
- Supports 2280/22110 storage devices
M2_4 slot (From Chipset
- Supports up to PCIe 4.0 x4
- Supports 2260/2280 storage devices
* PCI_E1 & PCI_E2 & M2_2 share the bandwidth. PCI_E1 will run at x8 speed when installing device in the PCI_E2 or M2_2 slot.
SATA RAIDSupports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Additional RAID ControllerSupports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Audio ChipsetRealtek ALC4080
Audio Channels7.1 Channels
LAN ChipsetRealtek 8126 5Gbps LAN controller
Second LAN ChipsetRealtek 8125 2.5Gbps LAN controller
Max LAN Speed5Gbps + 2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4

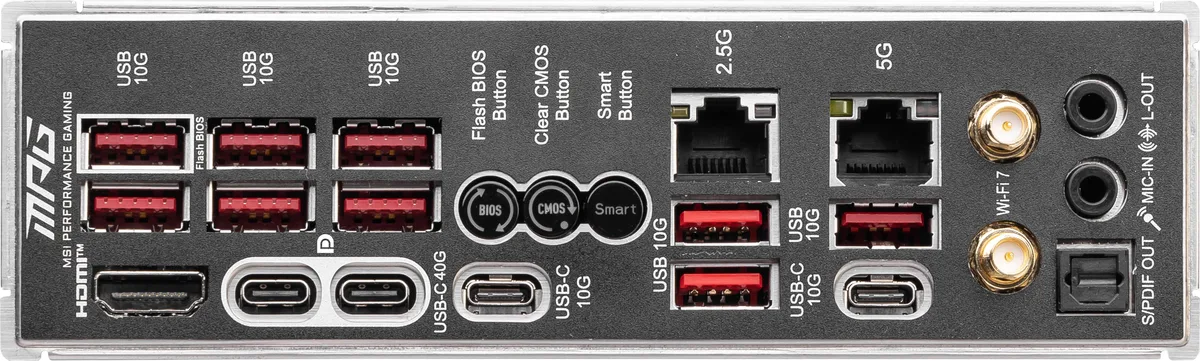

Back I/O Ports2 x USB 10Gbps Type A (From X870E Chipset)
4 x USB 10Gbps Type A (From RTS5420)
1 x HDMI port
2 x USB 40Gbps Type-C (From CPU/ASM4242)
2 x USB 10Gbps Type C (1 from CPU/ 1 from X870E Chipset)
3 x USB 10Gbps Type A (1 from CPU/ 1 from X870E Chipset)
1 x Clear CMOS Button
1 x Flash BIOS Button
1 x Smart Button
1 x 5G LAN (RJ45) port
1 x 2.5G LAN (RJ45) port
2 x Wi-Fi Antenna connectors
2 x audio jacks
1 x Optical S/PDIF Out connector
Other ConnectorsAMD X870 Chipset
- 1x USB 3.2 Gen 2x2 20Gbps Type-C connectors Supports up to 27W fast charging
- 2x USB 3.2 Gen 1 5Gbps connectors Supports additional 4 USB 3.2 Gen 1 5Gbps ports
- 2x USB 2.0 Type-A connectors Supports additional 4 USB 2.0 ports
Fan Connectors
- 1x 4-pin CPU fan connector
- 1x 4-pin PUMP_SYS fan connectors
- 5x 4-pin system fan connectors
System Connectors
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 1x 2-pin Thermal sensor connectors
- 1x EZ Conn-Header V2 (JAF_2)
Jumpers
- 1x Clear CMOS jumper
- 1x OC safe boot j
Form FactorATX
LED Lighting1 x 4-pin RGB LED connector
3 x 3-pin A-RAINBOW V2 (ARGB Gen2) LED connectors
4 x EZ Debug LED
1 x 2-Digit Debug Code LED
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Power Connector (ATX_PER)
2 x 8-pin Power Connector (CPU_PWR)
1 x 8-pin Power Connector (PCIE_PWR)
BIOS Feature1 x 256 Mb flash
UEFI AMI BIOS
ACPI 6.4, SMBIOS 3.7
Multi-language
SoftwareDrivers
MSI Center
Acrobat
Adobe Creative Cloud
AIDA64 Extreme-MSI Edition
CPU-Z MSI GAMING
MSI App Player(BlueStacks)
Norton 360
Voicemod
FeaturesEZ DIY
- Magnetic M.2 Shield Frozr
- EZ M.2 Clip II
- EZ PCIe Release
- Smart Button
- Flash BIOS Button
- Clear CMOS Button
- Pre-installed I/O Shield
- EZ Antenna
- EZ Front Panel Cable
- EZ Conn-Design
- PCI-E Steel Armor II
- EZ Digi-Debug LED
- EZ LED Control (Switch)
Thermal Features
- Heat-pipe Design
- Extended Heatsink Design
- M.2 Shield Frozr
- 7W/mK MOSFET thermal pad
- 5W/mK Extra choke pad
- FAN Headers (CPU*1 + PUMP_SYS*1 + SYSTEM*5)
Performance
- Core Boost
- VRM Power Design (VCore
- M.2 Shield Frozr
- 7W/mK MOSFET thermal pad
- Choke thermal pad
- Fan headers (CPU +
Shipping weight2.56 kg
Package size343 × 269 × 71 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 110A Smart Power Stages or the 7W/mK MOSFET thermal pads need replacement after extended use?

The 110A Smart Power Stages and 7W/mK thermal pads are soldered and bonded components designed for the board's lifetime; they do not require scheduled replacement.

What limits sustained loads first — the 18 Duet Rail Power System or the M.2 Shield Frozr II cooling?

The 18 Duet Rail Power System with 110A stages sets the ceiling for CPU current delivery, while the extended heatsink and heat-pipe manage VRM thermals under continuous load.

How loud and hot does the VRM heatsink get when the board runs all day with Wi-Fi 7 and dual LAN active?

The extended heatsink with heat-pipe and 7W/mK pads dissipates VRM heat passively; fan headers supply up to 3A for active airflow, keeping noise dependent on chosen fans rather than the board itself.
