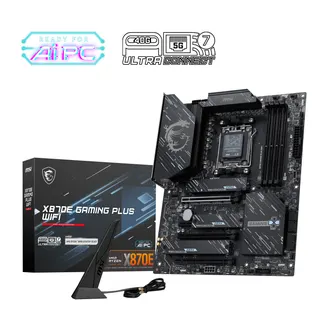

ATX motherboard with black PCB, silver heatsinks, AM5 socket, four DDR5 slots, multiple M.2 shields, rear I/O panel

MSI

MSI X870E GAMING PLUS WIFI AMD motherboard

SKU CH-XF6C-EG66Y MPN X870E GAMING PLUS WIFI

ATX motherboard for AMD Ryzen 7000, 8000 and 9000 series processors with DDR5 memory up to 8200 MT/s, PCIe 5.0, Wi-Fi 7 and USB 40G

  • CPU Socket TypeAM5
  • CPU TypeSupports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processo
  • ChipsetAMD X870E
  • Number of Memory Slots4x DDR5 UDIMM, Maximum Memory Capacity 256GB
  • Memory StandardMemory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JED
  • Maximum Memory Supported256GB

Option X870E GAMING PLUS WIFI

Struck-through versions exist but are not stocked here.

  • Supports AMD Ryzen 9000, 8000 and 7000 series processors
  • DDR5 memory overclocking up to 8200 MT/s with 256 GB maximum capacity
  • PCIe 5.0 x16 slot delivers 128 GB/s bandwidth for graphics cards
  • Built-in USB 40G port provides 40 Gbps transmission speed
  • Wi-Fi 7 and 5G LAN for high-speed wireless and wired networking

AM5 socket Ryzen 9000/8000/7000 board

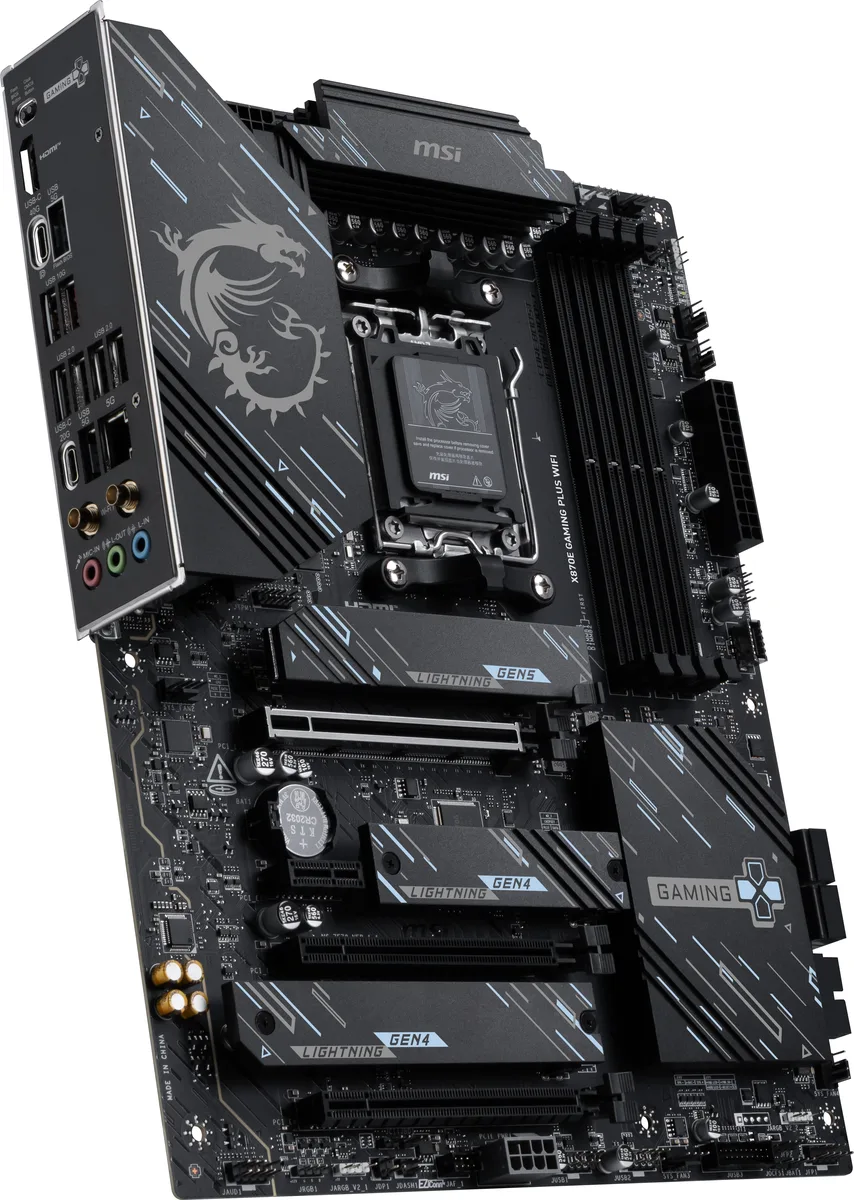

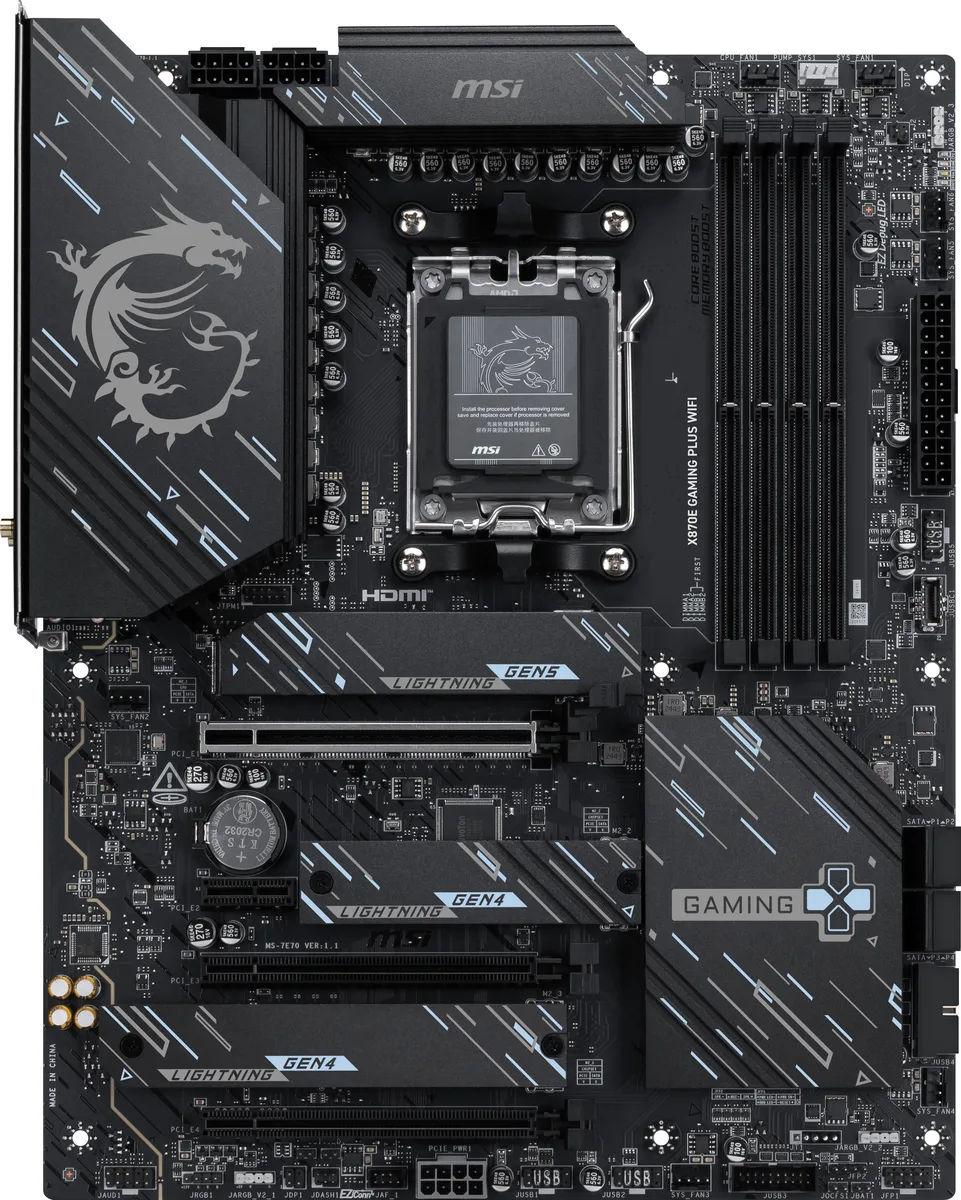

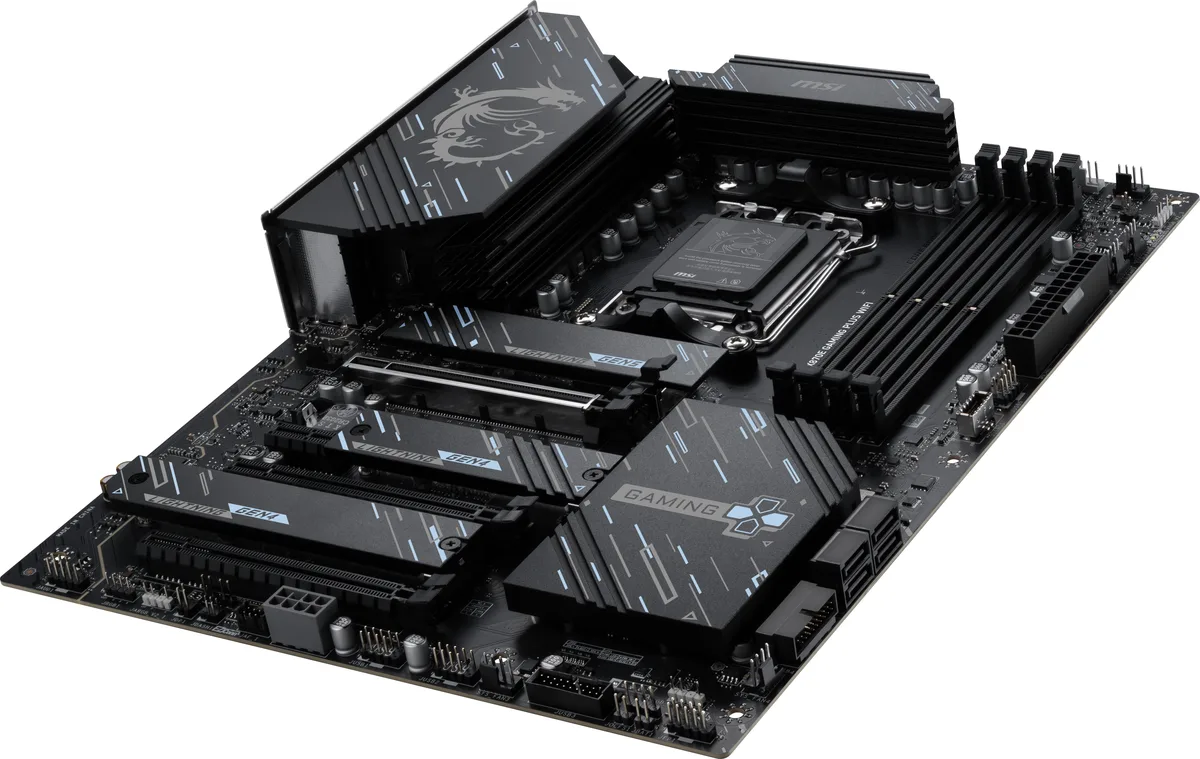

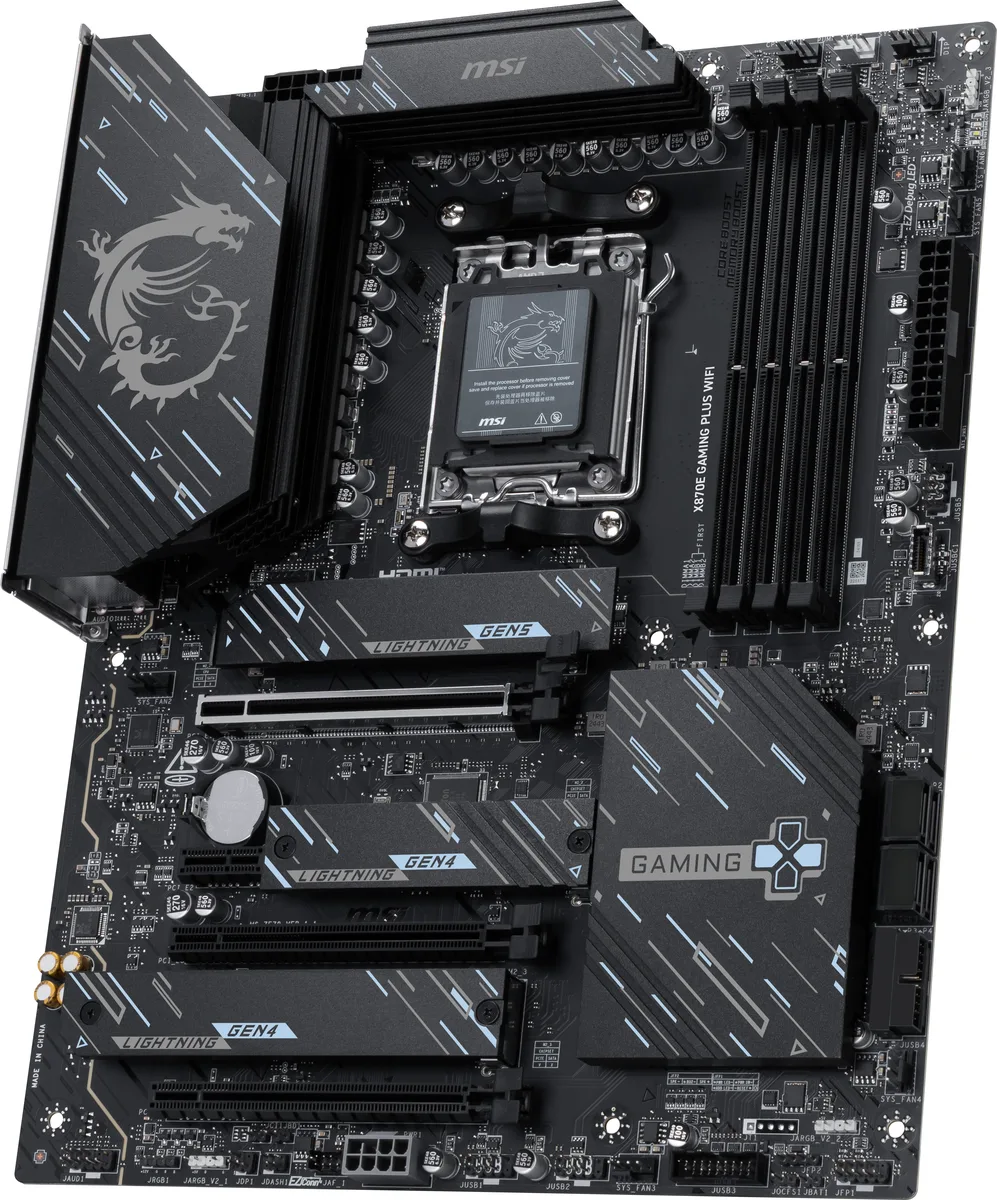

The MSI X870E GAMING PLUS WIFI is an ATX motherboard built around the AMD X870E chipset and AM5 socket. It supports Ryzen 9000, 8000 and 7000 series desktop processors with a 14 Duet Rail power system rated at 60A per stage. The board provides four DDR5 slots for up to 256GB of memory and includes Wi-Fi 7, 5G LAN and a USB 40G port.

Compatibility checklist before ordering

Verify that your CPU is a Ryzen 9000, 8000 or 7000 series processor for the AM5 socket. Confirm your memory kit is DDR5 non-ECC unbuffered UDIMM; supported JEDEC speeds are 5600 to 4800 MT/s with overclocked profiles up to 8200 MT/s depending on DIMM population. Ensure your case accepts ATX form factor and that the power supply provides dual 8-pin CPU connectors for the 14-phase design.

Build integration and expansion

The primary PCIe 5.0 x16 slot and the top M.2_1 slot (2280/2260) connect directly to the CPU for maximum GPU and NVMe bandwidth. Two additional chipset-linked M.2 slots (2280/2260) and four SATA 6Gb/s ports handle extra storage, with RAID 0, 1, 10 for SATA and RAID 0, 1, 5 for M.2 on Ryzen 9000. Secondary PCIe 4.0 x16, PCIe 3.0 x16 and PCIe x1 slots provide add-in card flexibility. The USB 40G port frees up high-speed peripheral connectivity.

Highlights

  • Supports AMD Ryzen 9000, 8000 and 7000 series processors
  • DDR5 memory overclocking up to 8200 MT/s with 256 GB maximum capacity
  • PCIe 5.0 x16 slot delivers 128 GB/s bandwidth for graphics cards
  • Built-in USB 40G port provides 40 Gbps transmission speed
  • Wi-Fi 7 and 5G LAN for high-speed wireless and wired networking

Specifications

BrandMSI
ModelX870E GAMING PLUS WIFI
Part NumberX870E GAMING PLUS WIFI
CPU Socket TypeAM5
CPU TypeSupports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
ChipsetAMD X870E
Number of Memory Slots4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory StandardMemory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6400+ MT/s
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedNon-ECC
Memory FeatureSupports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
• The DIMM slots on this motherboard have double-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibili
PCI Express 5.0 x16PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
PCI Express 4.0 x161 x PCI Express 4.0 x16
PCI Express 3.0 x161 x PCI Express 3.0 x16
PCI Express x11 x PCI Express x1
PCI SlotsPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
Serial ATA (SATA)4 x SATA 6Gb/s
M.23x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
*Please refer to the manual for M.2 SSD heatsink restrictions.
SATA RAID• Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
*RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
Audio ChipsetRealtek ALC897
Audio Channels7.1-Channel High Definition Audio
LAN ChipsetRealtek® 8126VB 5G LAN
Wireless LANWi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
BluetoothSupports Bluetooth® 5.4**, MLO, 4KQAM
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
HDMI1x HDMI™
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
USB 3.12x USB 10Gbps Type A
USB 3.02x USB 5Gbps Type A
USB 1.1/2.04 x USB 2.0
USB Type-C1x Type-C DisplayPort USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 120Hz* (1x USB 40Gbps Type C)
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
1x USB 20Gbps Type C (Rear)
Audio Ports3 Ports
Onboard USB6x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
Other Connectors1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
Form FactorATX
Dimensions (W x L)243.84mmx304.8mm
Windows 11Support for Windows® 11 64-bit
FeaturesLightning USB 40G
Lightning Gen 5
EZ M.2 Shield Frozr II
Triple M.2 Connectors
EZ PCIe Clip II
Extended Heatsink Design
Latest DDR5 Memory
5G Network Solution
Audio Boost
4x EZ Debug LED
1x EZ Memory Detection LED
Shipping weight2.43 kg
Package size343 × 279 × 76 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What is included in the box and what must I buy separately?

The motherboard is supplied with I/O shield, SATA cables, M.2 screws and documentation. You must purchase an AMD Ryzen 7000/8000/9000 series CPU, DDR5 memory modules, storage drives and a graphics card separately.

Which M.2 slot should I use for the fastest NVMe drive?

Use the M.2_1 slot connected to the CPU for PCIe 5.0 x4 speeds up to 128 GB/s; M.2_2 and M.2_3 run at PCIe 4.0 x4 from the chipset.

What does the 8200 MT/s DDR5 figure mean once the board is built?

With a Ryzen 9000 processor and a single-rank DIMM in one slot per channel the board can reach 8200 MT/s overclocked; two ranks per channel drops the ceiling to 6400 MT/s, while JEDEC default is 5600 MT/s.
