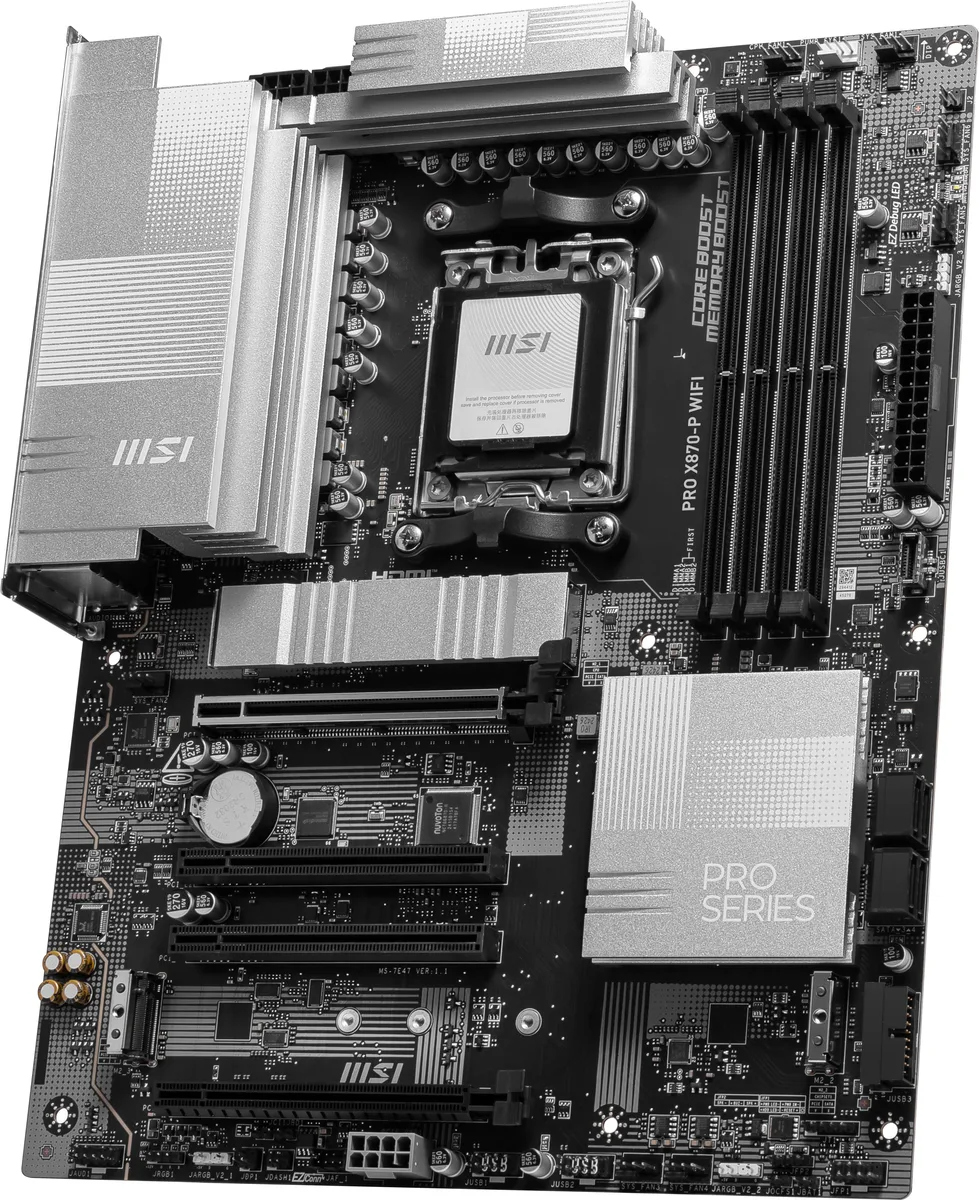

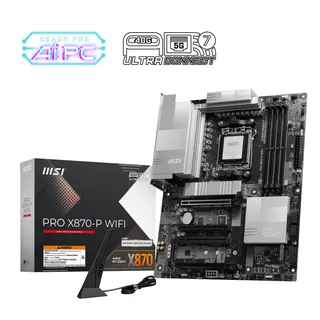

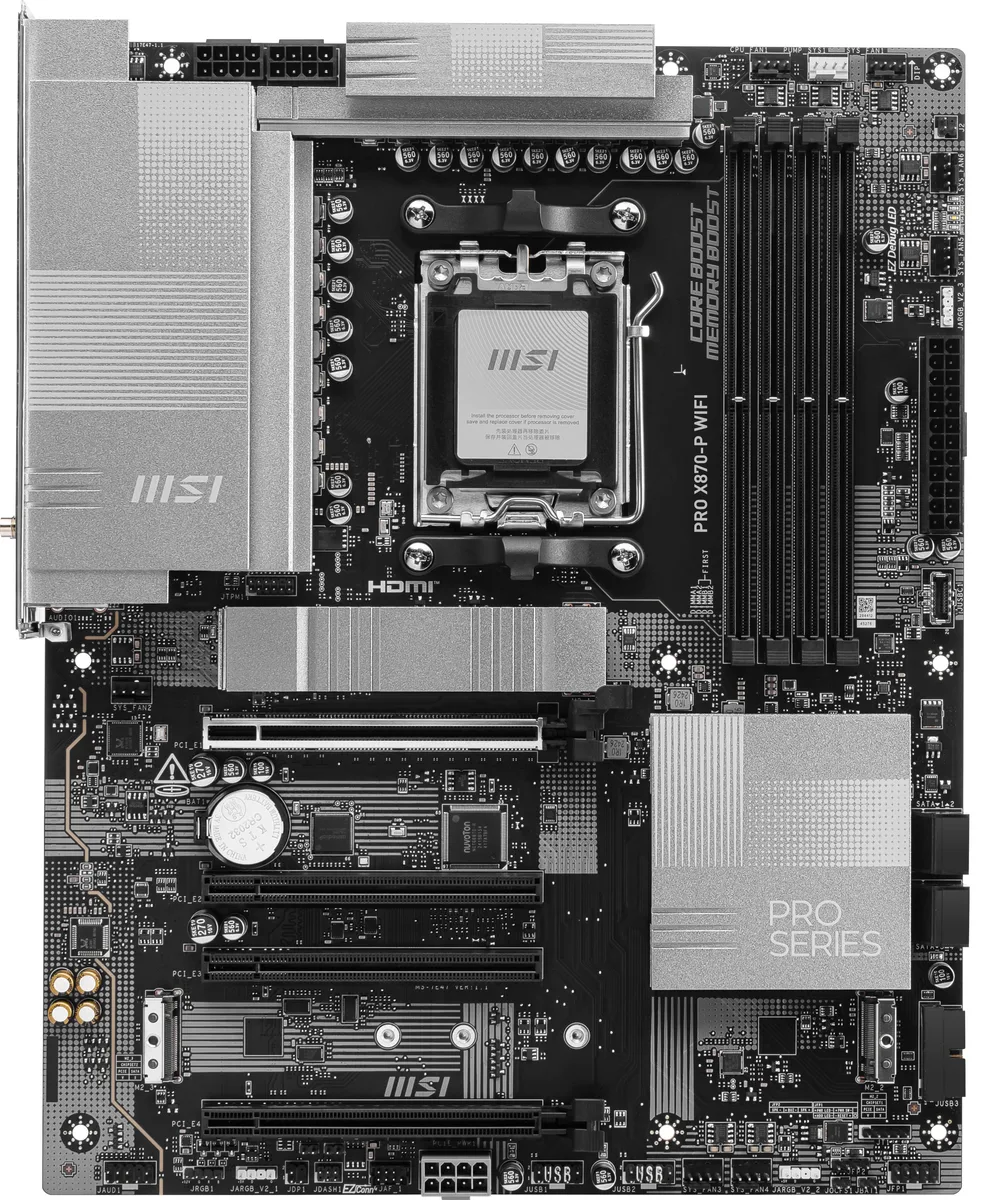

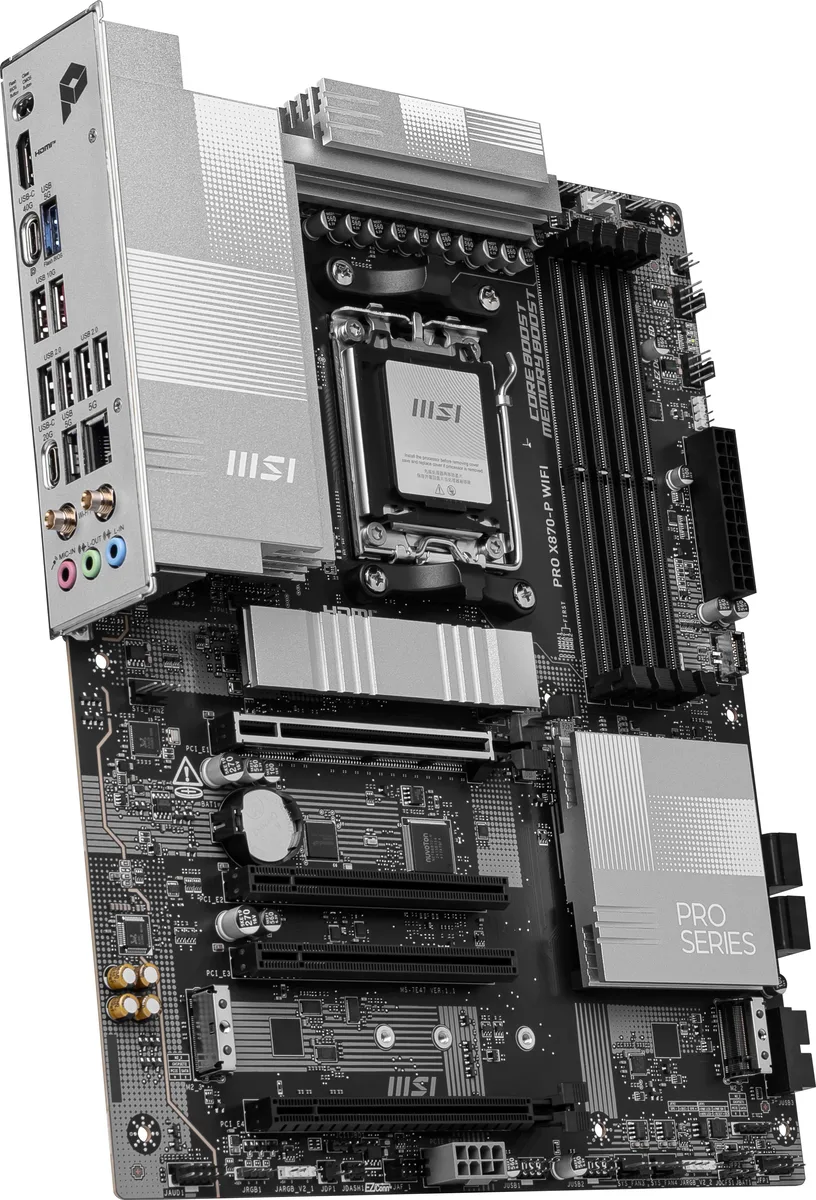

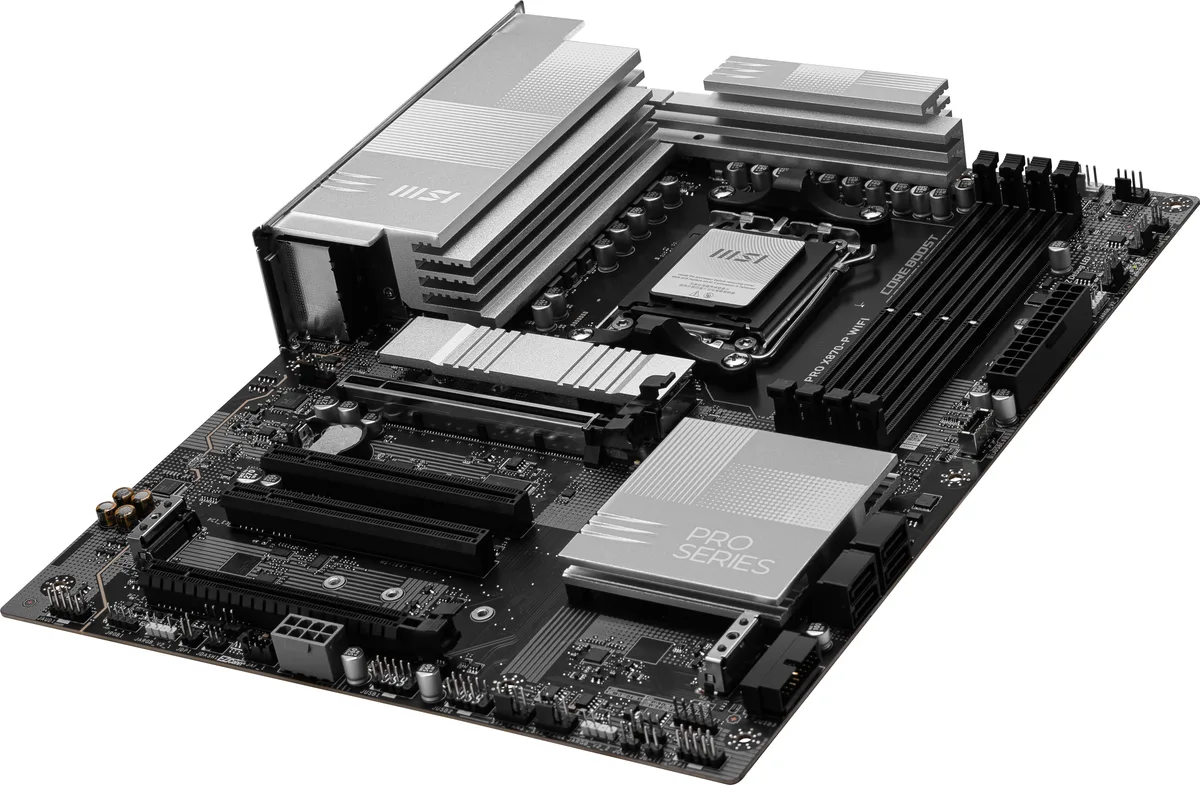

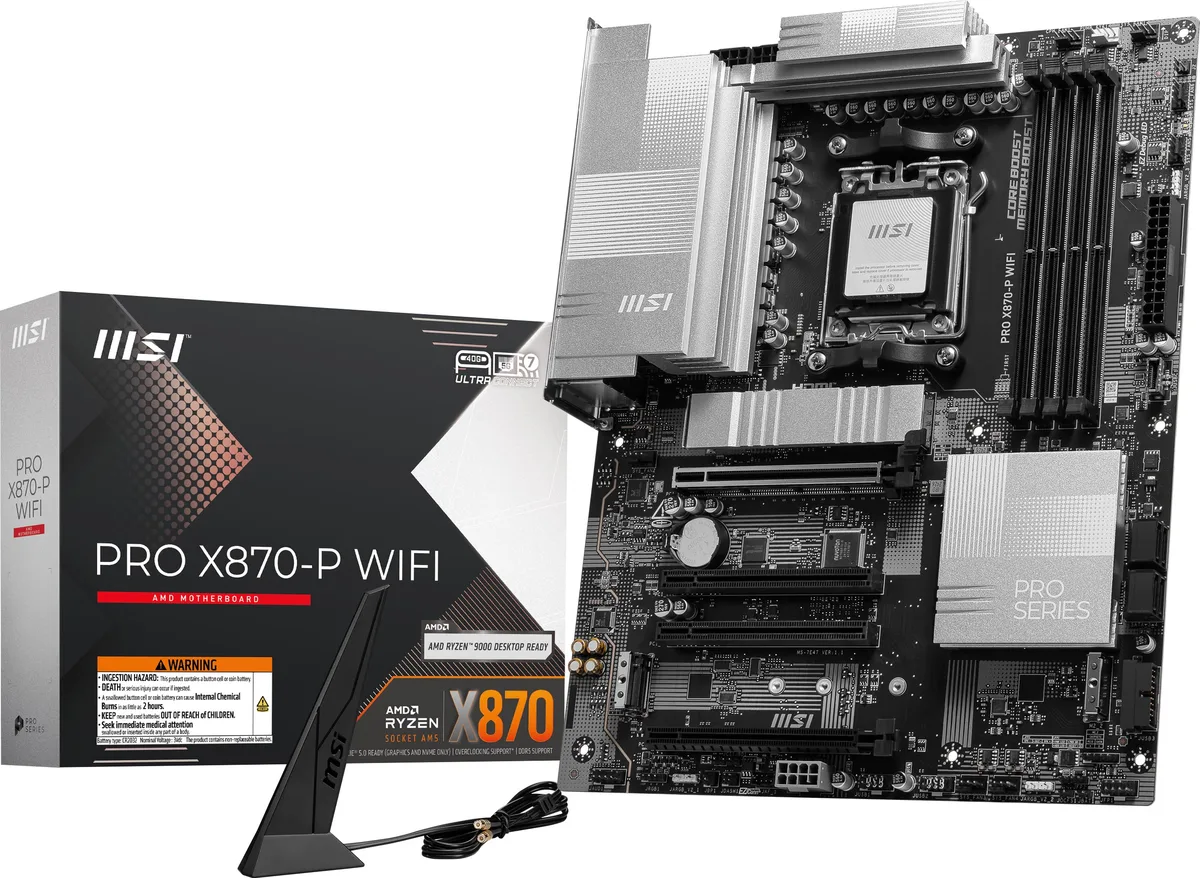

Rectangular ATX motherboard in matte black with silver heatsinks, four DDR5 slots, three M.2 covers, rear I/O shield and dual antenna

MSI

MSI PRO X870-P WIFI AMD motherboard

SKU CH-VREP-G169X MPN PRO X870-P WIFI

ATX AM5 board for Ryzen 7000/8000/9000 with 14-phase 60A VRM, DDR5 up to 8200 MT/s, PCIe 5.0 x16, triple M.2, Wi-Fi 7 and 5G LAN

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD X870
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 5600+ (OC)
  • Maximum Memory Supported256GB

Option PRO X870-P WIFI

Struck-through versions exist but are not stocked here.

  • Supports Ryzen 9000, 8000 and 7000 CPUs on AM5 socket
  • 14 duet rail power stages rated at 60A each for stable delivery
  • DDR5 memory overclocked to 8200 MT/s with Memory Boost technology
  • PCIe 5.0 x16 slot plus Gen5 M.2 for 128GB/s bandwidth
  • Wi‑Fi 7 with 320MHz channel reaching 5.8Gbps and 5G LAN

Target platform

The MSI PRO X870-P WIFI is an ATX motherboard built on the AMD X870 chipset for AM5 socket processors. It supports Ryzen 7000, 8000 and 9000 series CPUs with a 14 Duet Rail Power System rated at 60A per stage. Four DDR5 slots accept up to 256GB of memory.

Upgrade path

Moving from an older AM5 board adds PCIe 5.0 x16 from the CPU, a PCIe 5.0 M.2 slot and Wi-Fi 7 with 320MHz channels. The jump is worthwhile when you need 5G LAN, USB 40Gbps or DDR5 speeds beyond 5600 MT/s.

Compatibility checks

Verify your case fits ATX dimensions and that your CPU cooler clears the extended heatsink. Confirm the power supply provides an 8-pin plus 4-pin EPS connector for the 14-phase VRM. Check M.2 lengths: slot one takes 2260 and 2280, slot three takes 2280 and 110.

Highlights

  • Supports Ryzen 9000, 8000 and 7000 CPUs on AM5 socket
  • 14 duet rail power stages rated at 60A each for stable delivery
  • DDR5 memory overclocked to 8200 MT/s with Memory Boost technology
  • PCIe 5.0 x16 slot plus Gen5 M.2 for 128GB/s bandwidth
  • Wi‑Fi 7 with 320MHz channel reaching 5.8Gbps and 5G LAN

Specifications

BrandMSI
ModelPRO X870-P WIFI
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD X870
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 5600+ (OC)
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO
ECC SupportedSupports ECC UDIMM memory (non-ECC mode)
Buffer SupportedUn-buffered
Memory FeatureMemory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen 9000 Series Processors max. overclocking frequency:
- 1DPC 1R Max speed up to 8200+ MT/s
- 1DPC 2R Max speed up to 6400+ MT/s
- 2DPC 1R Max speed up to 6400+ MT/s
- 2DPC 2R Max speed up to 4800+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPO
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
PCI Express 5.0 x16PCI_E1 supports up to PCIe 5.0 x16 (From CPU)
PCI Express x4PCI_E4* slot (From X870 chipset)
PCI_E4 supports up to PCIe 4.0 x4
PCI Express x1PCI_E2 & PCI_E3 (From Chipset X870, ASM2806) Supports up to PCIe 3.0 x1
Other Slots* PCI_E4 & M2_3 share the bandwidth. Default that PCI_E4 slot runs x2 when installing device into the M2_3 slot. Otherwise, PCI_E4 slot will run x4 when M2_3 has no device.
Serial ATA (SATA)4 x SATA 6Gb/s
M.2M2_1 slot (From CPU)
Supports up to PCIe 5.0 x4
Supports 2260/2280 storage devices
M2_2 (From X870 chipset)
Supports up to PCIe 4.0 x4
Supports 2280/110 storage devices
M2_3 slot (From X870 chipset) *
Supports up to PCIe 4.0 x2
Supports 2260/2280 storage devices
* PCI_E4 & M2_3 share the bandwidth. Default that PCI_E4 slot runs x2 when installing device into the M2_3 slot. Otherwise, PCI_E4 slot will run x4 when M2_3 has no device.
Audio ChipsetRealtek ALC897
Audio Channels7.1 Channels
LAN ChipsetRealtek 8126VB
Max LAN Speed5Gbps
Back I/O Ports1 x Flash BIOS button & Clear CMOS bottom
1 x HDMI port
1 x USB 40Gbps Type-C port (From CPU)
1 x USB 5Gbps Type-A port (1x from CPU, 1x from Chipset X870)
2 x USB 10Gbps Type-A ports (From Chipset X870)
4 x USB 2 Type-A ports (From GL850)
1 x 5G LAN (RJ45) port
1 x USB 20Gbps Type-C port (From Chipset X870)
2 x Wi-Fi Antenna connectors
3 x Audio jacks
Onboard USBAMD X870 Chipset
- 1 x USB 10Gbps Type-C connector
- 1 x USB 5Gbps connectors
Supports additional 2 USB 5Gbps ports
- 2 x USB 2.0 connector
Supports additional 4 USB 2.0 ports
Other ConnectorsFan Connectors
- 1x 4-pin CPU fan connector
- 1x 4-pin pump fan connector
- 6x 4-pin System fan connectors
- 1x 7-pin JAF1
System Connectors
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 1x Tuning Controller connector
Jumpers
- 1x Clear CMOS jumper
Form FactorATX
LED Lighting1 x 4-pin RGB LED connector
3 x 3-pin ARGB_V2 LED connectors
4 x EZ Debug LED
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pinPower Connector (ATX_PWR)
2 x 8-pin Power Connector (CPU_PWR)
1 x 8-pin Power Connector (PCIE_PWR)
BIOS Feature1x 256 Mb flash
UEFI AMI BIOS
ACPI 6.4, SMBIOS 3.5
Multi-language
SoftwareDrivers
MSI Center
7-ZIP
Acrobat
Adobe Creative Cloud
Adobe Redeem LauncherDropbox
AIDA64 Extreme-MSI Edition
CPU-Z MSI GAMING
Norton 360
Realtek Console
FeaturesMSI Center Features
- Mystic Light
- Frozr AI Cooling
- User Scenario
- True Color
- Live Update
- Hardware Monitoring
- Super Charger
- Devices Speed Up
- Smart Image Finder
- MSI Companion
- System Diagnosis
Performance
- Core Boost
- Dual CPU Power
- Memory Boost
- Lightning Gen 4 PCI-E Slot
- Lightning Gen 4 M.2 Slot
- 2oz Copper thickened PCB
DIY Friendly
- PCI-E Steel Armor
- EZ DEBUG LED
- EZ LED Control
Audio
- Audio Boost
RGB Support
- Mystic Light Extension (RGB)
- Ambient Devices Support
BIOS
- Click BIOS 5
Shipping weight1.81 kg
Package size343 × 267 × 70 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What are the ATX dimensions and mounting hole pattern for the PRO X870-P WIFI motherboard?

The board uses the standard ATX form factor with the usual nine mounting holes that align with any ATX case.

How do I install the EZ PCIe Clip II release mechanism on the primary PCIe 5.0 x16 slot?

Press the clip lever toward the rear I/O panel to unlock the graphics card, then pull the card straight up; the lever returns automatically.

Which M.2 slots share bandwidth and how does that affect future drive upgrades?

M2_3 and PCI_E4 share lanes; populating M2_3 drops PCI_E4 to x2, so plan additional Gen5 or Gen4 drives around that limitation.
