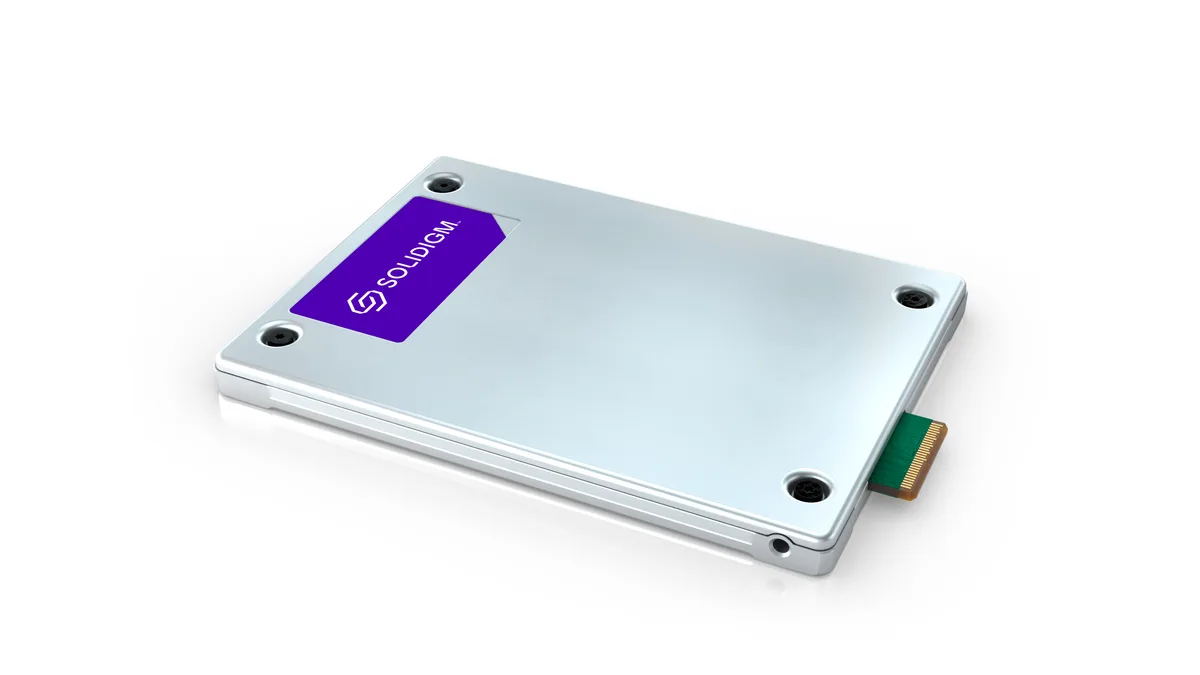

Rectangular silver E3.S 7.5mm enterprise SSD with edge connector and label

Solidigm

Solidigm D5-P5336 15.36TB E3.S 7.5mm PCIe 4.0 enterprise SSD SBFPFABV153TOF1

SKU CH-RMMQ-VP57D MPN SBFPFABV153TOF1

A 15.36 TB E3.S 7.5 mm PCIe 4.0 enterprise SSD with 192-layer QLC NAND, 7000 MBps sequential read, 3000 MBps sequential write, 1,005,000 random read IOPS, 29,900 random write IOPS.

  • Form FactorE3.S 7.5mm
  • Capacity15.36TB
  • Memory Components192 L QLC 3D NAND
  • InterfacePCI-Express 4.0
  • Max Sequential ReadUp to 7000 MBps
  • Max Sequential WriteUp to 3000 MBps

Option 15.36TB E3.S FIPS

Show 21 more configurations

Struck-through versions exist but are not stocked here.

  • Massive 15.36 TB capacity fits more data per server
  • PCIe 4.0 interface delivers up to 7000 MB/s sequential reads
  • 192-layer QLC 3D NAND enables high density in E3.S 7.5 mm form factor
  • FIPS-certified security protects sensitive workloads
  • 2,000,000-hour MTBF and 1,000 G shock rating ensure enterprise reliability

Capacity and form factor

This Solidigm D5-P5336 provides 15.36TB of storage in an E3.S 7.5mm form factor. It is built for data-centre servers that need high-density capacity in a compact, hot-pluggable slot. The drive uses 192-layer QLC 3D NAND and connects through a PCI-Express 4.0 x4 interface. It suits read-heavy workloads such as content delivery, analytics and warm-tier storage.

Upgrade path and workload fit

The drive replaces lower-capacity enterprise SSDs or hard-disk arrays where space and power are constrained. Its 0.51 DWPD endurance rating and 14.11 PBW total bytes written make the jump worthwhile for sequential-read workloads that rarely overwrite data. Random-write performance of 29,900 IOPS limits suitability for write-intensive databases or logging applications that demand higher sustained rewrite cycles.

Build integration and trade-offs

The E3.S 7.5mm design fits standard server backplanes without the bulk of traditional 2.5-inch or 3.5-inch bays. Active power draw reaches 21W while idle consumption sits at 5W, freeing thermal headroom in dense chassis. FIPS-certified encryption secures data at rest without a separate controller. Buyers needing higher write endurance or a different physical connector should evaluate alternative form factors.

Highlights

  • Massive 15.36 TB capacity fits more data per server
  • PCIe 4.0 interface delivers up to 7000 MB/s sequential reads
  • 192-layer QLC 3D NAND enables high density in E3.S 7.5 mm form factor
  • FIPS-certified security protects sensitive workloads
  • 2,000,000-hour MTBF and 1,000 G shock rating ensure enterprise reliability

Specifications

BrandSolidigm
ModelD5-P5336
Part NumberSBFPFABV153TOF1
Form FactorE3.S 7.5mm
Capacity15.36TB
Memory Components192 L QLC 3D NAND
InterfacePCI-Express 4.0
Max Sequential ReadUp to 7000 MBps
Max Sequential WriteUp to 3000 MBps
4KB Random Read1005000 IOPS (4K, QD256)
4KB Random Write29900 IOPS (16K, QD256)
Endurance0.51 DWPD (16K RW) / 14.11 PBW
MTBF2,000,000 hours
SecurityFIPS
Power Consumption (Idle)5W
Power Consumption (Active)21W
Operating Temperature0°C ~ +70°C
Max Shock Resistance1,000 G (Max) at 0.5 msec
Max Vibration ResistanceOperating: 2.17 GRMS (5 - 700 Hz) Max
Non-Operating: 3.13 GRMS (5 - 800 Hz) Max
Weight90g +/- 10g
Shipping weight0.17 kg
Package size140 × 110 × 17 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the E3.S 7.5mm form factor fit a standard E3.S drive bay?

Yes, the 7.5 mm height matches the standard E3.S specification for a 1U server chassis slot.

What is the correct insertion method for the PCIe 4.0 x4 edge connector?

Align the keyed edge connector with the E3.S backplane slot and press firmly until the latch clicks; the most common error is stopping before the latch engages.

When should I plan to replace the drive based on the 0.51 DWPD endurance rating?

At 0.51 DWPD the 15.36 TB drive delivers 14.11 PBW total writes; replace it once your cumulative written data approaches that figure.
