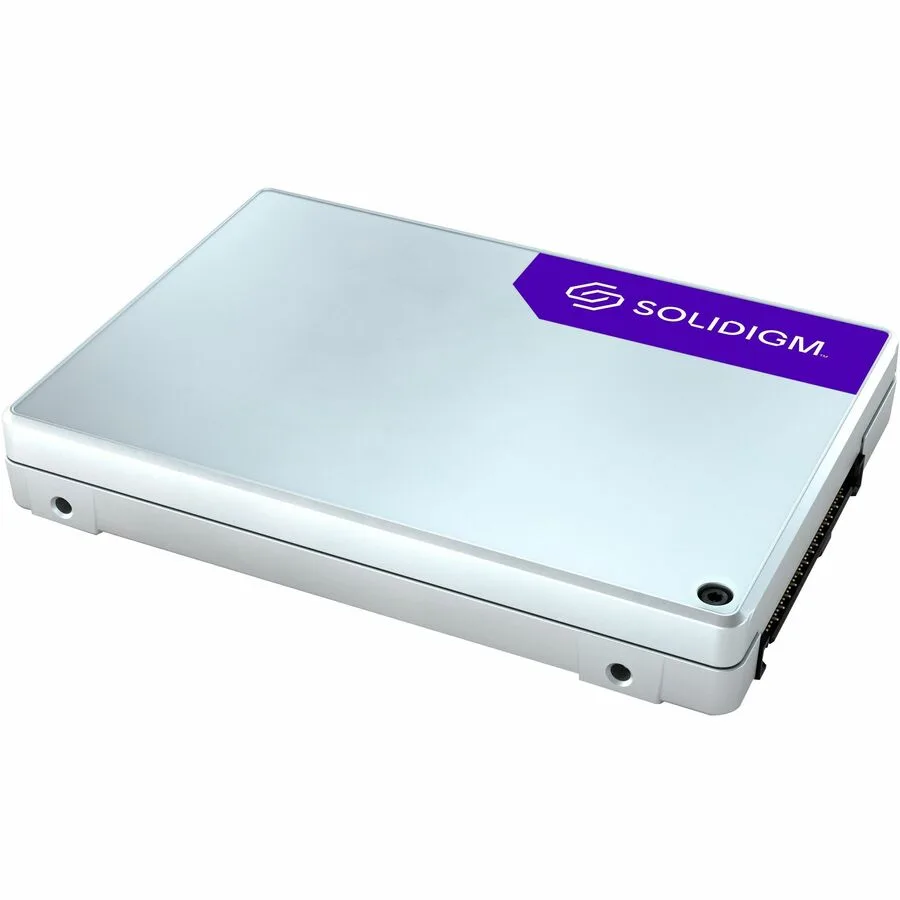

Rectangular U.2 15mm enterprise SSD with silver metal casing and label showing 61.44TB capacity

Solidigm

Solidigm D5-P5336 61.44TB U.2 15mm enterprise SSD SBFPF2BV614TOP1

SKU CH-PD7E-7YE2K MPN SBFPF2BV614TOP1

61.44TB U.2 15mm enterprise SSD with PCIe 4.0 x4 and 192-layer QLC 3D NAND for high-capacity data centre storage

  • Form FactorU.2 15mm
  • Capacity61.44TB
  • Memory Components192 L QLC 3D NAND
  • InterfacePCI-Express 4.0
  • MTBF2,000,000 hours
  • SecurityOpal

Option 61.44TB U.2 Opal

Show 21 more configurations

Struck-through versions exist but are not stocked here.

  • Massive 61.44TB capacity fits huge datasets in one U.2 slot
  • 192-layer QLC 3D NAND stores more bits per cell for density
  • PCI-Express 4.0 interface moves data at modern server speeds
  • 2,000,000-hour MTBF rating signals long operational life
  • Opal security encrypts data at rest without host overhead

Capacity and interface

This is a Solidigm D5-P5336 enterprise solid-state drive with 61.44TB of storage. It connects through a PCI-Express 4.0 x4 interface in a U.2 15mm form factor and uses 192-layer QLC 3D NAND. The drive carries an Opal security feature and is rated for 2,000,000 hours MTBF.

Suitable workloads and limits

The high capacity and QLC architecture suit read-intensive data-centre tasks such as content repositories, analytics archives or warm-tier storage. Write-heavy workloads, low-latency transactional databases or boot volumes that demand high endurance should consider drives built for mixed or write-intensive use.

Deciding specification

The PCI-Express 4.0 x4 interface determines whether this drive can be installed and perform at its rated speed; the host system must provide a compatible U.2 backplane or adapter that supports PCIe 4.0 signalling.

Highlights

  • Massive 61.44TB capacity fits huge datasets in one U.2 slot
  • 192-layer QLC 3D NAND stores more bits per cell for density
  • PCI-Express 4.0 interface moves data at modern server speeds
  • 2,000,000-hour MTBF rating signals long operational life
  • Opal security encrypts data at rest without host overhead

Specifications

BrandSolidigm
SeriesD5-P5336
ModelD5-P5336
Form FactorU.2 15mm
Capacity61.44TB
Memory Components192 L QLC 3D NAND
InterfacePCI-Express 4.0
MTBF2,000,000 hours
SecurityOpal
Operating Temperature0°C ~ +70°C
Max Shock Resistance1,000 G (Max) at 0.5 msec
Max Vibration ResistanceOperating: 2.17 GRMS (5 - 700 Hz) Max
Non-Operating: 3.13 GRMS (5 - 800 Hz) Max
Shipping weight8.70 kg
Package size437 × 318 × 144 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How does the 61.44TB capacity fit into a single U.2 15mm drive?

The 192-layer QLC 3D NAND stacks cells vertically, allowing 61.44TB to fit in the 15mm U.2 form factor without increasing physical size.

What does the PCI-Express 4.0 interface deliver in a live server?

PCI-Express 4.0 x4 provides up to 8 GB/s theoretical bandwidth, so sequential reads and writes scale with the controller and queue depth rather than the bus.

What does the 2,000,000-hour MTBF mean for daily operation?

MTBF is a statistical average across a population; it indicates design robustness for 24/7 workloads, not a guaranteed lifespan for any single drive.
