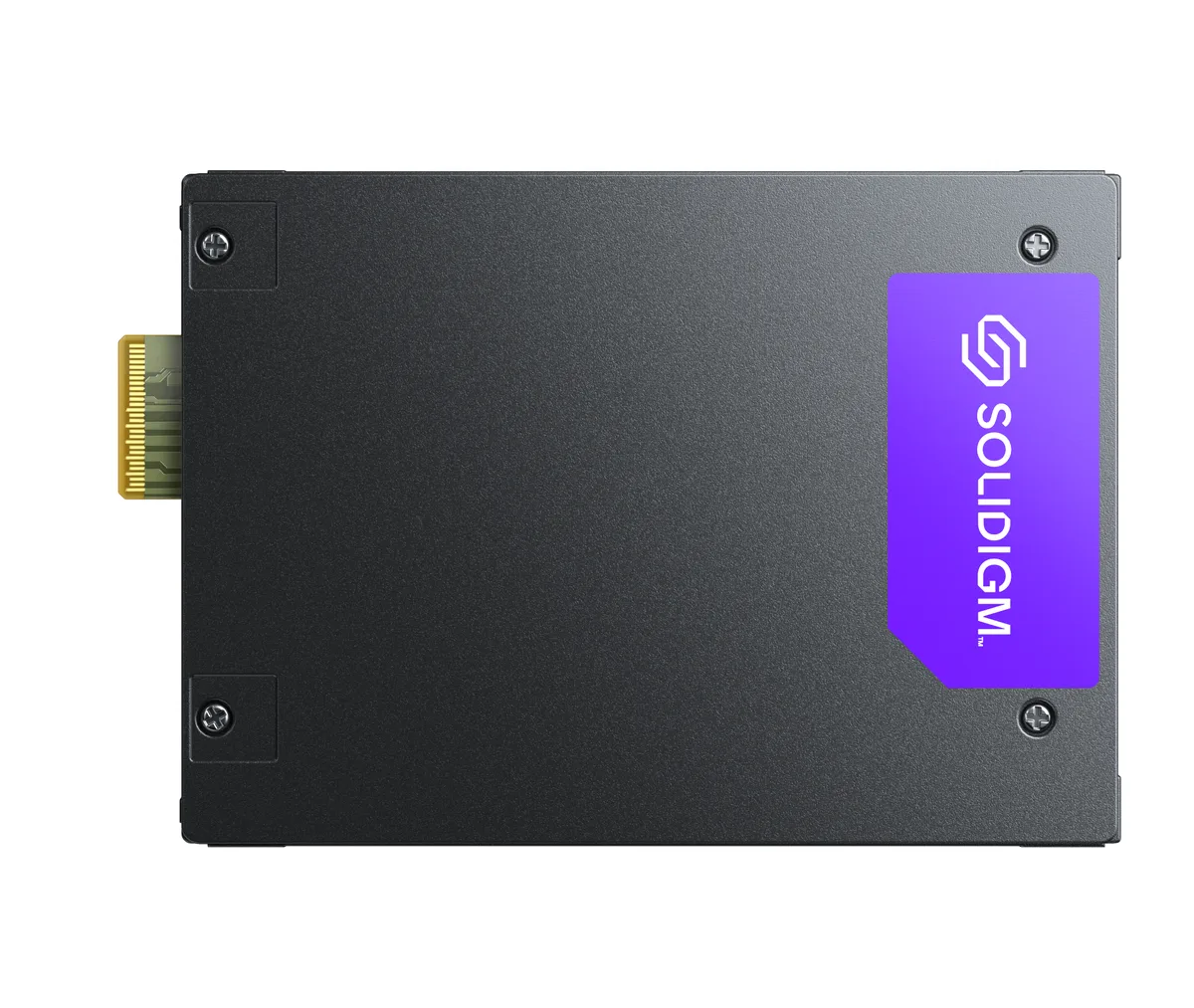

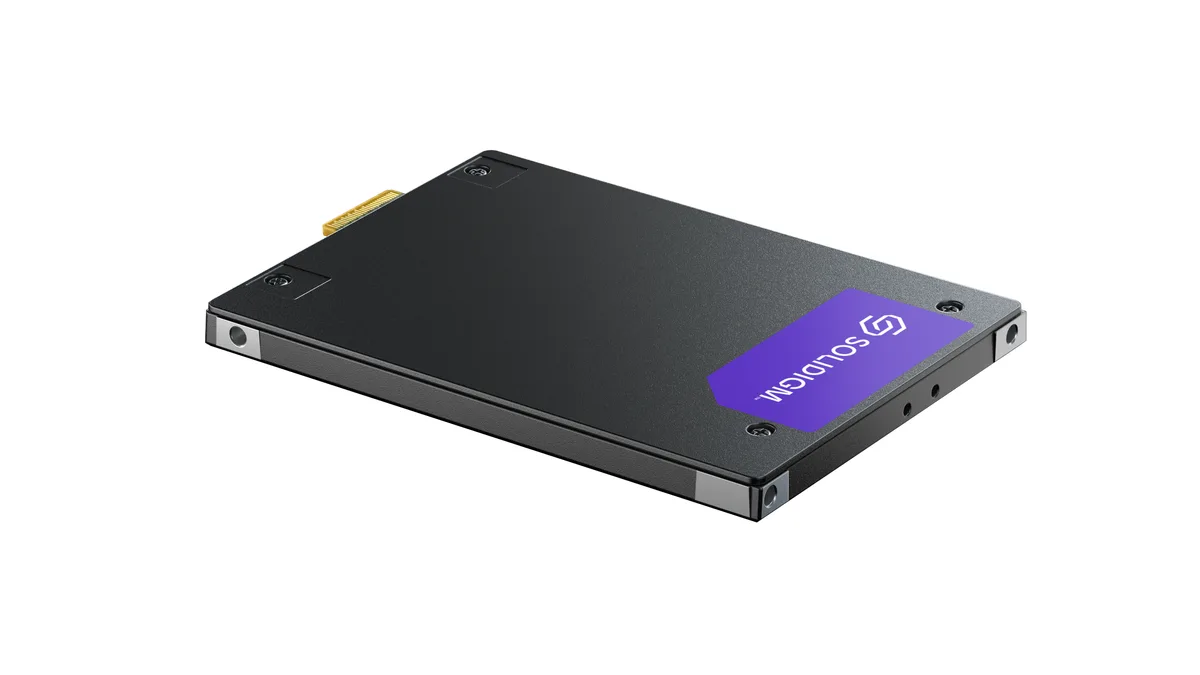

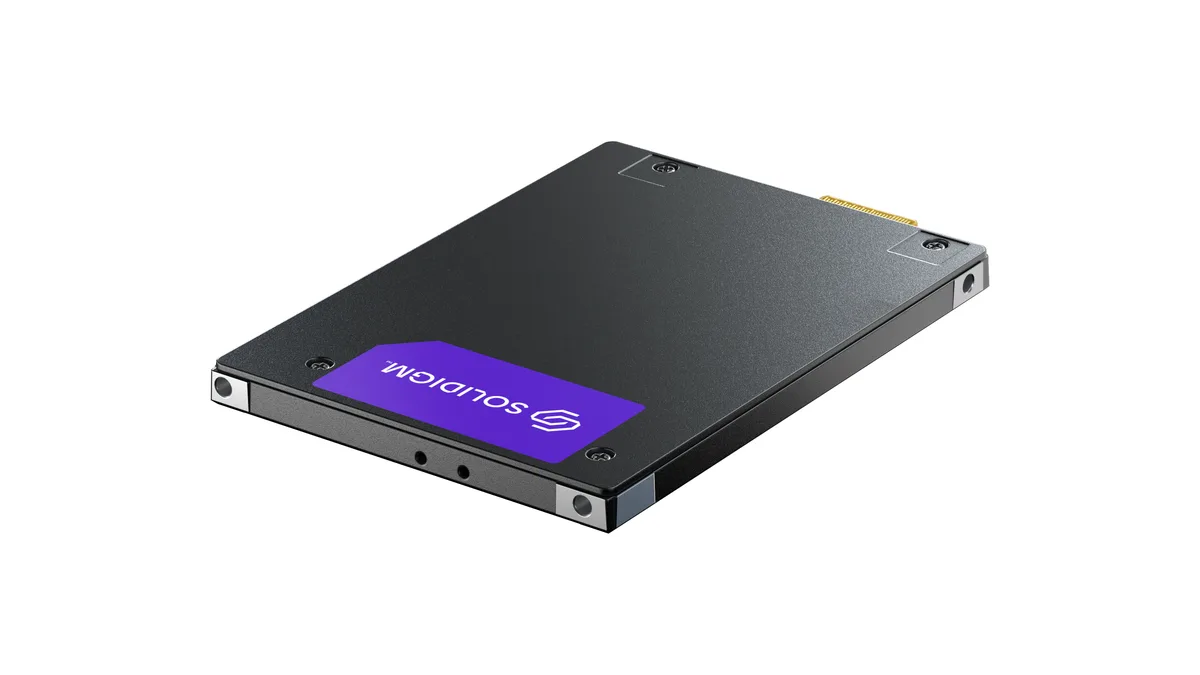

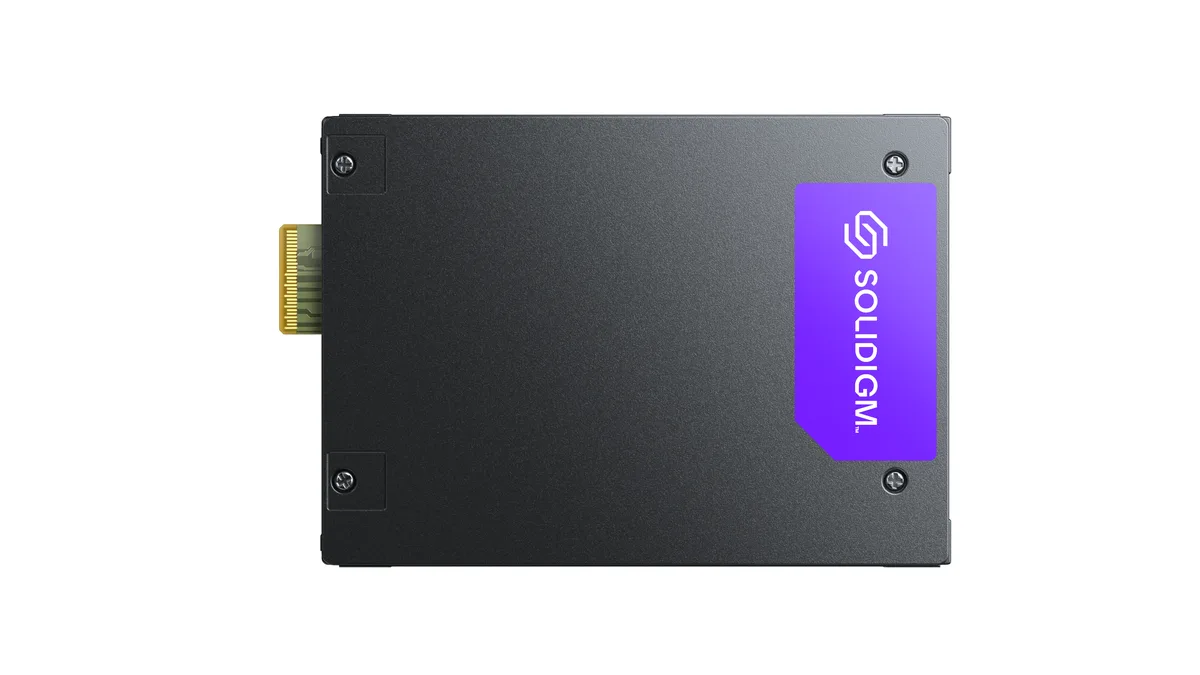

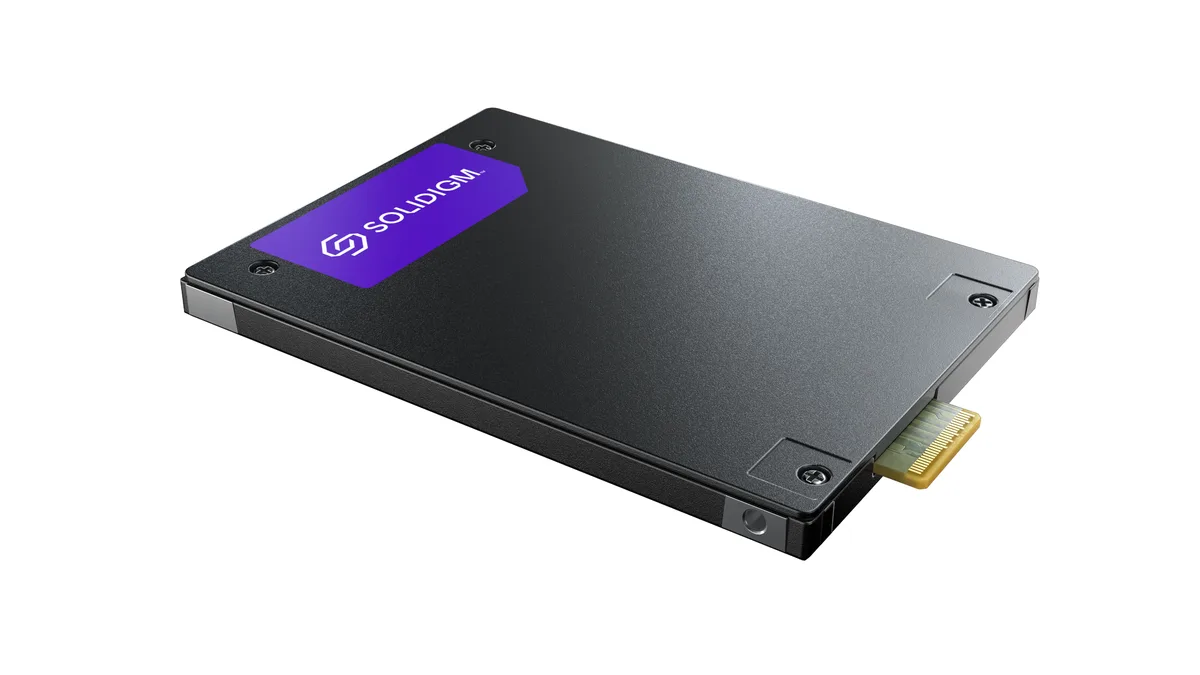

E3.S 7.5mm enterprise SSD, matte metal casing, edge connector visible

Solidigm

Solidigm D7-PS1010 1.92TB E3.S 7.5mm PCIe 5.0 enterprise SSD SB5PHA7X019TOF1

SKU CH-HQY5-ZC9Z3 MPN SB5PHA7X019TOF1

E3.S 7.5mm drive with 1.92TB capacity, PCIe 5.0 speeds up to 14500 MBps read and FIPS security

  • Form FactorE3.S 7.5mm
  • Capacity1.92TB
  • Memory Components176L TLC 3D NAND
  • InterfacePCI-Express 5.0
  • Max Sequential ReadUp to 14500 MBps
  • Max Sequential WriteUp to 4100 MBps

Option 1.92TB E3.S FIPS

Show 20 more configurations
  • 92 TB capacity supports large data sets
  • PCIe 5.0 x4 interface delivers up to 14500 MB/s sequential reads
  • 176-layer TLC 3D NAND enables 2350000 IOPS random reads
  • 1 DWPD endurance with 3.5 PBW suits write-intensive workloads
  • FIPS security and 2500000-hour MTBF protect critical data

Enterprise E3.S drive for dense server storage

The Solidigm D7-PS1010 is a 1.92TB enterprise SSD built on 176L TLC 3D NAND and a PCI-Express 5.0 x4 interface. It fits the E3.S 7.5mm form factor used in modern high-density server chassis. Sequential reads reach 14500 MBps and writes reach 4100 MBps. Random performance is rated at 2350000 IOPS read and 150000 IOPS write.

Verify E3.S cage and PCIe 5.0 support

Before ordering, confirm the server or storage array accepts E3.S 7.5mm modules and provides a PCIe 5.0 x4 electrical link to the slot. The drive carries FIPS security certification for regulated environments. Endurance is rated at 1 DWPD or 3.5 PBW. No mounting hardware is included with the bare drive.

Active power 17W with 77 °C operating limit

Typical idle draw is 5W and active draw is 17W, so plan airflow for the higher figure in sustained workloads. The operating temperature range spans 0 °C to 77 °C. MTBF is 2500000 hours. Shock resistance is rated at 1000 G at 0.5 msec and vibration at 2.17 GRMS operating.

Highlights

  • 92 TB capacity supports large data sets
  • PCIe 5.0 x4 interface delivers up to 14500 MB/s sequential reads
  • 176-layer TLC 3D NAND enables 2350000 IOPS random reads
  • 1 DWPD endurance with 3.5 PBW suits write-intensive workloads
  • FIPS security and 2500000-hour MTBF protect critical data

Specifications

BrandSolidigm
ModelD7-PS1010
Part NumberSB5PHA7X019TOF1
Form FactorE3.S 7.5mm
Capacity1.92TB
Memory Components176L TLC 3D NAND
InterfacePCI-Express 5.0
Max Sequential ReadUp to 14500 MBps
Max Sequential WriteUp to 4100 MBps
4KB Random Read2350000 IOPS (4K Blocks)
4KB Random Write150000 IOPS (4K Blocks)
Endurance1 DWPD / 3.5 PBW
MTBF2,500,000 hours
SecurityFIPS
Power Consumption (Idle)5W
Power Consumption (Active)17W
Operating Temperature0°C to 77°C
Max Shock Resistance1,000 G (Max) at 0.5 msec
Max Vibration ResistanceOperating: 2.17 GRMS (5 - 700 Hz) Max
Non-Operating: 3.13 GRMS (5 - 800 Hz) Max
Weight110g +/- 10g
Shipping weight0.17 kg
Package size140 × 110 × 17 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the Solidigm D7-PS1010 1.92TB E3.S 7.5mm drive ship with a heatsink or mounting bracket, or must those be sourced separately?

The drive is supplied as a bare E3.S 7.5mm module; any heatsink, carrier or mounting hardware required by your server chassis must be purchased separately.

What distinguishes this 1.92TB model from other capacities in the D7-PS1010 line?

This specific part number SB5PHA7X019TOF1 provides 1.92TB of 176L TLC 3D NAND with 1 DWPD endurance, 3.5 PBW total bytes written, and the listed 14500 MBps read and 4100 MBps write sequential speeds.

Will the quoted 14500 MBps sequential read speed be reached in a PCIe 5.0 x4 server slot under typical workloads?

The 14500 MBps figure is the maximum sequential read rating on a PCIe 5.0 x4 link; sustained throughput in a real server depends on workload mix, queue depth, thermal limits and the platform's ability to keep the drive fed with commands.
