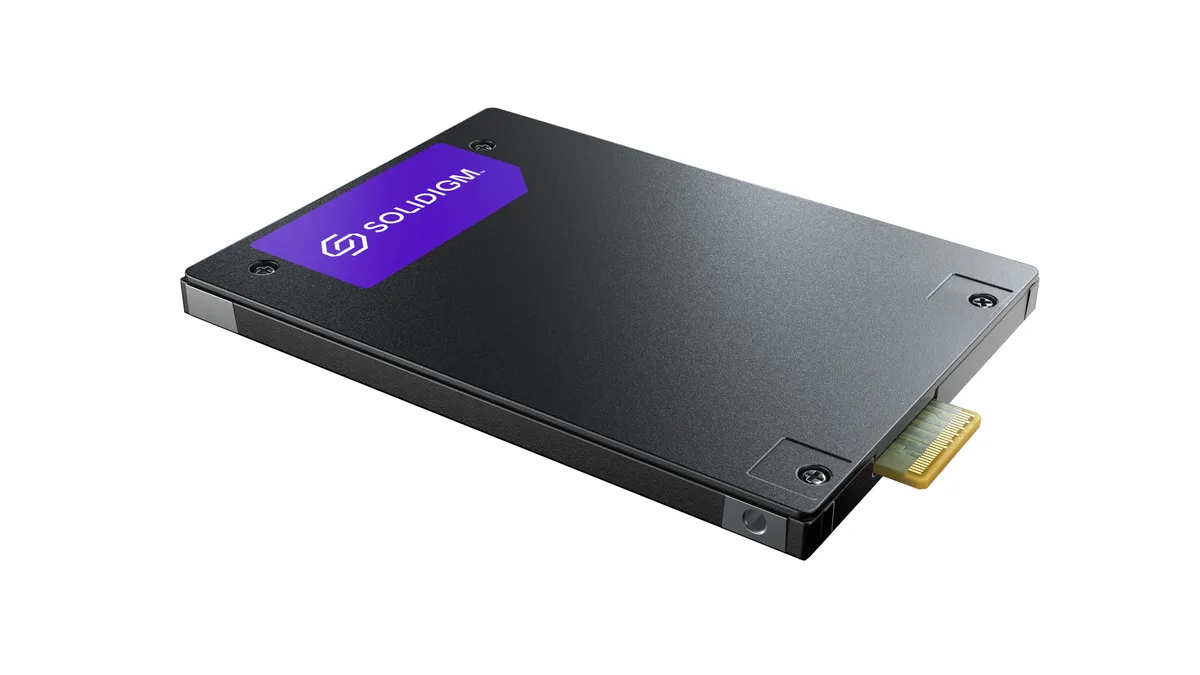

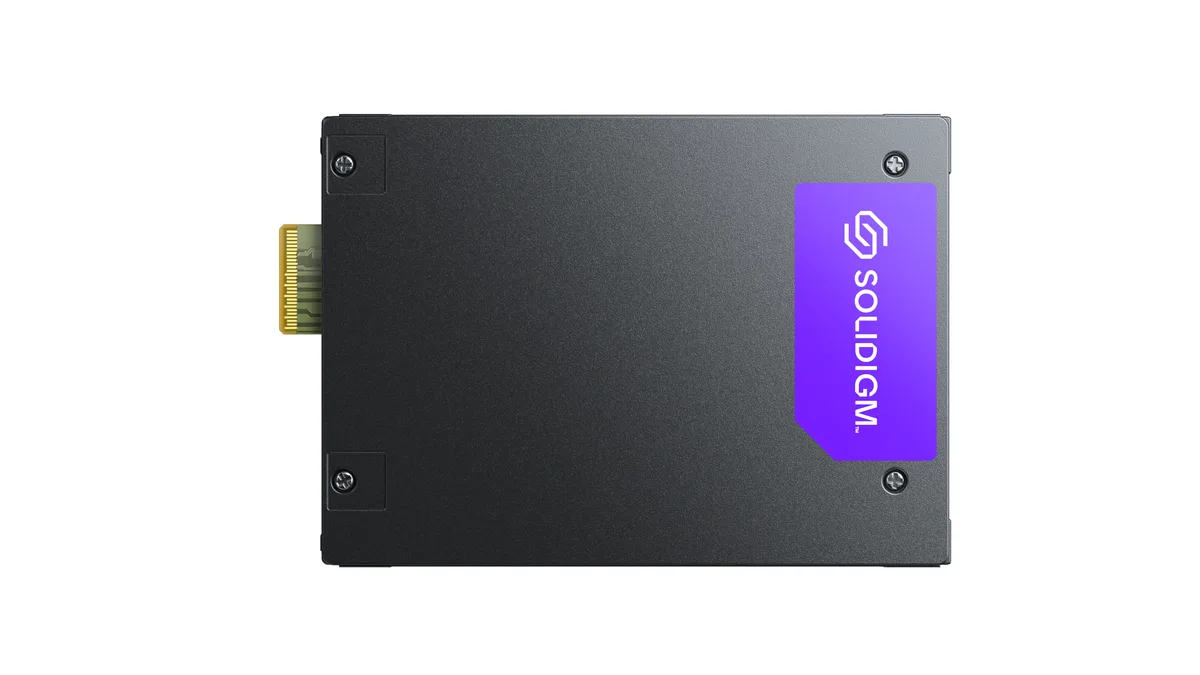

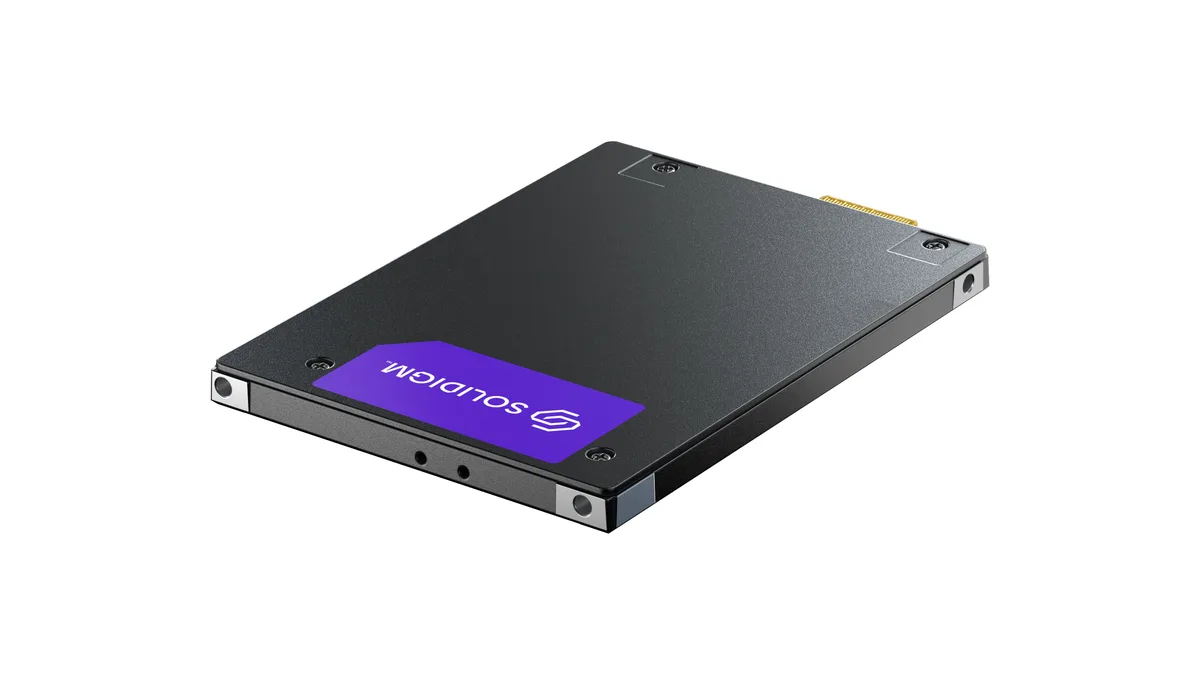

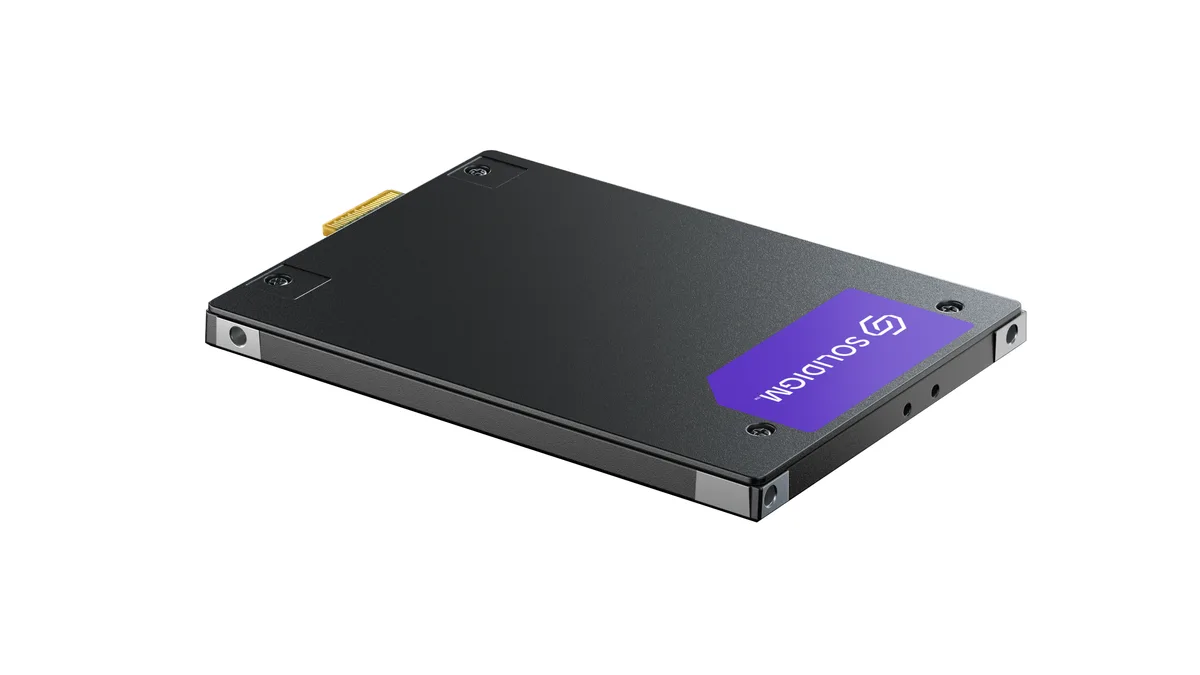

Rectangular E3.S 7.5mm enterprise SSD with silver metal casing and gold edge connector

Solidigm

Solidigm SB5PHA7X038T001 D7-PS1010 3.84TB E3.S 7.5mm PCIe 5.0 enterprise SSD

SKU CH-EJQA-T7CRE MPN SB5PHA7X038T001

Enterprise E3.S 7.5mm drive delivering 3.84TB capacity with PCIe 5.0 speeds up to 14500 MBps read and 8200 MBps write

  • Form FactorE3.S 7.5mm
  • Capacity3.84TB
  • Memory Components176L TLC 3D NAND
  • InterfacePCI-Express 5.0
  • Max Sequential ReadUp to 14500 MBps
  • Max Sequential WriteUp to 8200 MBps

Option 3.84TB E3.S

Show 20 more configurations
  • Up to 14500 MBps sequential read accelerates large-file workflows
  • Up to 8200 MBps sequential write sustains heavy ingest workloads
  • 1 million random read IOPS speeds database queries
  • 315 thousand random write IOPS handles transaction bursts
  • 1 DWPD endurance with 7 PBW rating supports daily full-drive writes

D7-PS1010 E3.S drive for dense servers

The Solidigm D7-PS1010 is a 3.84TB enterprise SSD built in the E3.S 7.5mm form factor for PCI-Express 5.0 slots. It targets data-centre operators who need high-capacity flash in a thin, hot-pluggable ruler layout. The drive uses 176L TLC 3D NAND and is rated for one drive write per day with 7 PBW total endurance.

Sustained write behaviour at 19W active power

Under continuous load the drive draws 19W and maintains sequential write speeds up to 8200 MBps alongside 315000 random write IOPS. The 1 DWPD endurance rating and 2,500,000-hour MTBF are calculated for round-the-clock operation rather than burst workloads. Operating temperature range spans 0°C to 77°C with vibration tolerance of 2.17 GRMS during use.

Verify E3.S 7.5mm bay and PCIe 5.0 x4 wiring

Before ordering, confirm that your chassis provides an E3.S 7.5mm bay with the correct connector keying and that the backplane routes a full PCIe 5.0 x4 link to the slot. The drive weighs 110g and requires no Opal encryption support from the host. Systems limited to PCIe 4.0 or lacking the physical ruler cage cannot use this SSD.

Highlights

  • Up to 14500 MBps sequential read accelerates large-file workflows
  • Up to 8200 MBps sequential write sustains heavy ingest workloads
  • 1 million random read IOPS speeds database queries
  • 315 thousand random write IOPS handles transaction bursts
  • 1 DWPD endurance with 7 PBW rating supports daily full-drive writes

Specifications

BrandSolidigm
ModelD7-PS1010
Part NumberSB5PHA7X038T001
Form FactorE3.S 7.5mm
Capacity3.84TB
Memory Components176L TLC 3D NAND
InterfacePCI-Express 5.0
Max Sequential ReadUp to 14500 MBps
Max Sequential WriteUp to 8200 MBps
4KB Random Read3100000 IOPS (4K Blocks)
4KB Random Write315000 IOPS (4K Blocks)
Endurance1 DWPD / 7 PBW
MTBF2,500,000 hours
Power Consumption (Idle)5W
Power Consumption (Active)19W
Operating Temperature0°C to 77°C
Max Shock Resistance1,000 G (Max) at 0.5 msec
Max Vibration ResistanceOperating: 2.17 GRMS (5 - 700 Hz) Max
Non-Operating: 3.13 GRMS (5 - 800 Hz) Max
Weight110g +/- 10g
Shipping weight0.17 kg
Package size140 × 110 × 17 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much power does the D7-PS1010 draw at idle and under full load?

The drive consumes 5W at idle and up to 19W during active operation.

Does my server need an E3.S 7.5mm bay and a PCIe 5.0 x4 link to install this SSD?

Yes, it requires an E3.S 7.5mm slot with a PCI-Express 5.0 x4 connection.

Will the 3.84TB D7-PS1010 work in a chassis that only supports PCIe 4.0?

The drive uses a PCI-Express 5.0 interface; it will negotiate down to PCIe 4.0 speeds if the backplane only supports that generation.
