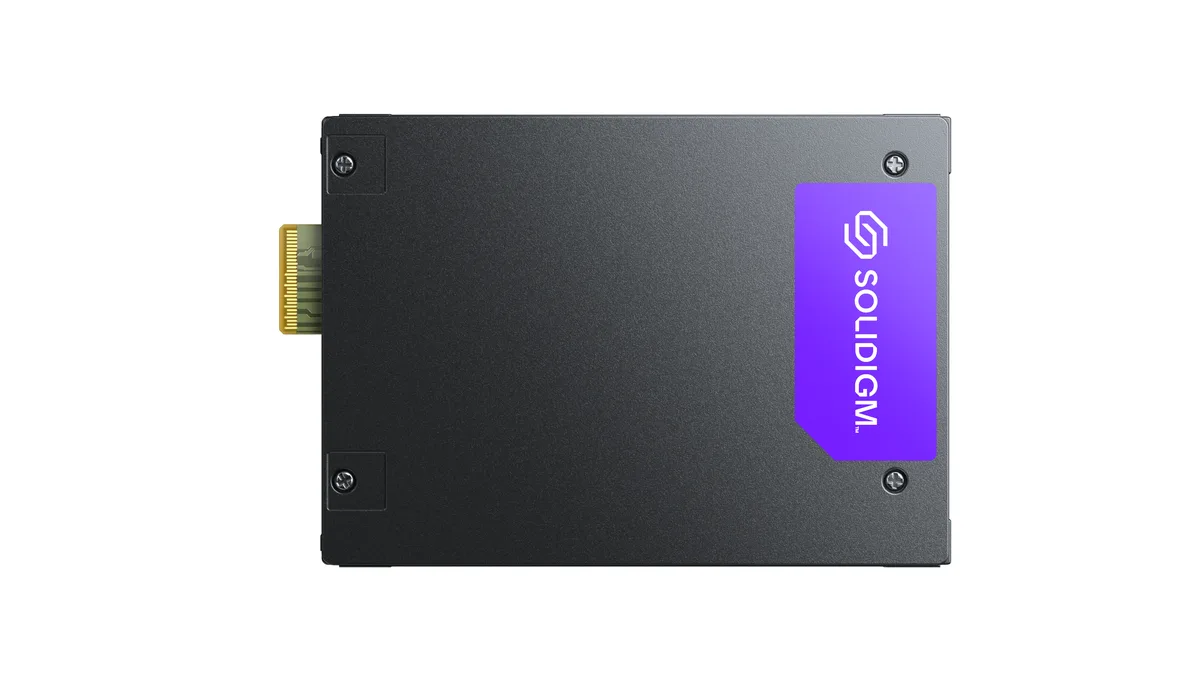

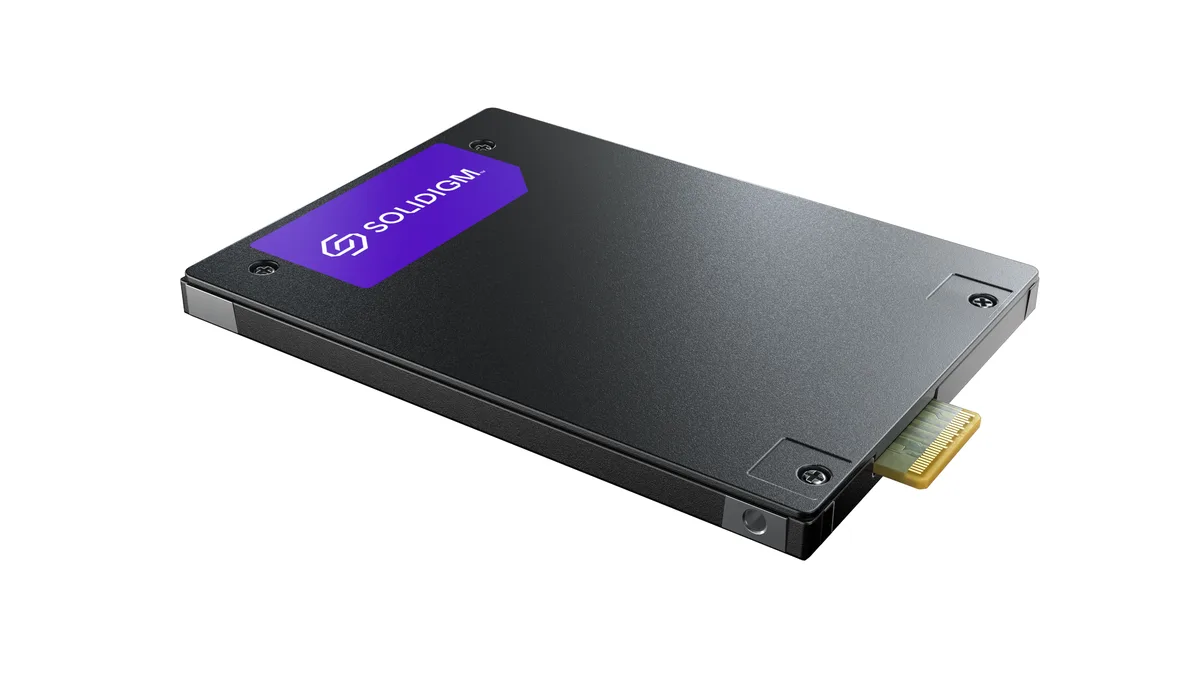

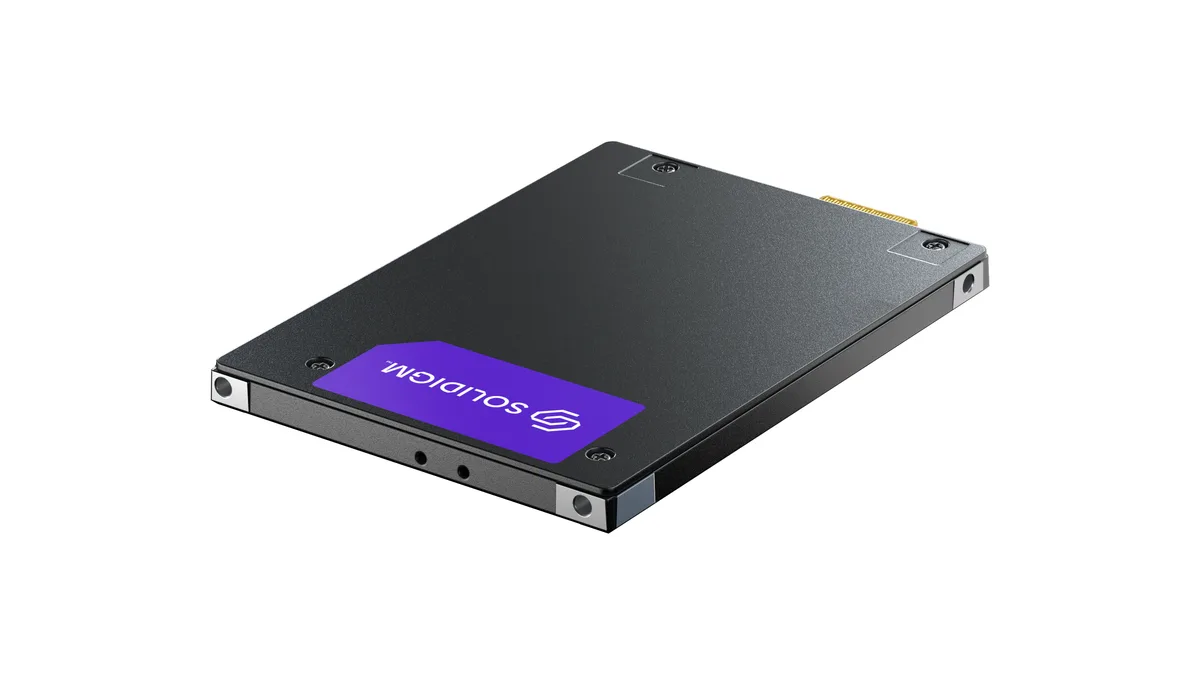

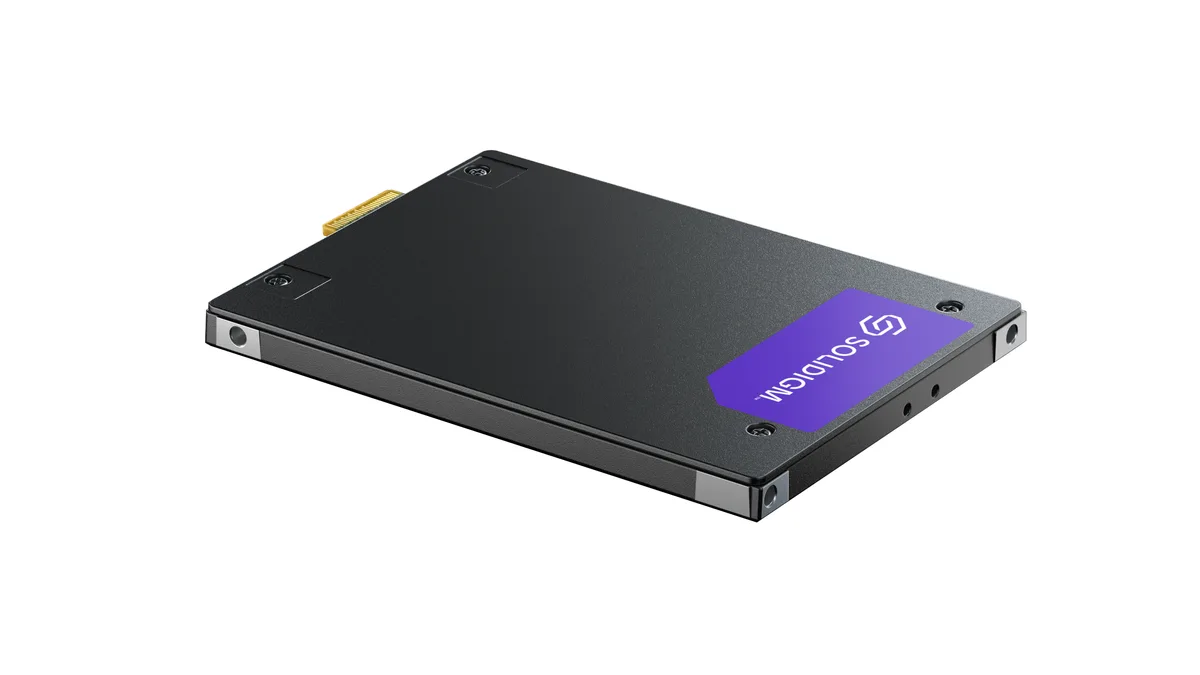

Rectangular E3.S 7.5mm enterprise SSD with silver metal casing and gold edge connector

Solidigm

Solidigm SB5PHA7X038TOF1 enterprise SSD 3.84TB E3.S 7.5mm PCIe 5.0

SKU CH-92Y1-JVT1W MPN SB5PHA7X038TOF1

E3.S 7.5mm enterprise SSD with 3.84TB of 176L TLC 3D NAND, PCIe 5.0 x4, 14500 MBps read, 8200 MBps write and FIPS security

  • Form FactorE3.S 7.5mm
  • Capacity3.84TB
  • Memory Components176L TLC 3D NAND
  • InterfacePCI-Express 5.0
  • Max Sequential ReadUp to 14500 MBps
  • Max Sequential WriteUp to 8200 MBps

Option 3.84TB E3.S FIPS

Show 20 more configurations
  • Fast sequential reads up to 14500 MBps for rapid data access
  • High random read performance of 3100000 IOPS for demanding workloads
  • Enterprise endurance of 1 DWPD and 7 PBW for sustained writes
  • FIPS security certification protects sensitive data
  • E3.S 7.5mm form factor fits dense server deployments

Enterprise SSD for dense servers

The Solidigm D7-PS1010 is a 3.84TB enterprise SSD built for high-density server deployments. Its E3.S 7.5mm form factor fits 1U and 2U chassis where space is limited. The drive targets data-centre workloads that demand consistent low-latency access to large datasets. It is not suited for desktop PCs or consumer laptops that lack E3.S bays and PCIe 5.0 support.

Thermals and power profile

Active power draw reaches 19W while idle consumption sits at 5W. The operating temperature range spans 0°C to 77°C, allowing deployment in standard rack environments. The drive withstands 2.17 GRMS vibration at 5-700 Hz during operation and 3.13 GRMS at 5-800 Hz non-operating. Shock tolerance is rated at 1000 G for 0.5 msec.

FIPS security and endurance

Hardware-based FIPS encryption protects data at rest without host software overhead. Endurance is rated at 1 DWPD, equivalent to 7 PBW over the warranty period. MTBF is specified at 2,500,000 hours. The 176L TLC 3D NAND delivers sequential reads up to 14500 MBps and writes up to 8200 MBps. No bundled management utilities or mounting hardware are included.

Highlights

  • Fast sequential reads up to 14500 MBps for rapid data access
  • High random read performance of 3100000 IOPS for demanding workloads
  • Enterprise endurance of 1 DWPD and 7 PBW for sustained writes
  • FIPS security certification protects sensitive data
  • E3.S 7.5mm form factor fits dense server deployments

Specifications

BrandSolidigm
ModelD7-PS1010
Part NumberSB5PHA7X038TOF1
Form FactorE3.S 7.5mm
Capacity3.84TB
Memory Components176L TLC 3D NAND
InterfacePCI-Express 5.0
Max Sequential ReadUp to 14500 MBps
Max Sequential WriteUp to 8200 MBps
4KB Random Read3100000 IOPS (4K Blocks)
4KB Random Write315000 IOPS (4K Blocks)
Endurance1 DWPD / 7 PBW
MTBF2,500,000 hours
SecurityFIPS
Power Consumption (Idle)5W
Power Consumption (Active)19W
Operating Temperature0°C to 77°C
Max Shock Resistance1,000 G (Max) at 0.5 msec
Max Vibration ResistanceOperating: 2.17 GRMS (5 - 700 Hz) Max
Non-Operating: 3.13 GRMS (5 - 800 Hz) Max
Weight110g +/- 10g
Shipping weight0.17 kg
Package size140 × 110 × 17 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install this E3.S 7.5mm drive into a server backplane, and what step is often missed?

Slide the drive into the E3.S bay until the connector seats, then secure the single retention screw; the step often missed is torquing that screw to the chassis specification so the PCIe 5.0 link trains at full speed.

What maintenance or replacement will the D7-PS1010 need after heavy write workloads?

The drive is rated for 1 DWPD and 7 PBW total bytes written; once that endurance budget is consumed the NAND can no longer guarantee data retention and the drive must be replaced.

What thermal limit appears first during sustained PCIe 5.0 x4 operation?

The controller throttles when the internal temperature reaches 77 °C, so maintaining airflow to keep the drive below that ceiling is the first limit you will hit under continuous load.
