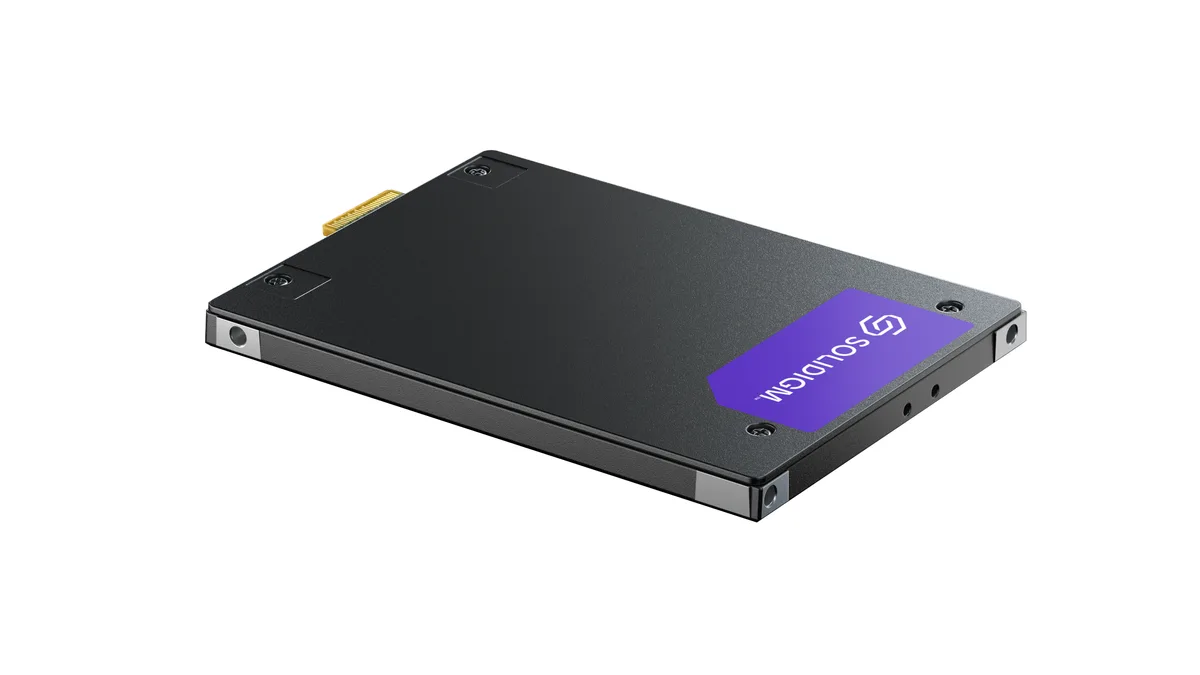

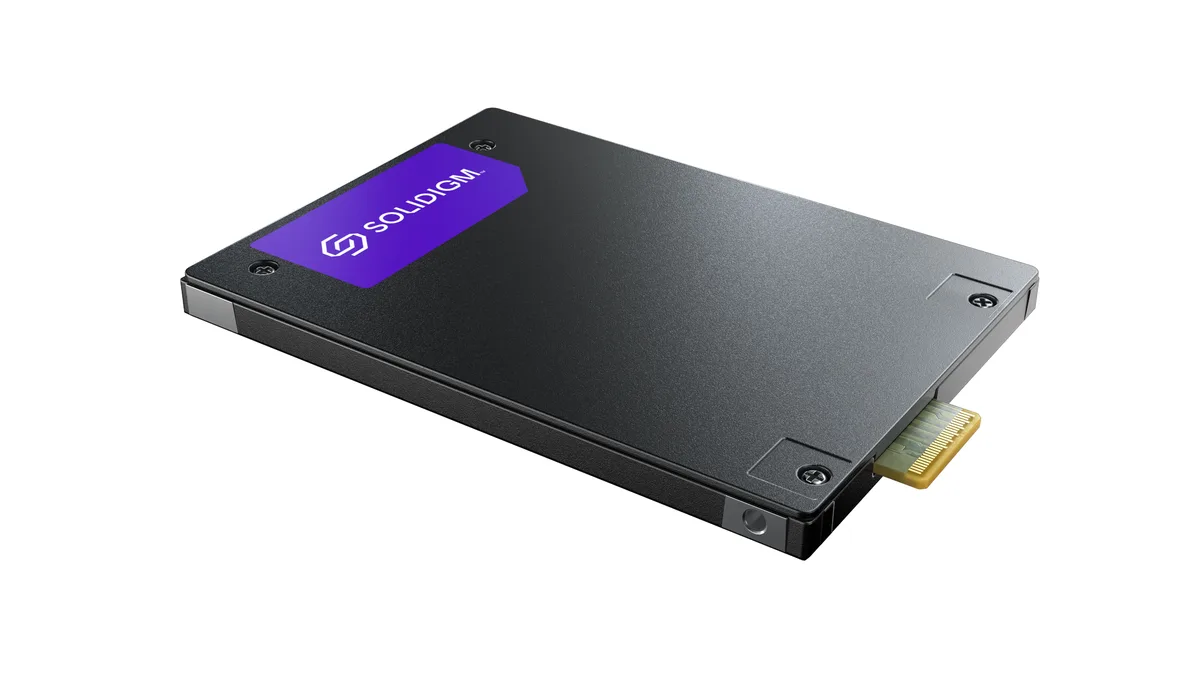

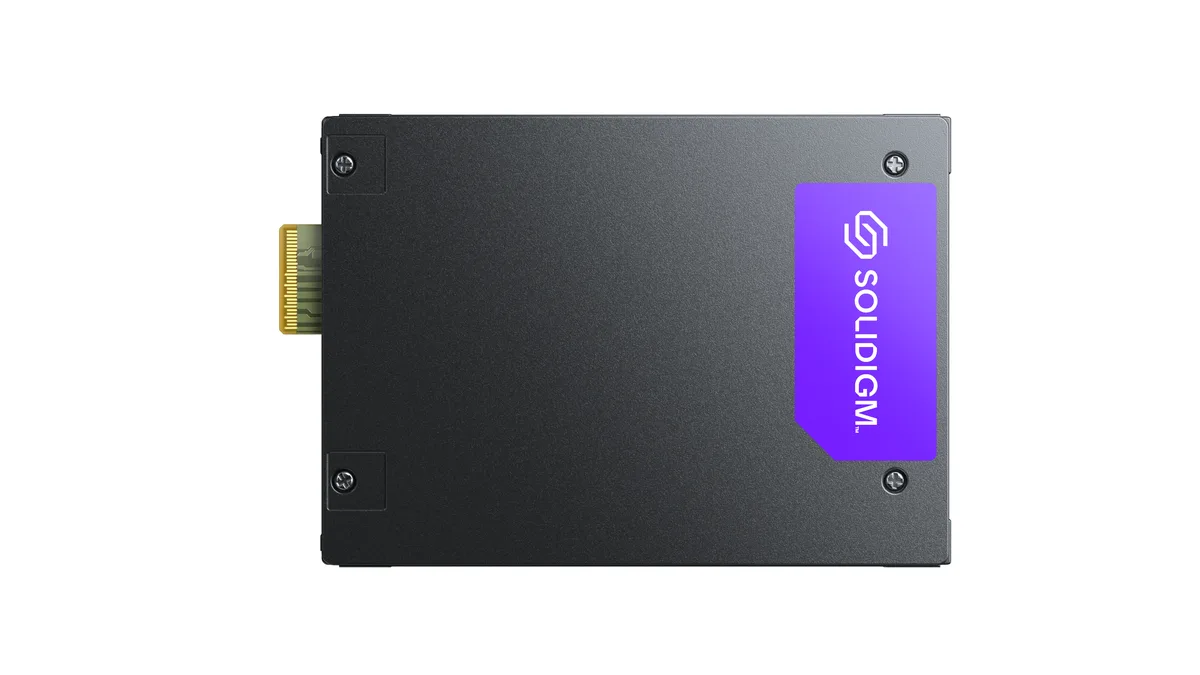

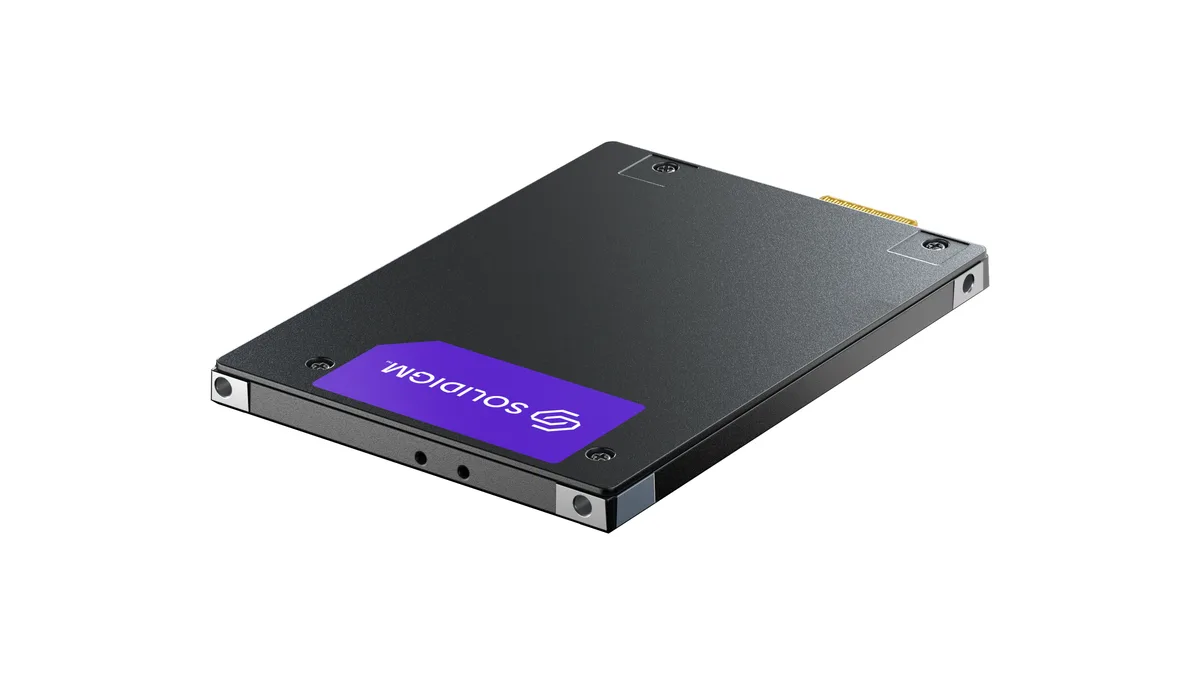

Rectangular E3.S 7.5mm enterprise SSD with bare circuit board and gold edge connector

Solidigm

Solidigm SB5PHA7X019T001 1.92TB E3.S 7.5mm PCIe 5.0 enterprise SSD

SKU CH-E5TT-4J0KQ MPN SB5PHA7X019T001

E3.S 7.5mm PCIe 5.0 enterprise SSD with 1.92TB TLC 3D NAND, 14500 MBps read and 4100 MBps write

  • Form FactorE3.S 7.5mm
  • Capacity1.92TB
  • Memory Components176L TLC 3D NAND
  • InterfacePCI-Express 5.0
  • Max Sequential ReadUp to 14500 MBps
  • Max Sequential WriteUp to 4100 MBps

Option 1.92TB E3.S

Show 20 more configurations
  • Up to 14500 MBps sequential read via PCIe 5.0
  • 2350000 IOPS random read from 176L TLC 3D NAND
  • 92TB capacity in E3.S 7.5mm form factor
  • 1 DWPD endurance rated at 3.5 PBW total writes
  • 2500000 hours MTBF with 1000 G shock resistance

Enterprise PCIe 5.0 SSD

The Solidigm D7-PS1010 is a 1.92TB enterprise solid-state drive built on 176L TLC 3D NAND with a PCI-Express 5.0 interface. It uses the E3.S 7.5mm form factor and delivers up to 14500 MBps sequential read and 4100 MBps sequential write. Random performance reaches 2350000 IOPS read and 150000 IOPS write. Endurance is rated at 1 DWPD or 3.5 PBW with a 2,500,000-hour MTBF.

Suited for read-heavy data centre workloads

This drive targets servers needing high sequential throughput and very high random read IOPS at a 1 DWPD write endurance level. It suits caching, content delivery and read-intensive database tiers. Buyers who need higher write endurance for mixed or write-heavy workloads should look at drives with a higher DWPD rating. Systems without an E3.S backplane or PCIe 5.0 support cannot use this drive.

Verify E3.S slot and power budget

Confirm the server chassis provides an E3.S 7.5mm drive bay with PCIe 5.0 x4 electrical connections. The drive draws up to 17W active and 5W idle; ensure the backplane and power delivery can sustain that load. Operating temperature range is 0°C to 77°C; verify airflow meets this limit. No mounting hardware is included with the single-pack unit.

Highlights

  • Up to 14500 MBps sequential read via PCIe 5.0
  • 2350000 IOPS random read from 176L TLC 3D NAND
  • 92TB capacity in E3.S 7.5mm form factor
  • 1 DWPD endurance rated at 3.5 PBW total writes
  • 2500000 hours MTBF with 1000 G shock resistance

Specifications

BrandSolidigm
ModelD7-PS1010
Part NumberSB5PHA7X019T001
Form FactorE3.S 7.5mm
Capacity1.92TB
Memory Components176L TLC 3D NAND
InterfacePCI-Express 5.0
Max Sequential ReadUp to 14500 MBps
Max Sequential WriteUp to 4100 MBps
4KB Random Read2350000 IOPS (4K Blocks)
4KB Random Write150000 IOPS (4K Blocks)
Endurance1 DWPD / 3.5 PBW
MTBF2,500,000 hours
Power Consumption (Idle)5W
Power Consumption (Active)17W
Operating Temperature0°C to 77°C
Max Shock Resistance1,000 G (Max) at 0.5 msec
Max Vibration ResistanceOperating: 2.17 GRMS (5 - 700 Hz) Max
Non-Operating: 3.13 GRMS (5 - 800 Hz) Max
Weight110g +/- 10g
Shipping weight0.17 kg
Package size140 × 110 × 17 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does my server backplane need an E3.S 7.5mm slot to install this SB5PHA7X019T001?

Yes, the drive fits only an E3.S 7.5mm bay and requires a PCIe 5.0 x4 electrical connection from the backplane.

Will the D7-PS1010 negotiate down to PCIe 4.0 if my current platform only supports that generation?

The drive operates on PCIe 5.0 x4; compatibility with PCIe 4.0 slots depends on the host platform and is not guaranteed by the drive specification.

How can I confirm the 1.92TB SSD is delivering its rated 14500 MBps sequential read after installation?

Run a sequential-read benchmark such as fio with a large queue depth and verify the result approaches 14500 MBps while the drive stays within the 0°C to 77°C operating range.
