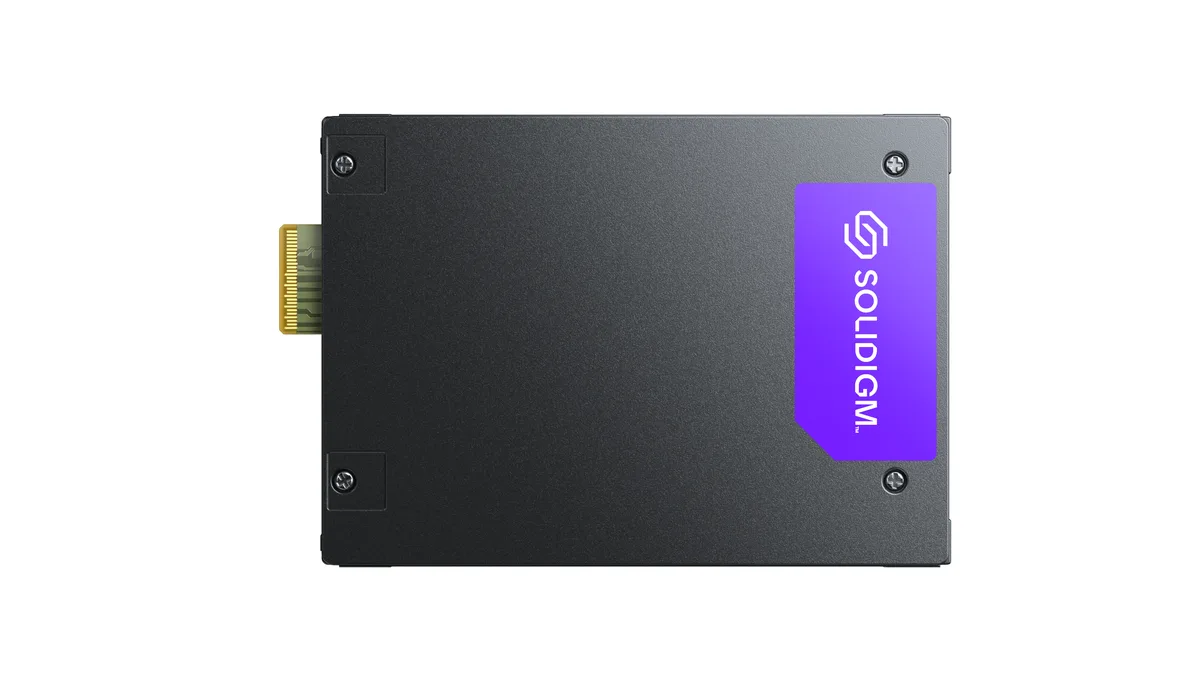

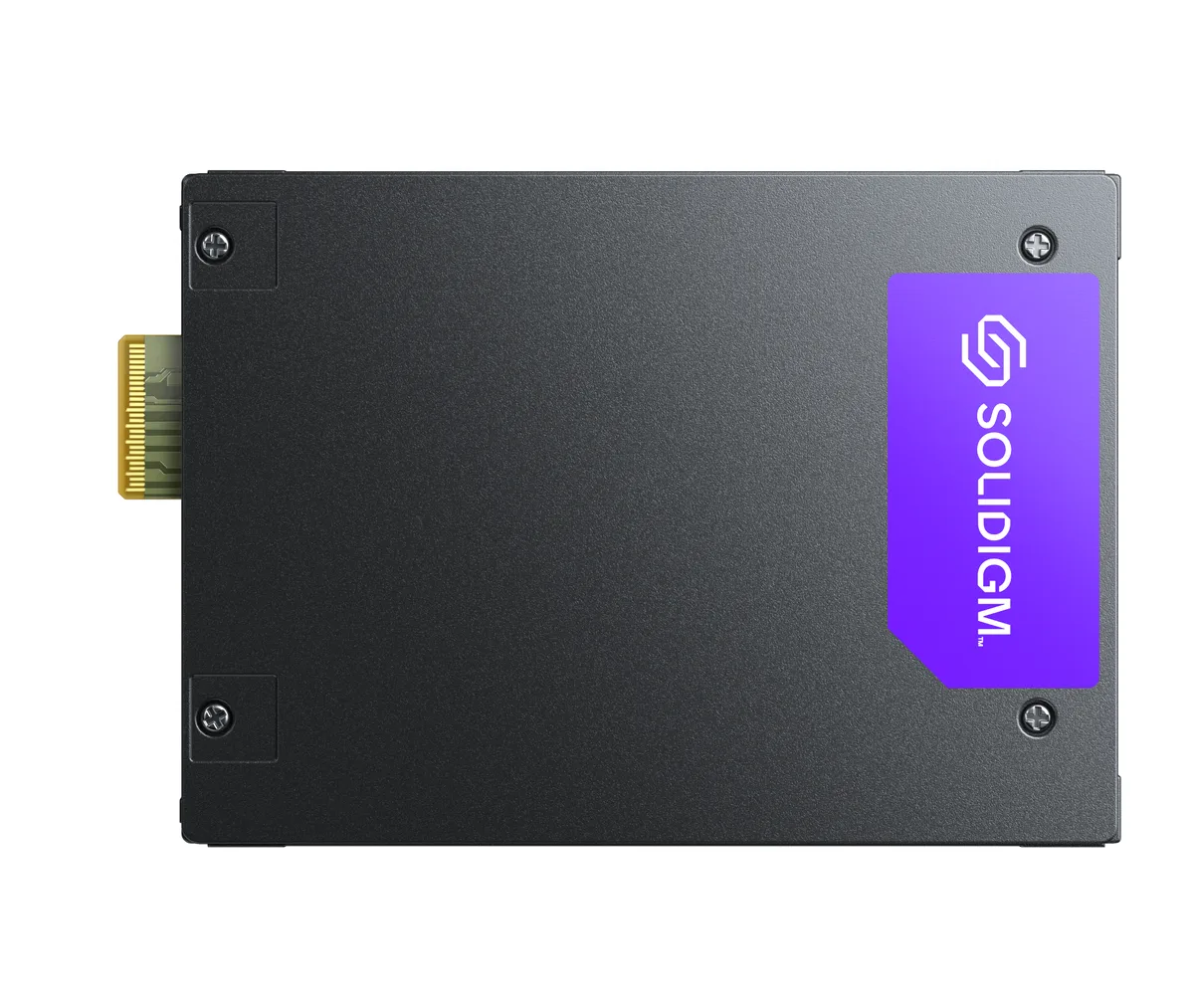

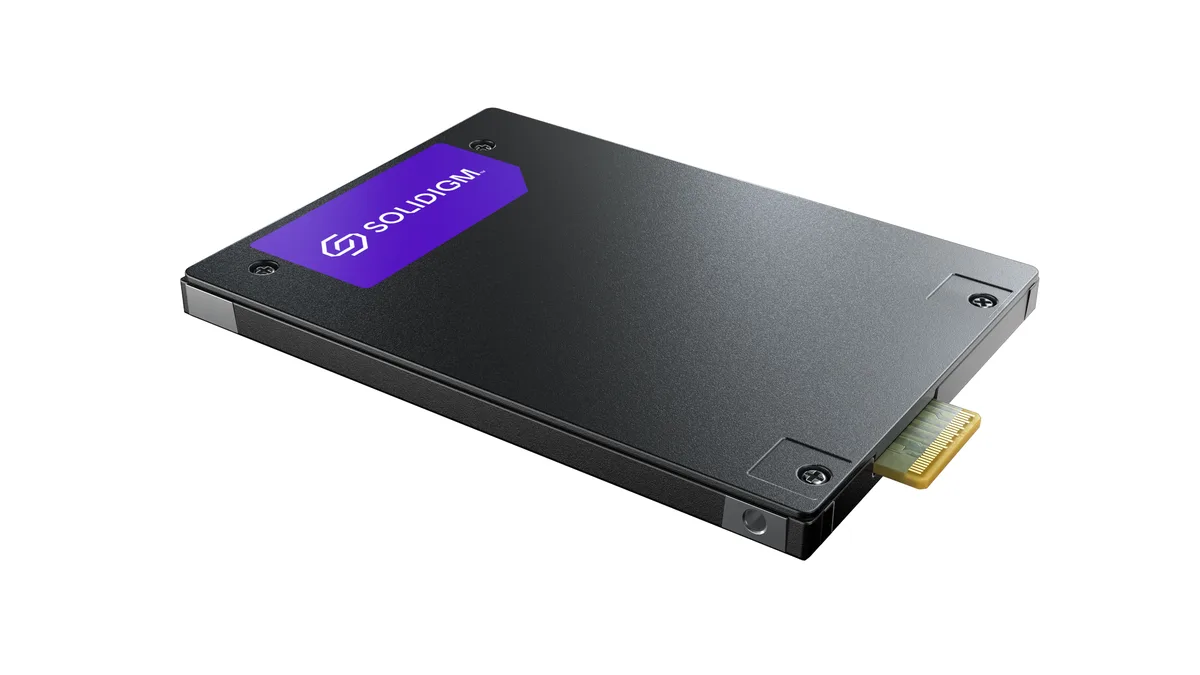

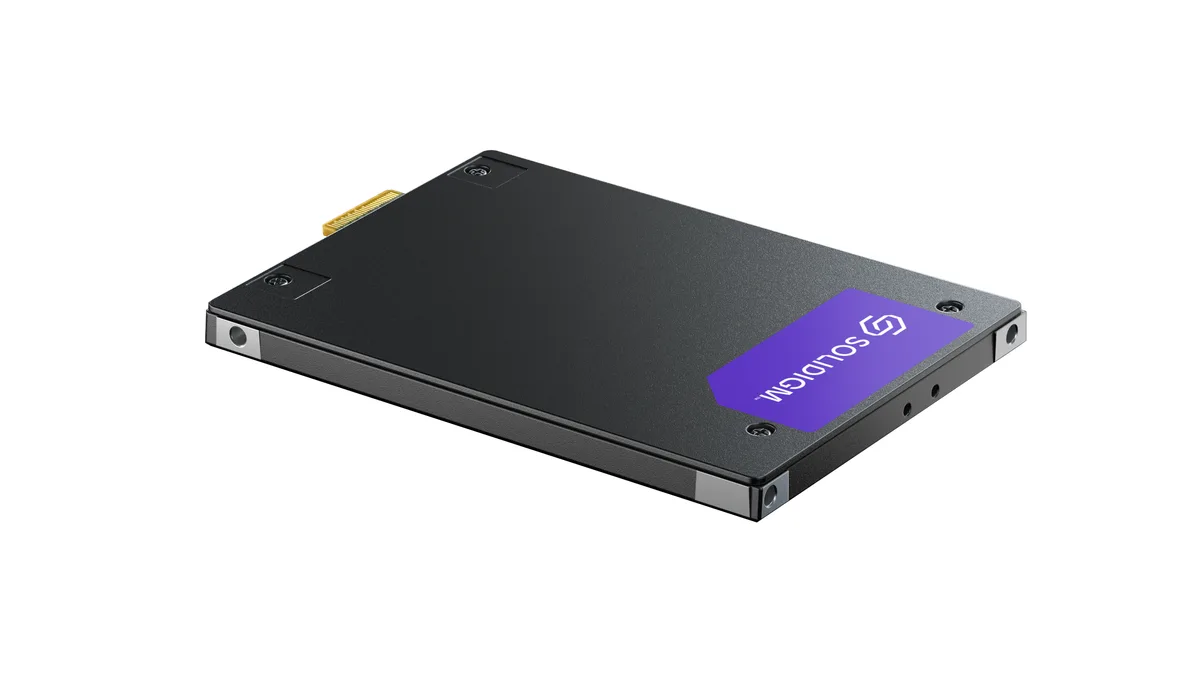

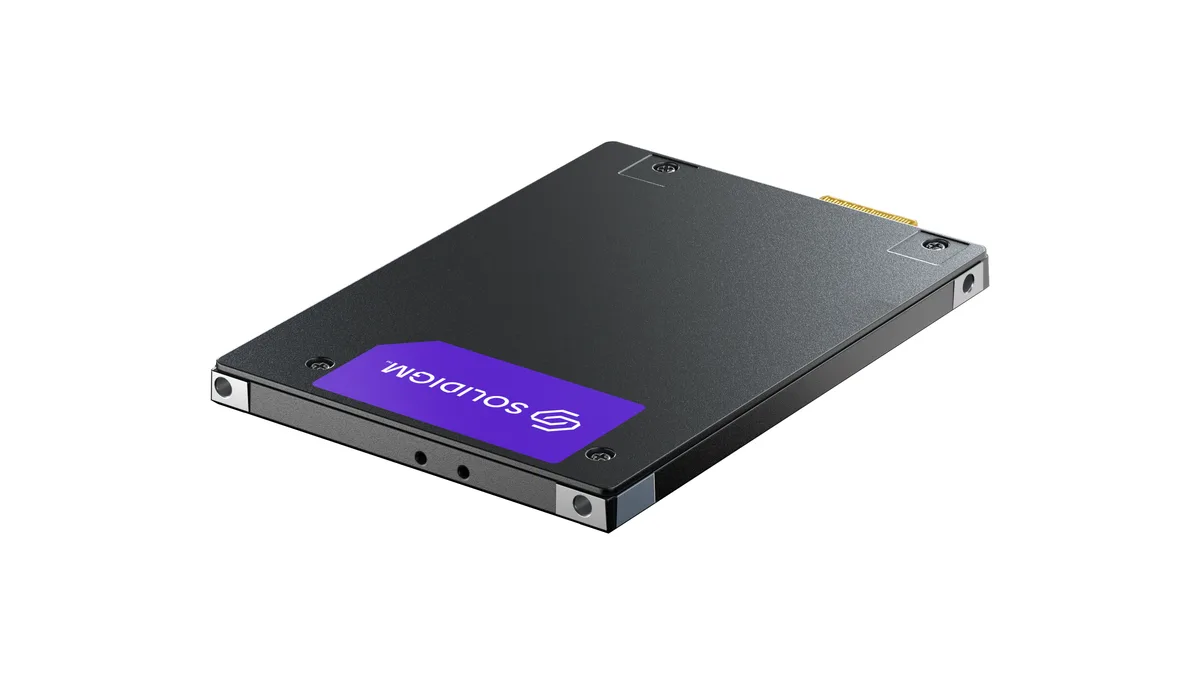

Rectangular E3.S 7.5mm enterprise SSD with silver metal casing and gold edge connector

Solidigm

Solidigm SB5PHA7X153TOP1 15.36TB E3.S 7.5mm PCIe 5.0 enterprise SSD

SKU CH-ZQ1F-2BK84 MPN SB5PHA7X153TOP1

E3.S 7.5mm PCIe 5.0 enterprise SSD storing 15.36TB on 176L TLC 3D NAND with up to 14500 MB/s read, 9300 MB/s write, 2750000 random read IOPS, 380000 random write IOPS.

  • Form FactorE3.S 7.5mm
  • Capacity15.36TB
  • Memory Components176L TLC 3D NAND
  • InterfacePCI-Express 5.0
  • Max Sequential ReadUp to 14500 MBps
  • Max Sequential WriteUp to 9300 MBps

Option 15.36TB E3.S Opal

Show 20 more configurations
  • Massive 15.36 TB capacity fits large data sets in one drive
  • PCIe 5.0 interface delivers up to 14500 MB/s sequential read speed
  • 176-layer TLC 3D NAND provides 2750000 IOPS random read performance
  • 1 DWPD endurance rating supports 28 PBW total writes over drive life
  • 5 million hour MTBF and 1000 G shock resistance ensure enterprise reliability

High-capacity E3.S drive

The Solidigm D7-PS1010 is a 15.36 TB enterprise SSD built in the E3.S 7.5 mm form factor with a PCIe 5.0 x4 interface. It uses 176-layer TLC 3D NAND to deliver sequential reads up to 14500 MBps and writes up to 9300 MBps, suited for read-intensive server workloads.

Suited for read-heavy deployments

This drive fits data-centre arrays, content-delivery nodes and warm-storage tiers that need high capacity and strong random read performance of 2750000 IOPS. It is not for write-heavy logging or OLTP systems that demand higher endurance than 1 DWPD, nor for desktop or laptop bays that only accept 2.5-inch or M.2 modules.

1 DWPD endurance rating

The drive is rated for one full drive write per day, equating to 28 PBW over its lifetime. That single figure decides whether the SSD matches the write intensity of the target application.

Highlights

  • Massive 15.36 TB capacity fits large data sets in one drive
  • PCIe 5.0 interface delivers up to 14500 MB/s sequential read speed
  • 176-layer TLC 3D NAND provides 2750000 IOPS random read performance
  • 1 DWPD endurance rating supports 28 PBW total writes over drive life
  • 5 million hour MTBF and 1000 G shock resistance ensure enterprise reliability

Specifications

BrandSolidigm
ModelD7-PS1010
Part NumberSB5PHA7X153TOP1
Form FactorE3.S 7.5mm
Capacity15.36TB
Memory Components176L TLC 3D NAND
InterfacePCI-Express 5.0
Max Sequential ReadUp to 14500 MBps
Max Sequential WriteUp to 9300 MBps
4KB Random Read2750000 IOPS (4K Blocks)
4KB Random Write380000 IOPS (4K Blocks)
Endurance1 DWPD / 28 PBW
MTBF2,500,000 hours
SecurityOpal
Power Consumption (Idle)5W
Power Consumption (Active)23W
Operating Temperature0°C to 77°C
Max Shock Resistance1,000 G (Max) at 0.5 msec
Max Vibration ResistanceOperating: 2.17 GRMS (5 - 700 Hz) Max
Non-Operating: 3.13 GRMS (5 - 800 Hz) Max
Weight120g +/- 10g
Shipping weight0.17 kg
Package size140 × 110 × 17 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install this E3.S 7.5mm PCIe 5.0 drive, and what step do people often miss?

Slide the drive into the hot-plug E3.S cage until the connector seats, then secure the latch screw; the step often missed is confirming the backplane supports PCIe 5.0 x4 signalling for full 14500 MBps read speed.

What maintenance or replacement will this 15.36TB TLC drive need over its service life?

No scheduled maintenance is required; the drive is rated for 1 DWPD and 28 PBW total writes, so plan replacement once the media approaches 28 PB written or the SMART wear indicator nears 100%.

What limit appears first when this SSD runs sustained heavy writes at 23W active power?

The sequential write ceiling of 9300 MBps is reached before thermal throttling, as the controller maintains the 0°C to 77°C operating range under the rated 23W active load.
