Rectangular green circuit board with gold edge connector and black controller chips

Solidigm

Solidigm D7-PS1010 7.68TB E3.S 7.5mm PCIe 5.0 enterprise SSD SB5PHA7X076TOF1

SKU CH-YF08-N0YBM MPN SB5PHA7X076TOF1

E3.S 7.5mm PCIe 5.0 enterprise SSD delivering 7.68TB capacity with 14500 MBps read and 10000 MBps write speeds

  • Form FactorE3.S 7.5mm
  • Capacity7.68TB
  • Memory Components176L TLC 3D NAND
  • InterfacePCI-Express 5.0
  • Max Sequential ReadUp to 14500 MBps
  • Max Sequential WriteUp to 10000 MBps

Option 7.68TB E3.S FIPS

Show 20 more configurations
  • Handles heavy read workloads with 3,000,000 random read IOPS
  • Sustains mixed workloads with 1,4500 MB/s sequential read and 10,000 MB/s write
  • Fits dense servers in E3.S 7.5 mm form factor
  • Protects sensitive data with FIPS security certification
  • Delivers 1 DWPD endurance over 14 PBW total bytes written

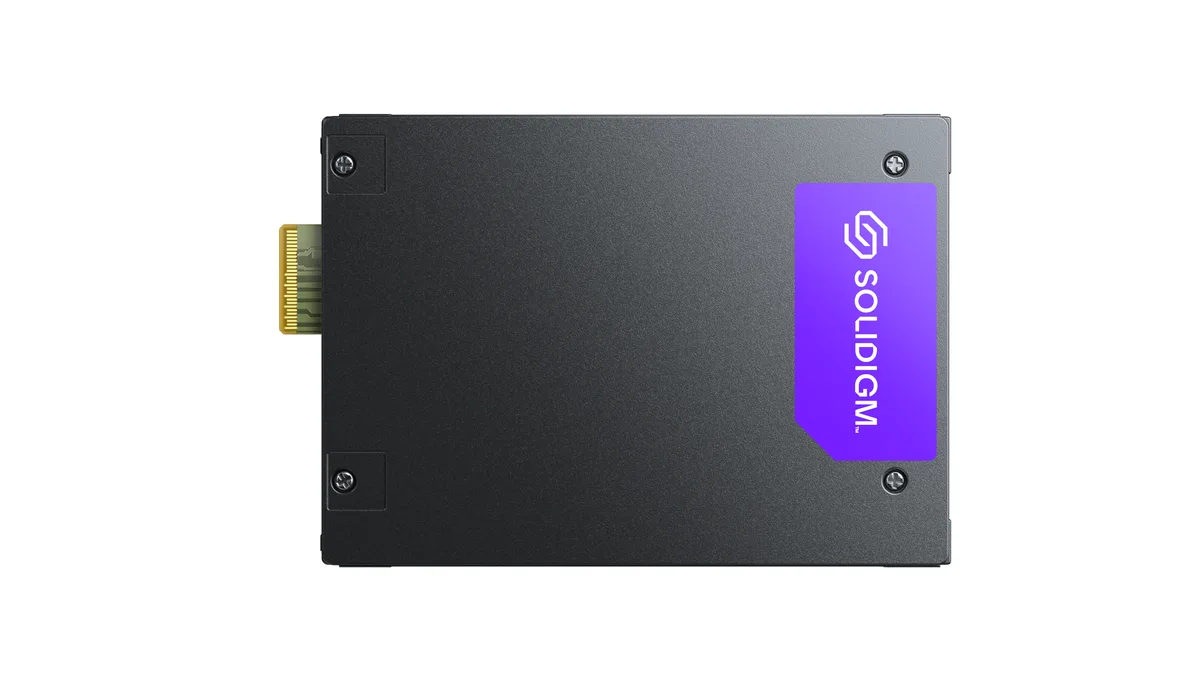

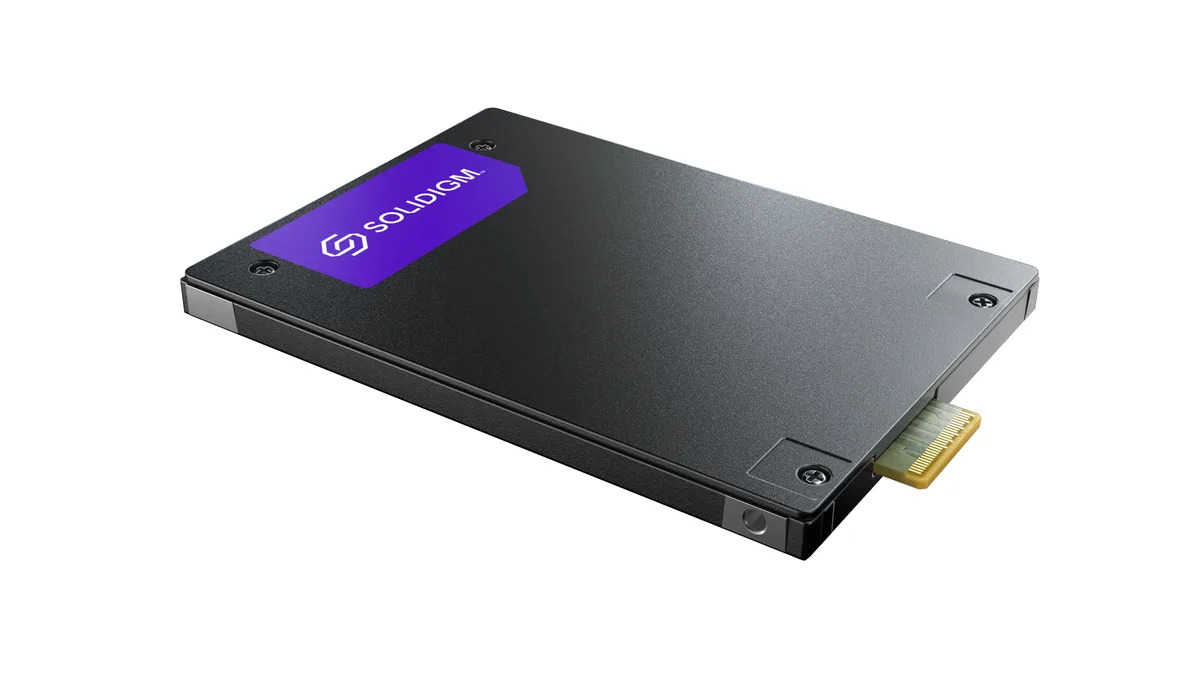

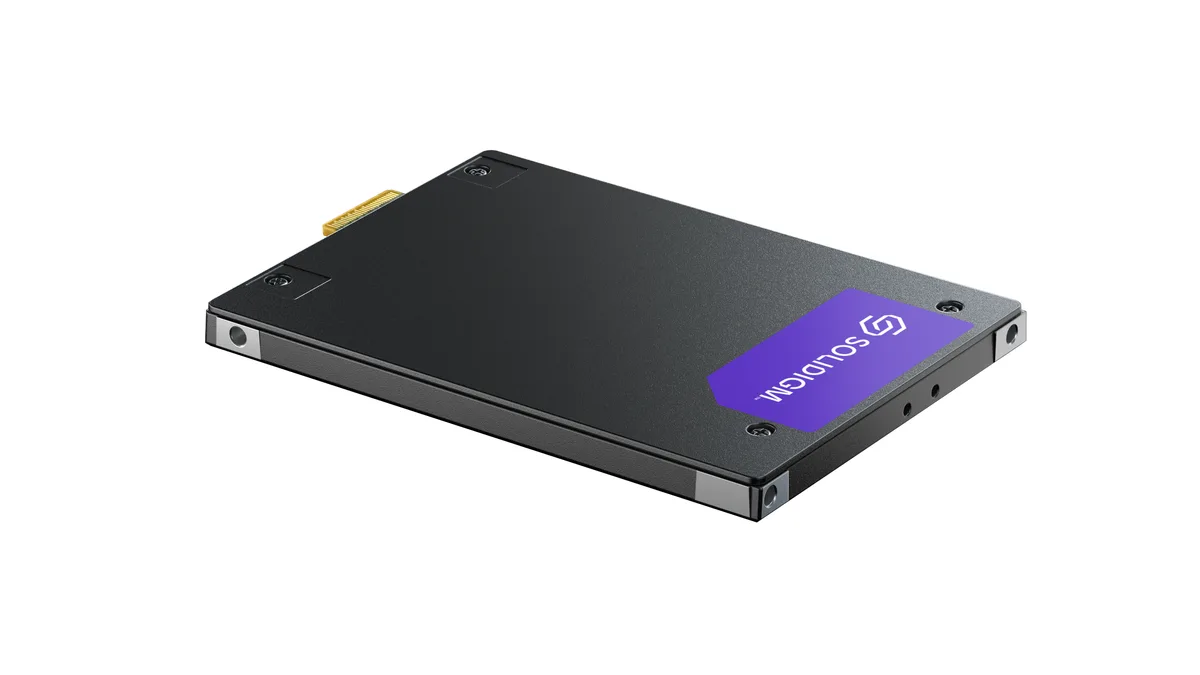

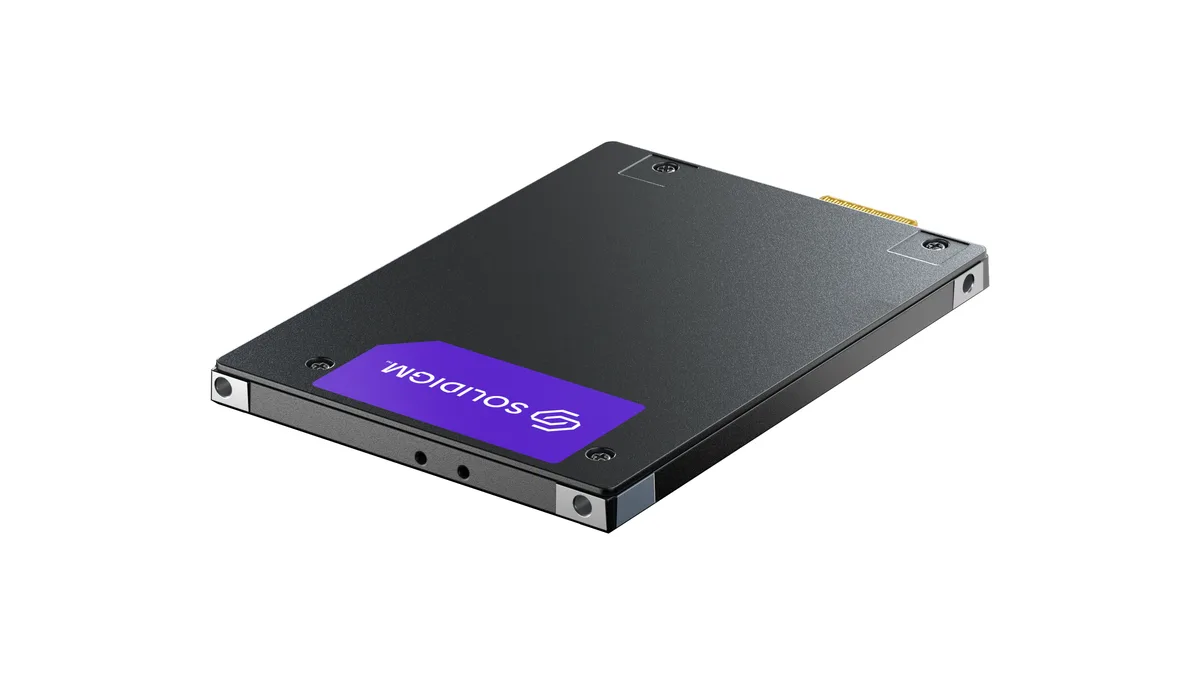

Solidigm D7-PS1010 7.68TB E3.S drive

This Solidigm D7-PS1010 is a 7.68TB enterprise SSD built for data-centre servers. It uses an E3.S 7.5mm form factor with a PCI-Express 5.0 x4 interface. The drive targets workloads that demand high throughput and FIPS-level security in a compact package.

Capacity and endurance envelope

The 7.68TB capacity provides substantial space for read-heavy datasets. Endurance is rated at 1 DWPD with 14 PBW of total writes. Sequential speeds reach up to 14500 MBps read and 10000 MBps write. Random performance delivers 3000000 IOPS read and 400000 IOPS write.

Thermals, noise and power profile

The drive operates between 0°C and 77°C with no moving parts, so it runs silently. Idle power draw is 5W and active consumption peaks at 23W. It withstands 1000 G shock and up to 3.13 GRMS vibration in non-operating conditions.

Highlights

  • Handles heavy read workloads with 3,000,000 random read IOPS
  • Sustains mixed workloads with 1,4500 MB/s sequential read and 10,000 MB/s write
  • Fits dense servers in E3.S 7.5 mm form factor
  • Protects sensitive data with FIPS security certification
  • Delivers 1 DWPD endurance over 14 PBW total bytes written

Specifications

BrandSolidigm
ModelD7-PS1010
Part NumberSB5PHA7X076TOF1
Form FactorE3.S 7.5mm
Capacity7.68TB
Memory Components176L TLC 3D NAND
InterfacePCI-Express 5.0
Max Sequential ReadUp to 14500 MBps
Max Sequential WriteUp to 10000 MBps
4KB Random Read3000000 IOPS (4K Blocks)
4KB Random Write400000 IOPS (4K Blocks)
Endurance1 DWPD / 14 PBW
MTBF2,500,000 hours
SecurityFIPS
Power Consumption (Idle)5W
Power Consumption (Active)23W
Operating Temperature0°C to 77°C
Max Shock Resistance1,000 G (Max) at 0.5 msec
Max Vibration ResistanceOperating: 2.17 GRMS (5 - 700 Hz) Max
Non-Operating: 3.13 GRMS (5 - 800 Hz) Max
Weight110g +/- 10g
Shipping weight0.17 kg
Package size140 × 110 × 17 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the E3.S 7.5mm PCIe 5.0 x4 interface work in my existing E3.S backplane and caddy?

The drive uses the standard E3.S 7.5mm form factor with a PCIe 5.0 x4 edge connector, so it fits any compliant E3.S slot and backplane.

Which LED or SMART attribute confirms the 14500 MBps sequential read and 3000000 IOPS random read are active?

The drive reports PCIe link speed and width in SMART log page 02h; a Gen5 x4 link plus rising Media Units Read and temperature below 77°C show it is operating at rated throughput.

Does the single pack include only the 7.68TB drive or are mounting screws and a heatsink also supplied?

The generic single pack contains the 7.68TB E3.S 7.5mm SSD only; mounting screws, caddy rails and any required heatsink must be sourced separately.
